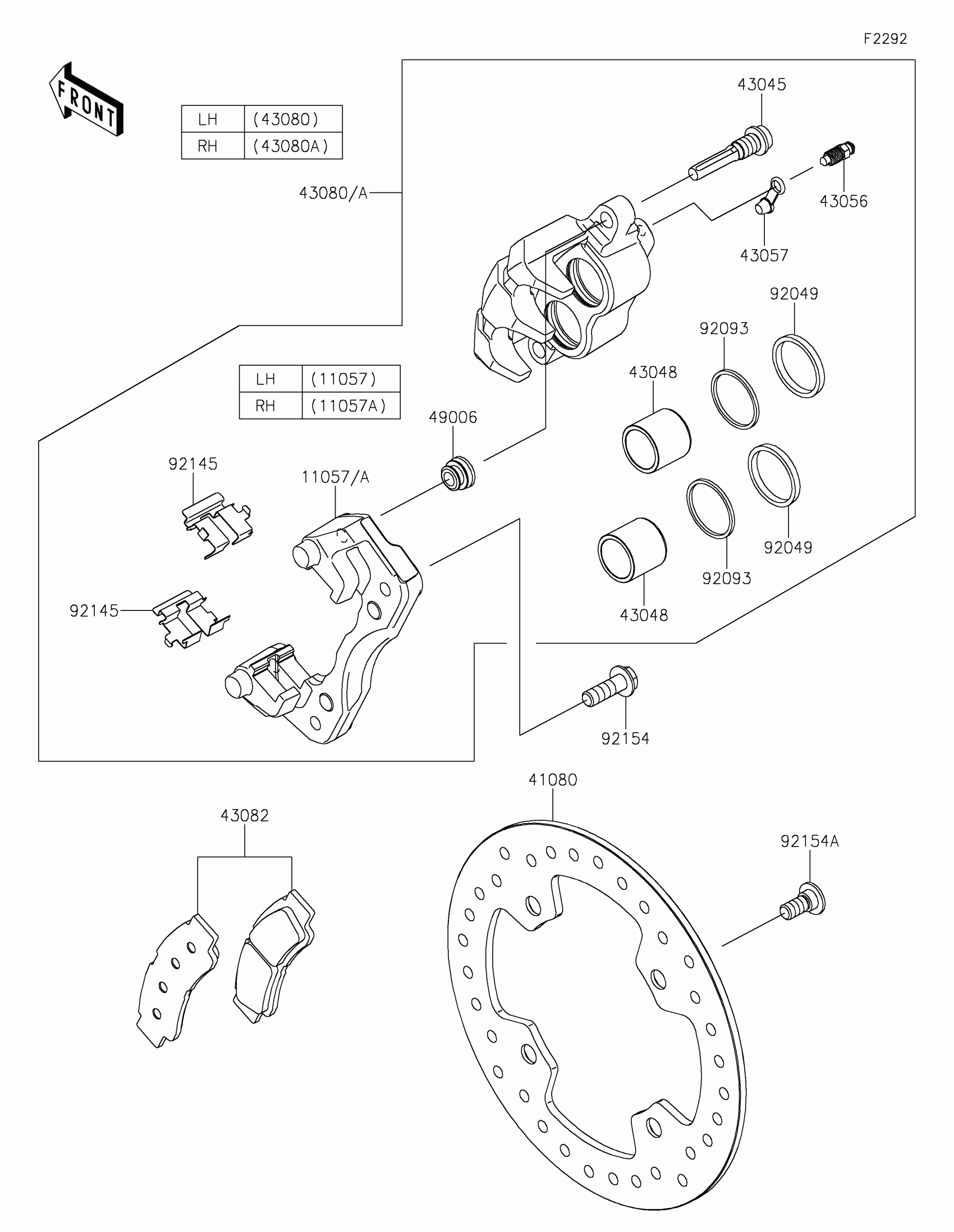

Kawasaki Teryx KRX®4 1000 SE Front Brake Diagram

Description

Price

11057

BRACKET,LH

11057-2897

$48.38

11057A

BRACKET,RH

11057-2898

$48.38

41080

DISC,BRAKE

41080-0712

$71.71

43045

SHAFT-CALIPER

43045-0018

$17.26

43048

PISTON-CALIPER

43048-0036

$22.18

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,FR,LH

43080-0221

$223.35

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0222

$223.35

43082

PAD-ASSY-BRAKE

43082-0196

$135.33

49006

BOOT

49006-0624

$3.73

92049

SEAL-OIL

92049-0765

Unavailable

92093

SEAL

92093-0613

$5.28

92145

SPRING

92145-1903

$24.72

92154

BOLT,FLANGED,10X30

92154-0543

$9.43

92154A

BOLT,SOCKET,10X23

92154-0713

$4.10
