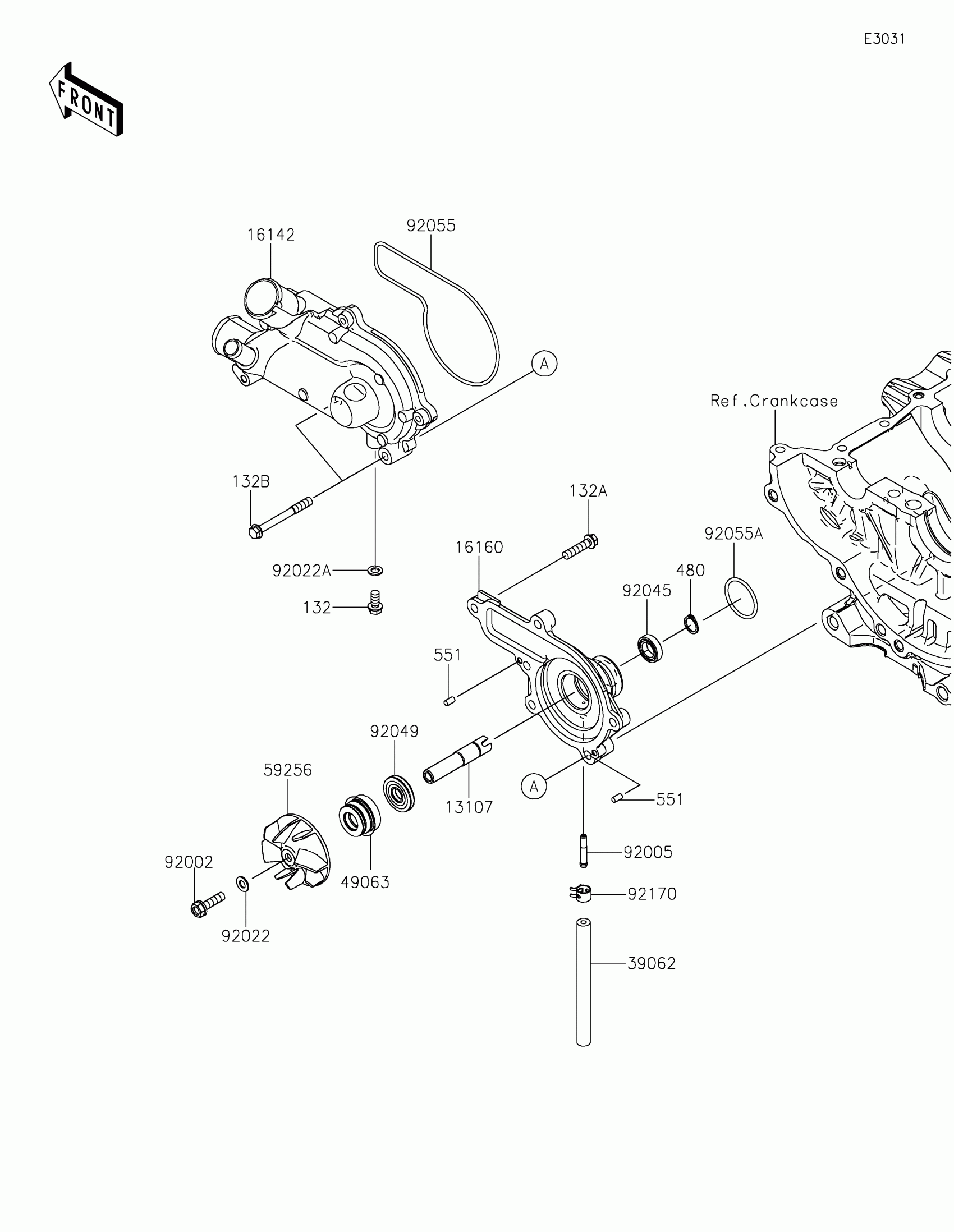

Kawasaki Teryx KRX®4 1000 eS Water Pump Diagram

Description

Price

13107

SHAFT,WATER PUMP BODY

13107-0894

$19.31

16142

COVER-PUMP,WATER

16142-0756

$132.71

16160

BODY,WATER PUMP

16160-0833

$193.82

39062

HOSE-COOLING,4X10X110

39062-0847

$1.76

49063

SEAL-MECHANICAL

49063-1055

$16.33

59256

IMPELLER

59256-0017

$37.62

92002

BOLT,6X22

92002-1154

$3.57

92005

FITTING

92005-1264

$7.44

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,6.2X11X1

92022-304

$2.76

92045

BEARING-BALL,6801P

92045-0918

$16.95

92049

SEAL-OIL

92049-0778

$25.64

92055

RING-O,WATER PUMP COVER

92055-0921

$9.84

92055A

RING-O,28.7X2.4

92055-0922

$3.55

92170

CLAMP

92170-1493

$3.81

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132B

BOLT-FLANGED-SMALL,6X55

132BA0655

$1.98

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

551

PIN-DOWEL,4X8

551A0408

$0.68
