2024 Kawasaki Teryx KRX®4 1000 Es Crankcase Diagram

← All diagrams

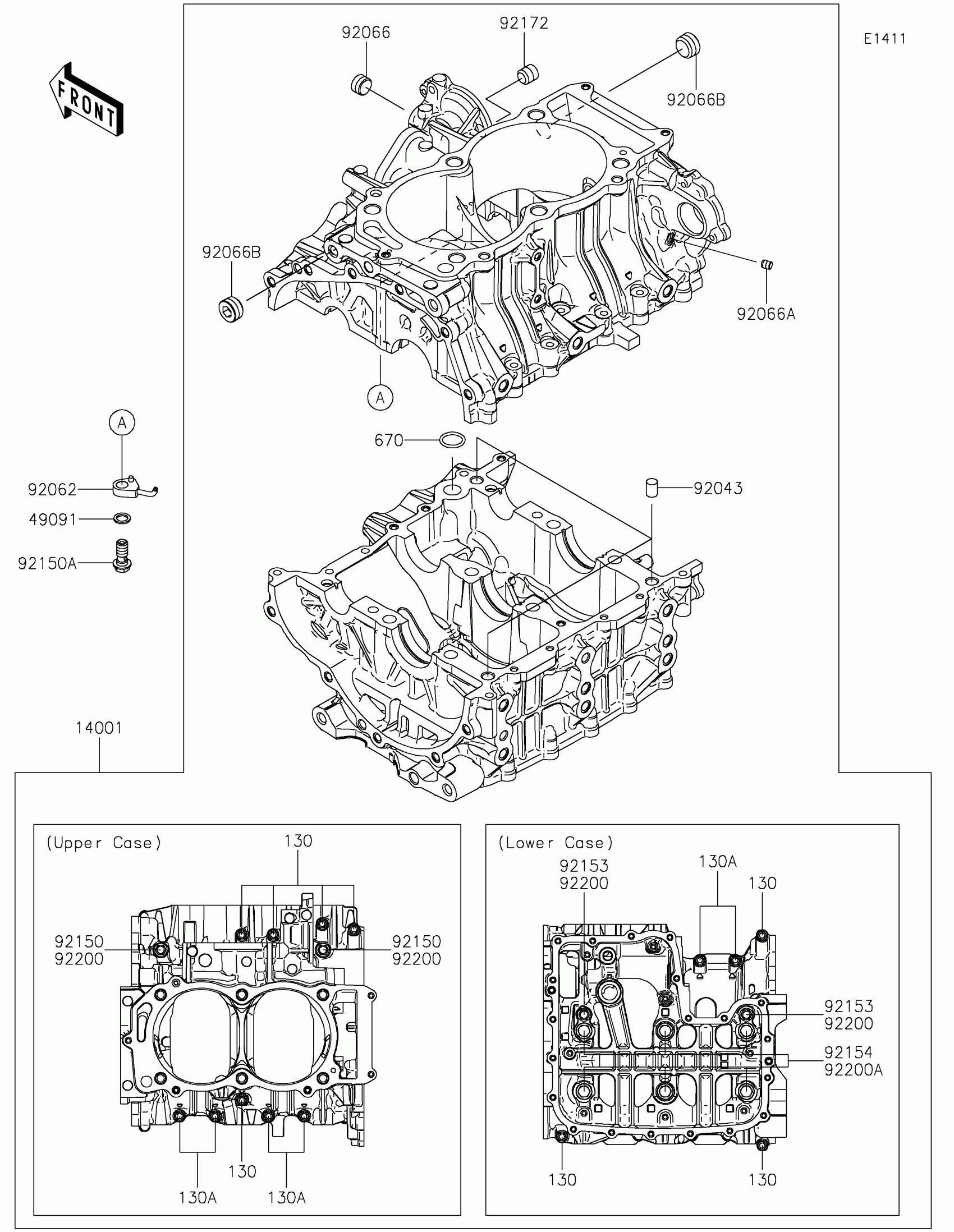

Find the part on the Crankcase diagram for your 2024 Kawasaki Teryx KRX®4 1000 Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx KRX®4 1000 Es Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14001

SET-CRANKCASE

14001-0693

1

$1,616.89

In stock

49091

1

$1.81

In stock

92043

PIN,10X14

92043-1506

1

$2.66

In stock

92062

NOZZLE,OIL JET

92062-0566

1

$52.36

In stock

92066

PLUG

92066-0836

1

$4.32

In stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066B

PLUG

92066-3779

1

$5.07

In stock

92150

BOLT,8X70

92150-1483

1

$7.36

In stock

92150A

BOLT,BANJO,10X23

92150-1641

1

$11.26

In stock

92153

BOLT,FLANGED,8X90

92153-1632

1

$7.90

In stock

92154

BOLT

92154-3912

1

$11.53

In stock

92172

SCREW

92172-1266

1

$8.76

In stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,11.5X20.5X3.2

92200-0727

1
Out of stock

130

BOLT-FLANGED,6X55

130CA0655

1
Out of stock

130A

BOLT-FLANGED,6X45

130CB0645

1

$1.66

In stock

670

O RING,18MM

670D2018

1

$1.61

In stock
