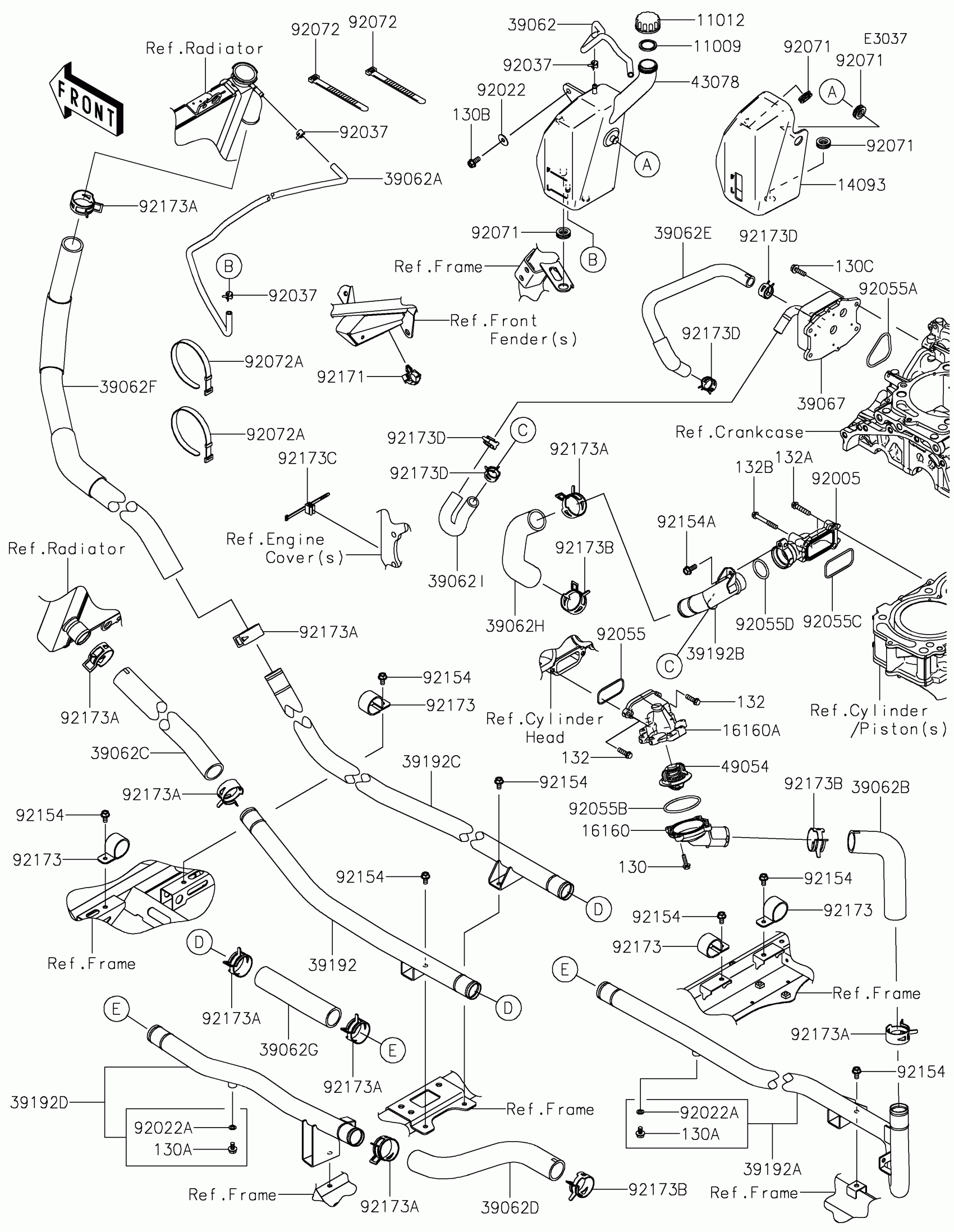

Kawasaki Teryx KRX®4 1000 eS Special Edition Water Pipe Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
14093
COVER,RESERVOIR
14093-0847
$7.57
16160
BODY
16160-0805
$56.95
16160A
BODY
16160-0806
$41.41
39062
HOSE-COOLING,OVERFLOW
39062-0830
$7.72
39062A
HOSE-COOLING,RAD-RESERVOIR
39062-0831
$15.64
39062B
HOSE-COOLING,ENGINE-PIPE(RH)
39062-0833
$15.64
39062C
HOSE-COOLING,RADIATOR-PIPE(LH)
39062-0835
$53.78
39062D
HOSE-COOLING,PIPE(LH)-W/PUMP
39062-0836
$21.15
39062E
HOSE-COOLING,OIL COOLER-W/PUMP
39062-0838
$19.80
39062F
HOSE-COOLING,RADIATOR-PIPE(RH)
39062-0870
$78.19
39062G
HOSE-COOLING,PIPE-WATER JOINT
39062-0935
$9.72
39062H
HOSE-COOLING,W/PUMP-ENGINE
39062-0936
$15.24
39062I
HOSE-COOLING,ENGINE-OIL COOLER
39062-0937
$8.40
39067
COOLER-OIL
39067-0027
$351.78
39192
PIPE-WATER,FR(LH)
39192-0684
$63.74
39192A
PIPE-WATER,RR(RH)
39192-0686
$75.99
39192B
PIPE-WATER
39192-0688
$19.26
39192C
PIPE-WATER,FR(RH)
39192-0699
$57.43
39192D
PIPE-WATER,RR(LH)
39192-0701
$50.23
43078
RESERVOIR
43078-0602
$92.40
49054
THERMOSTAT
49054-0004
$59.01
92005
FITTING
92005-1432
$45.64
92022
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92022A
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-1461
$3.88
92055
RING-O,YP 27.6 57.6 1.9
92055-0021
$3.73
92055A
RING-O,46.4X3.1
92055-0752
$4.41
92055B
RING-O,53.5X2.6
92055-0831
$7.85
92055C
RING-O,FITTING
92055-0923
$6.45
92055D
RING-O
92055-1726
$3.16
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92154
BOLT,FLANGED,6X12
92154-1195
$1.48
92154A
BOLT,FLANGED-SMALL,6X16
92154-1893
$4.69
92171
CLAMP,BRAKE HOSE
92171-0316
$3.88
92173
CLAMP
92173-1204
$3.86
92173A
CLAMP,28.6MM
92173-1205
$4.92
92173B
CLAMP,33.4MM
92173-1981
$5.31
92173C
CLAMP
92173-2089
$2.82
92173D
CLAMP
92173-2285
$4.60
130
BOLT-FLANGED,5X18
130BA0518
$1.46
130A
BOLT-FLANGED,6X10
130BA0610
$1.20
130B
BOLT-FLANGED,6X14
130BA0614
$1.20
130C
BOLT-FLANGED,6X20
130CA0620
$1.70
132
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132A
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
132B
BOLT-FLANGED-SMALL,6X45
132BA0645
$4.45
