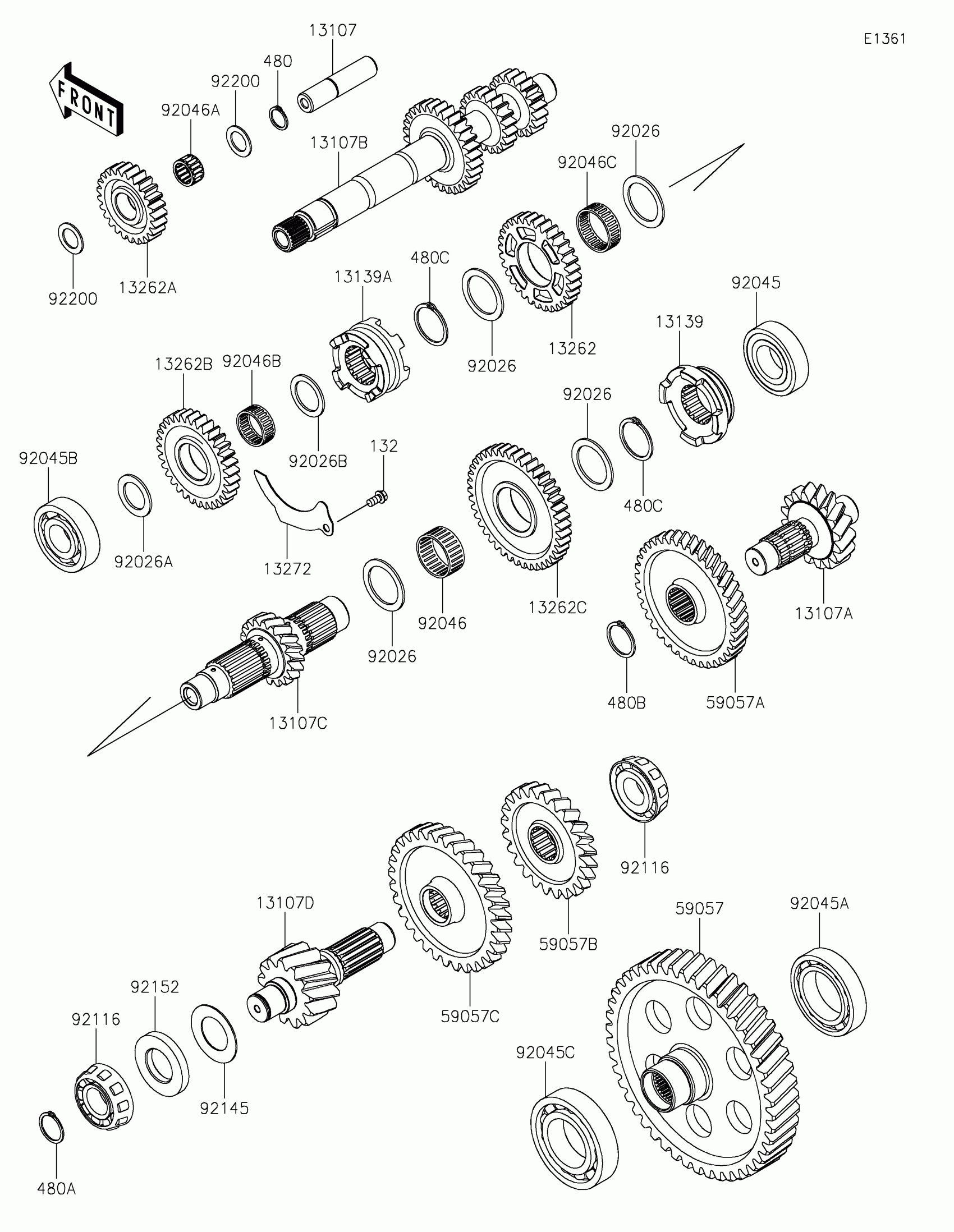

Kawasaki Teryx KRX®4 1000 eS Special Edition Transmission Diagram

#

Description
Price

13107

SHAFT,REVERSE IDLER

13107-0879

$41.60

13107A

SHAFT,3RD,16T

13107-0900

$201.06

13107B

SHAFT,INPUT

13107-0931

$447.71

13107C

SHAFT,2ND,18T

13107-0932

$240.76

13107D

SHAFT,4TH,13T

13107-0937

$266.52

13139

SHIFTER,LOW,19T

13139-0030

$129.03

13139A

SHIFTER,HIGH&REV,19T

13139-0037

$121.11

13262

GEAR,REV,32T

13262-1364

$99.03

13262A

GEAR,REVERSE IDLER,25T

13262-1567

$68.82

13262B

GEAR,HIGH,32T

13262-1568

$135.65

13262C

GEAR,LOW,42T

13262-1569

$179.82

13272

PLATE,OIL

13272-2570

$1.27

59057

GEAR-HELICAL,46T

59057-0029

$205.90

59057A

GEAR-HELICAL,38T

59057-0031

$135.45

59057B

GEAR-HELICAL,24T

59057-0037

$126.23

59057C

GEAR-HELICAL,32T

59057-0038

$166.14

92026

SPACER,35.2X47X2

92026-0765

$10.78

92026A

SPACER,25.2X38X2

92026-0856

$8.31

92026B

SPACER,28X38X2

92026-1299

Unavailable

92045

BEARING-BALL,6206Z

92045-0902

$15.80

92045A

BEARING-BALL,6009

92045-0903

$32.61

92045B

BEARING-BALL,6305ZUR3

92045-0926

$35.04

92045C

BEARING-BALL,TMB209

92045-0935

$39.74

92046

BEARING-NEEDLE,35X40X17

92046-0611

$16.03

92046A

BEARING-NEEDLE

92046-0634

$12.34

92046B

BEARING-NEEDLE

92046-0635

$11.61

92046C

BEARING-NEEDLE

92046-0636

$16.17

92116

BEARING-ROLLER,HC30305JRLFT

92116-0012

$21.36

92145

SPRING

92145-1837

$7.14

92152

COLLAR

92152-2526

$15.80

92200

WASHER,18.2X28X1.5

92200-0716

$2.44

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

480

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

480A

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480B

CIRCLIP

480J2900

$5.42

480C

CIRCLIP

480J3500

$2.25
