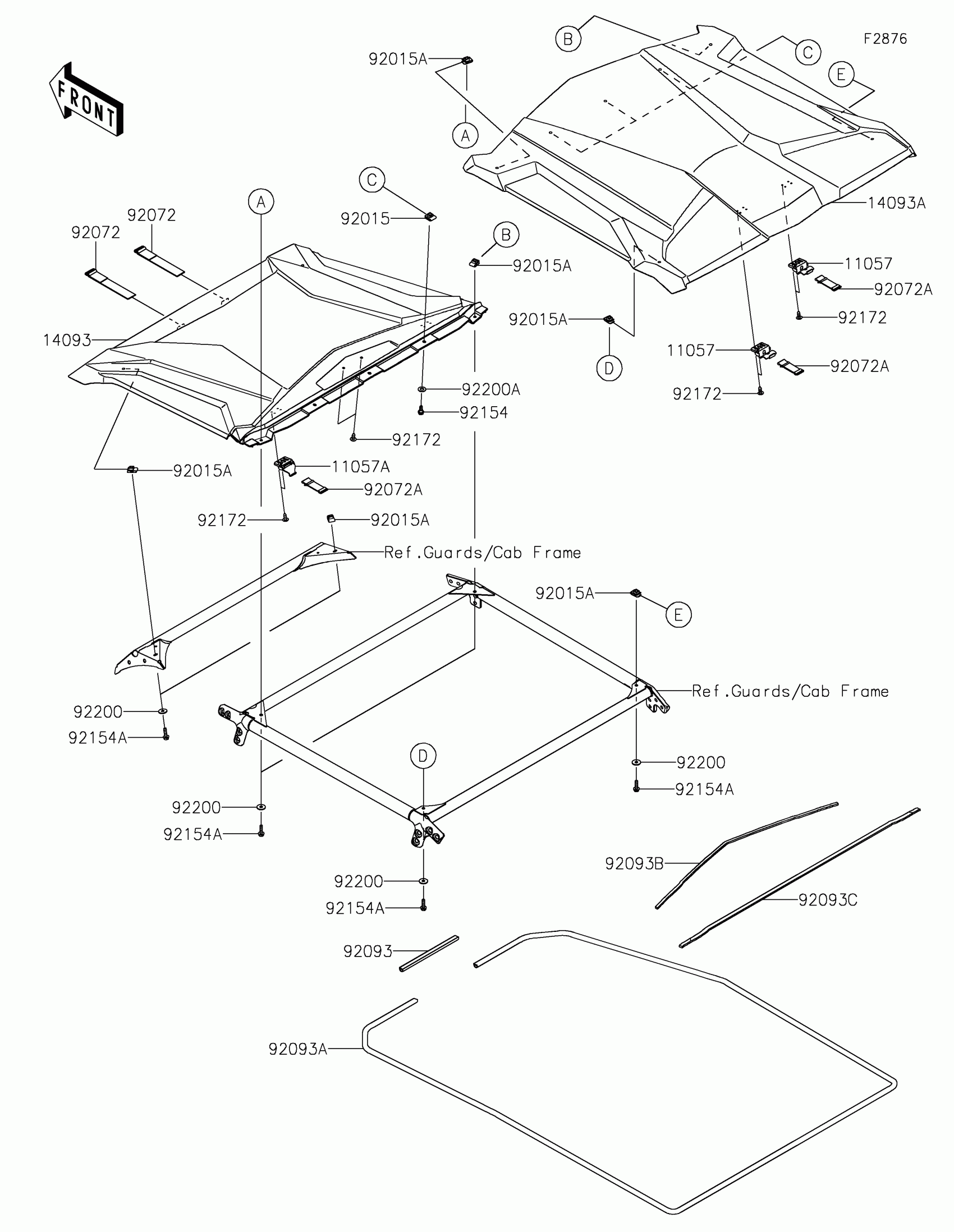

Kawasaki Teryx KRX®4 1000 eS Special Edition Sun Top Diagram

Description

Price

11057

BRACKET

11057-3701

$19.30

11057A

BRACKET

11057-7866

$25.52

14093

COVER,ROOF,FR

14093-1271

$310.16

14093A

COVER,ROOF,RR

14093-1272

$278.47

92015

NUT,CLAMP,6MM

92015-1531

$5.52

92015A

NUT,6MM

92015-1602

$7.34

92072

BAND

92072-0871

$6.35

92072A

BAND,TOOL

92072-1176

$15.60

92093

SEAL

92093-0767

$30.74

92093A

SEAL

92093-0768

$2.49

92093B

SEAL

92093-0769

$3.21

92093C

SEAL

92093-0770

$4.45

92154

BOLT,FLANGED,6X16

92154-0780

$5.05

92154A

BOLT,FLANGED,6X22

92154-1356

$1.48

92172

SCREW,6X16

92172-0284

$1.34

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

92200A

WASHER,8.5X18X1

92200-2284

$8.52
