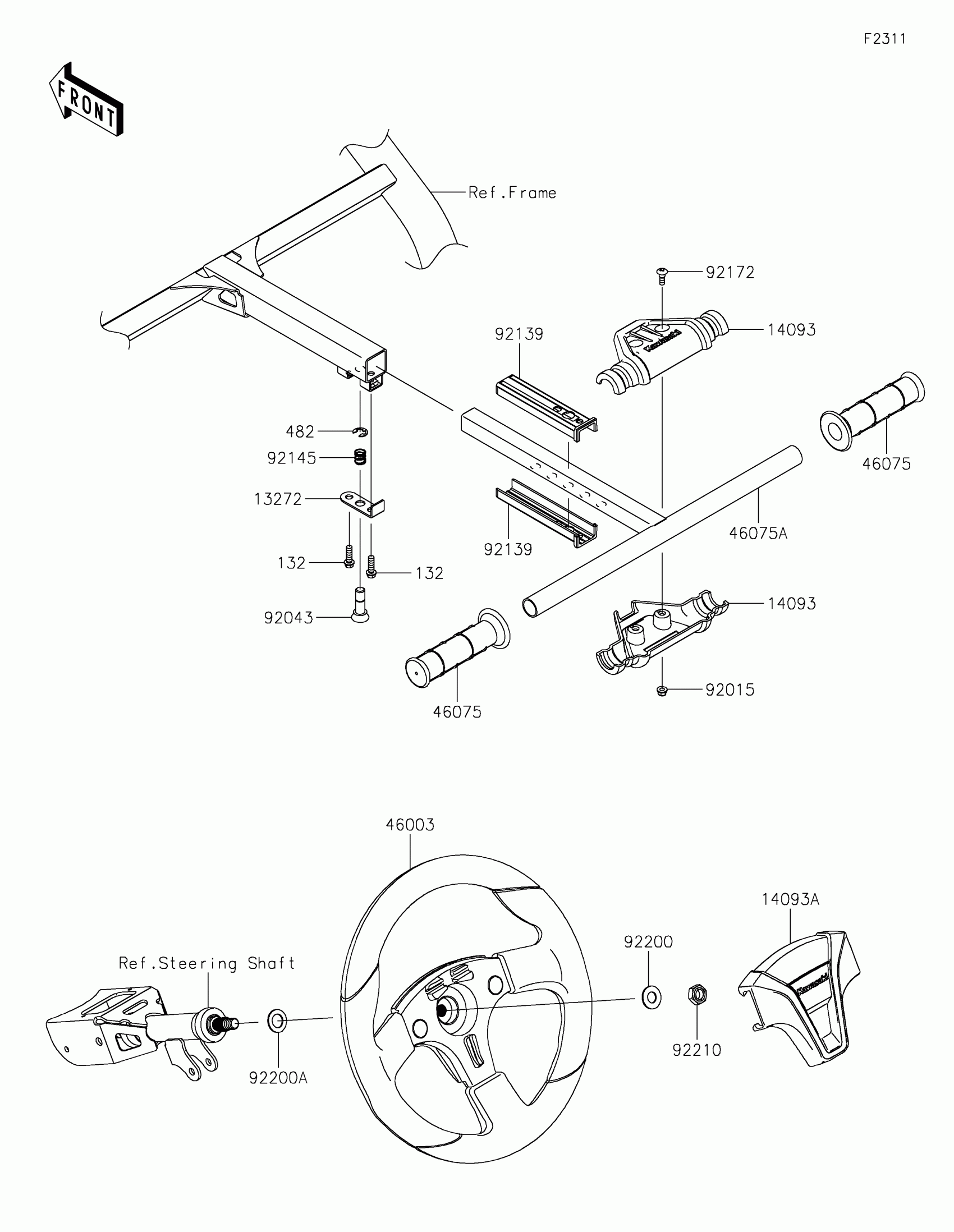

Kawasaki Teryx KRX®4 1000 eS Special Edition Steering Wheel Diagram

Description

Price

13272

PLATE

13272-3869

$2.59

14093

COVER,PASSENGER GRIP

14093-0802

$5.20

14093A

COVER,HANDLE

14093-0803

$22.69

46003

HANDLE

46003-0809

$111.50

46075

GRIP

46075-0065

$26.99

46075A

GRIP,PIPE

46075-0658

$22.27

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$3.29

92043

92043-7503

$3.73

92139

BUSHING

92139-1143

$3.95

92145

SPRING

92145-7507

$1.32

92172

SCREW,5MM

92172-0261

$2.34

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

92200A

WASHER,15X25X1.6

92200-0460

$3.27

92210

NUT,LOCK,12MM

92210-1249

$5.88

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63
