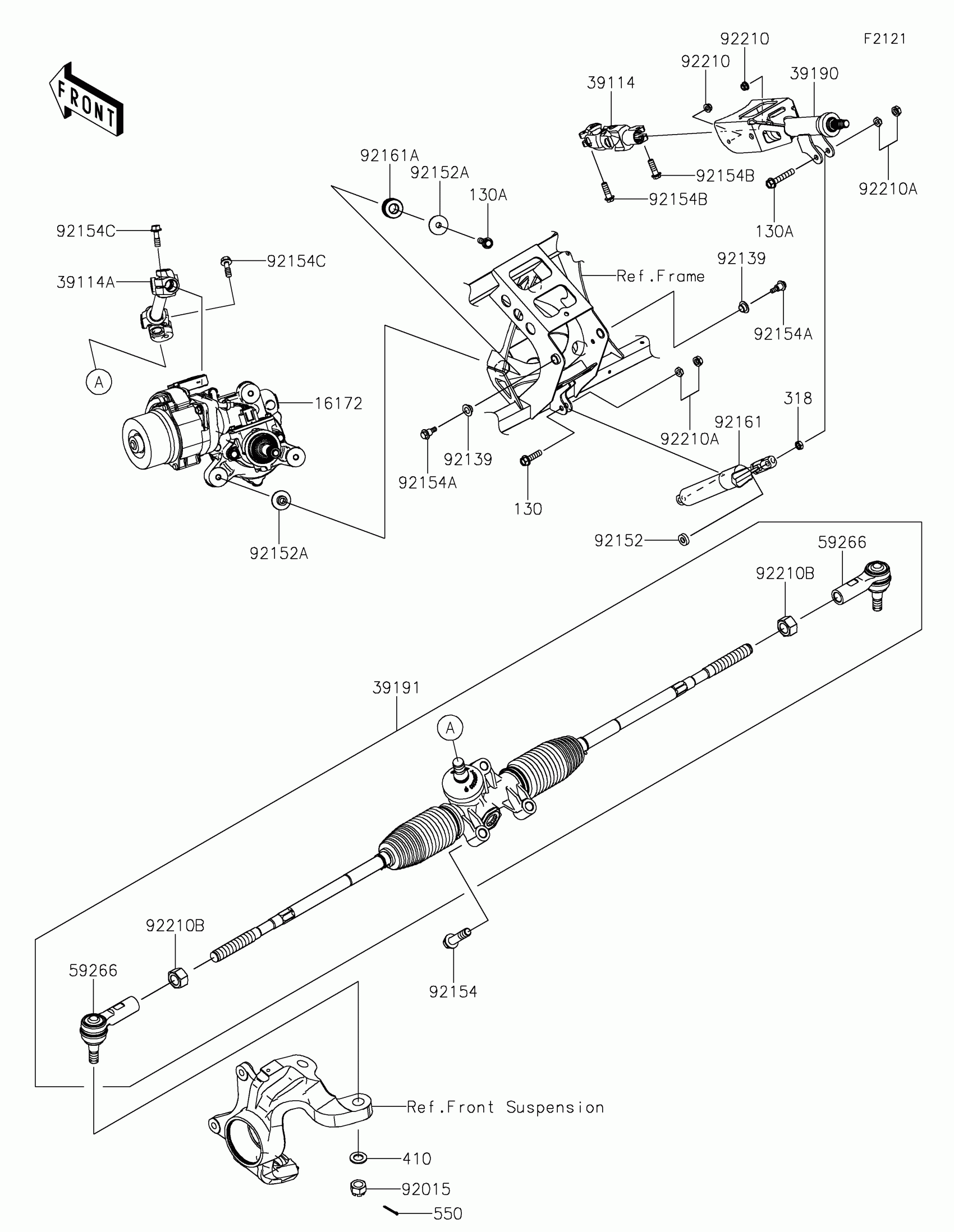

Kawasaki Teryx KRX®4 1000 eS Special Edition Steering Shaft Diagram

Description

Price

16172

ACTUATOR,EPS

16172-0043

$2,096.46

39114

SHAFT-COMP-STRG,UPP

39114-0024

$161.85

39114A

SHAFT-COMP-STRG,LWR

39114-0043

$161.85

39190

SHAFT-ASSY-STEERING

39190-0009

$236.68

39191

GEAR-ASSY-STEERING

39191-0040

$1,177.32

59266

JOINT-BALL

59266-0743

$39.95

92015

NUT,CASTLE,14MM

92015-1841

$6.39

92139

BUSHING

92139-0230

$4.10

92152

COLLAR,8.2X18X5

92152-1848

$4.98

92152A

COLLAR,8.5X30X10.6

92152-2149

$4.44

92154

BOLT,FLANGED,12X50

92154-1008

$5.99

92154A

BOLT,6X21.5

92154-1320

$2.05

92154B

BOLT,FLANGED,8X25

92154-2190

$3.59

92154C

BOLT,FLANGED,8X39

92154-7043

$8.97

92161

DAMPER,STEERING TILT

92161-2186

$52.44

92161A

DAMPER

92161-2187

$1.24

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210A

NUT,HARD LOCK,8MM

92210-0934

$4.34

92210B

NUT

92210-1903

$15.42

130

BOLT-FLANGED,8X30

130CA0830

$0.86

130A

BOLT-FLANGED,8X45

130CA0845

$0.95

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

550

PIN-COTTER,3.0X25

550AA3025

$0.59
