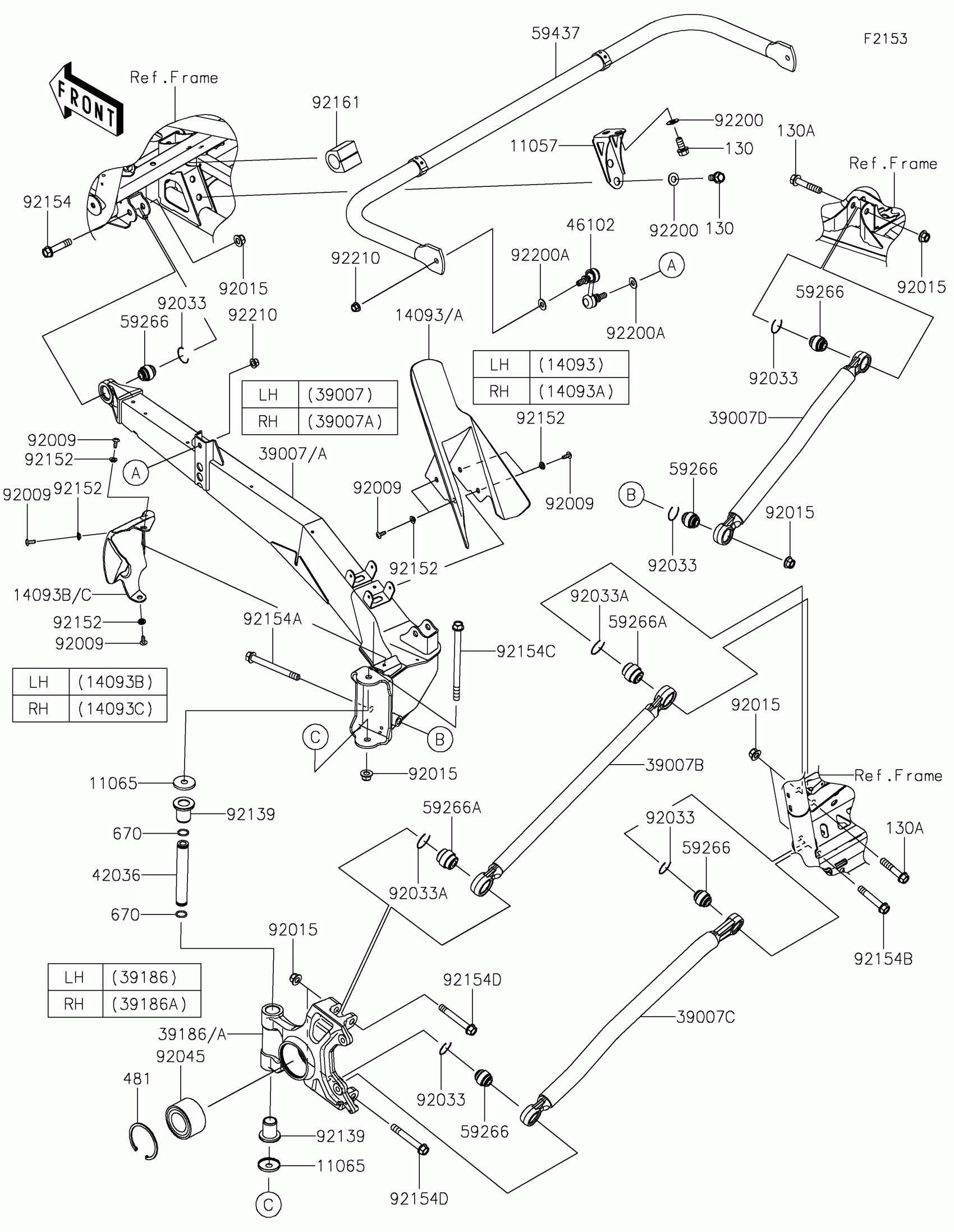

Kawasaki Teryx KRX®4 1000 eS Special Edition Rear Suspension Diagram

#

Description
Price

11057

BRACKET

11057-7670

$25.63

11065

CAP

11065-1305

$1.76

14093

COVER,RR SHOCK,LH

14093-0955

$19.14

14093A

COVER,RR SHOCK,RH

14093-0956

$16.51

14093B

COVER,TRAILING ARM,LH

14093-0994

$4.53

14093C

COVER,TRAILING ARM,RH

14093-0995

$4.53

39007

ARM-SUSP,TRAILING,LH,BLACK

39007-0468-10

$553.17

39007A

ARM-SUSP,TRAILING,RH,BLACK

39007-0469-10

$553.17

39007B

ARM-SUSP,CONTROL,RR,UPP,P.GOLD

39007-0470-66X

$241.26

39007C

ARM-SUSP,CONTROL,RR,LWR,P.GOLD

39007-0471-66X

$370.46

39007D

ARM-SUSP,CONTROL,FR,P.GOLD

39007-0472-66X

$320.45

39186

KNUCKLE,RR,LH

39186-0325

$235.31

39186A

KNUCKLE,RR,RH

39186-0326

$235.31

42036

SLEEVE,12.1X22X147

42036-0837

$50.10

46102

ROD,STABILIZER

46102-0638

$49.52

59266

JOINT-BALL

59266-0747

$13.62

59266A

JOINT-BALL

59266-0748

$22.14

59437

STABILIZER,RR

59437-0028

$185.95

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92033

RING-SNAP

92033-0802

$1.05

92033A

RING-SNAP

92033-0803

$1.05

92045

BEARING-BALL,40X74X42

92045-0920

$88.92

92139

BUSHING

92139-0938

$6.80

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,FLANGED,12X55

92154-0289

$7.52

92154A

BOLT,FLANGED,12X117

92154-0867

$9.68

92154B

BOLT,FLANGED,12X68

92154-3927

$7.64

92154C

BOLT,FLANGED,12X175

92154-3928

$13.62

92154D

BOLT,FLANGED,12X86

92154-3929

$6.67

92161

DAMPER

92161-2455

$4.98

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

92200A

WASHER,10.3X23X1.6

92200-0724

$2.84

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

130

BOLT-FLANGED,12X25

130CA1225

$5.91

130A

BOLT-FLANGED,12X60

130CA1260

$4.08

481

CIRCLIP-TYPE-C

481J7500

$4.15

670

O RING,18MM

670B2018

$1.08
