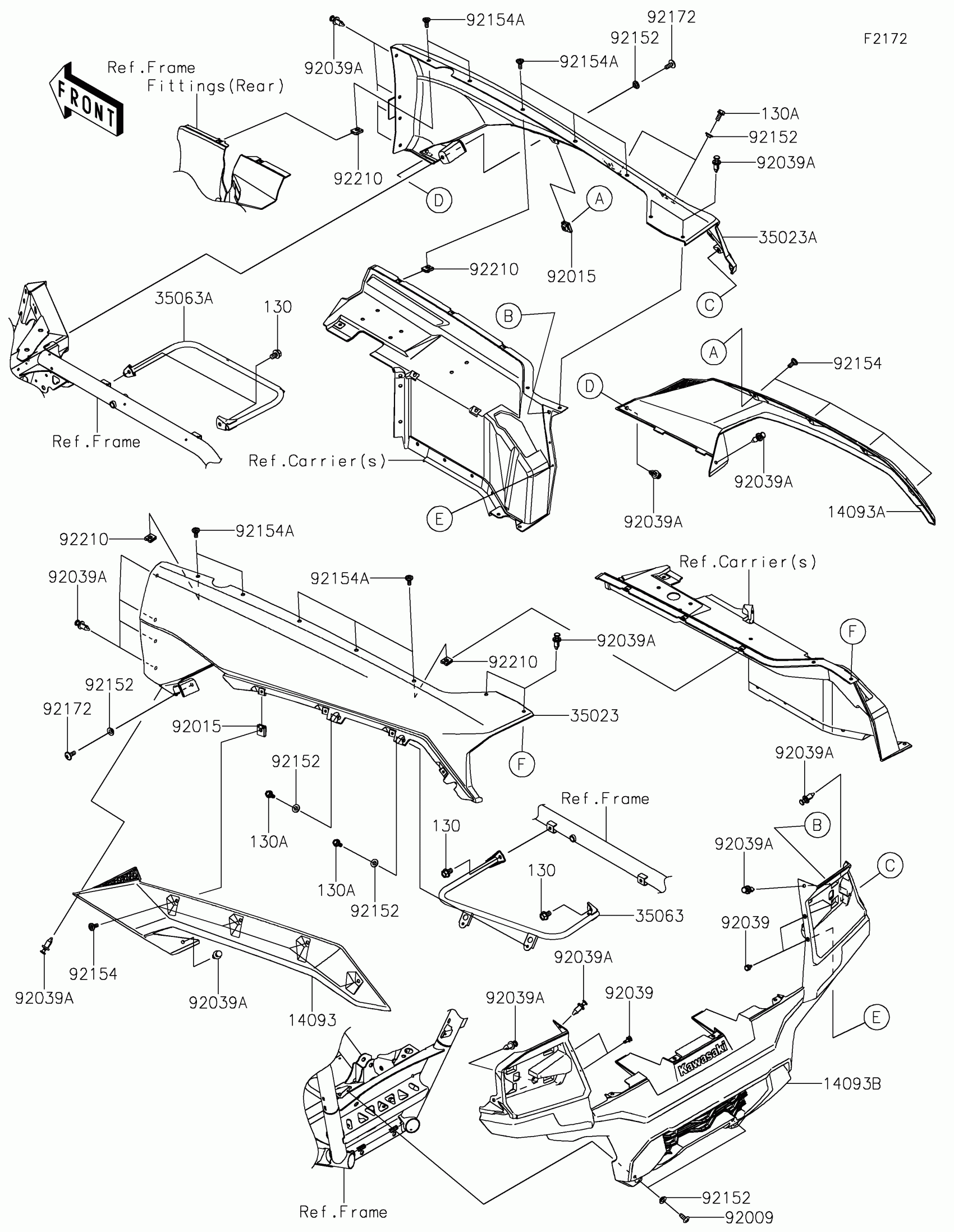

Kawasaki Teryx KRX®4 1000 eS Special Edition Rear Fender(s) Diagram

Description

Price

14093

COVER,FLAP,LH

14093-0796

$82.33

14093A

COVER,FLAP,RH

14093-0797

$82.33

14093B

COVER,TAIL

14093-0798

$239.01

35023

FENDER-REAR,LH,GRAYSTONE

35023-0463-56Z

$279.86

35023A

FENDER-REAR,RH,GRAYSTONE

35023-0464-56Z

Unavailable

35063

STAY,LH

35063-1462

$95.43

35063A

STAY,RH

35063-1463

$92.76

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT,CLAMP,6MM

92015-1678

$4.37

92039

RIVET

92039-0046

$3.11

92039A

RIVET

92039-0776

$0.80

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.75

92154

BOLT

92154-2474

$1.39

92154A

BOLT

92154-3957

$1.93

92172

SCREW,6X16

92172-0236

$0.85

92210

NUT

92210-1125

$3.78

130

BOLT-FLANGED,8X12

130BA0812

$0.92

130A

BOLT-FLANGED,6X14

130CA0614

$3.28
