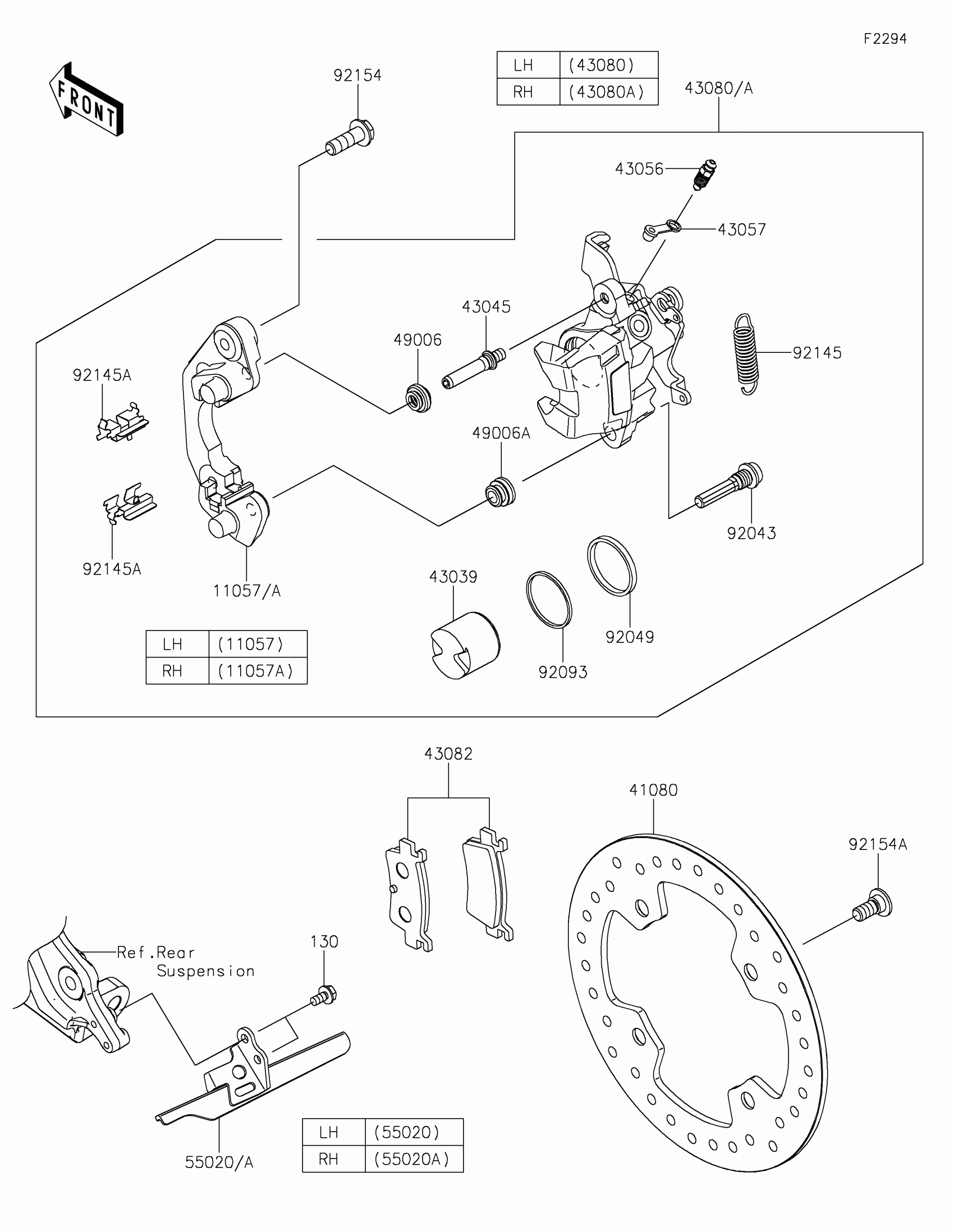

Kawasaki Teryx KRX®4 1000 eS Special Edition Rear Brake Diagram

#

Description
Price

11057

BRACKET,LH

11057-2900

$42.83

11057A

BRACKET,RH

11057-2902

$49.32

41080

DISC,BRAKE

41080-0712

$63.88

43039

PISTON-BRAKE

43039-0022

$72.24

43045

SHAFT-CALIPER

43045-0017

$16.17

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43080

CALIPER-SUB-ASSY,RR,LH

43080-0223

$282.68

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0224

$282.68

43082

PAD-ASSY-BRAKE

43082-0197

$93.79

49006

BOOT

49006-0566

$3.98

49006A

BOOT

49006-0624

$3.29

55020

GUARD,RR-CALIPER,LH

55020-2268

$10.12

55020A

GUARD,RR-CALIPER,RH

55020-2269

$10.12

92043

PIN

92043-0985

$11.39

92049

SEAL-OIL

92049-0830

$6.65

92093

SEAL

92093-0743

$6.65

92145

SPRING,RETURN,47MM

92145-1690

$3.98

92145A

SPRING

92145-1905

$10.82

92154

BOLT,FLANGED,10X30

92154-0543

$7.18

92154A

BOLT,SOCKET,10X23

92154-0713

$3.13

130

BOLT-FLANGED,6X12

130CA0612

$3.02
