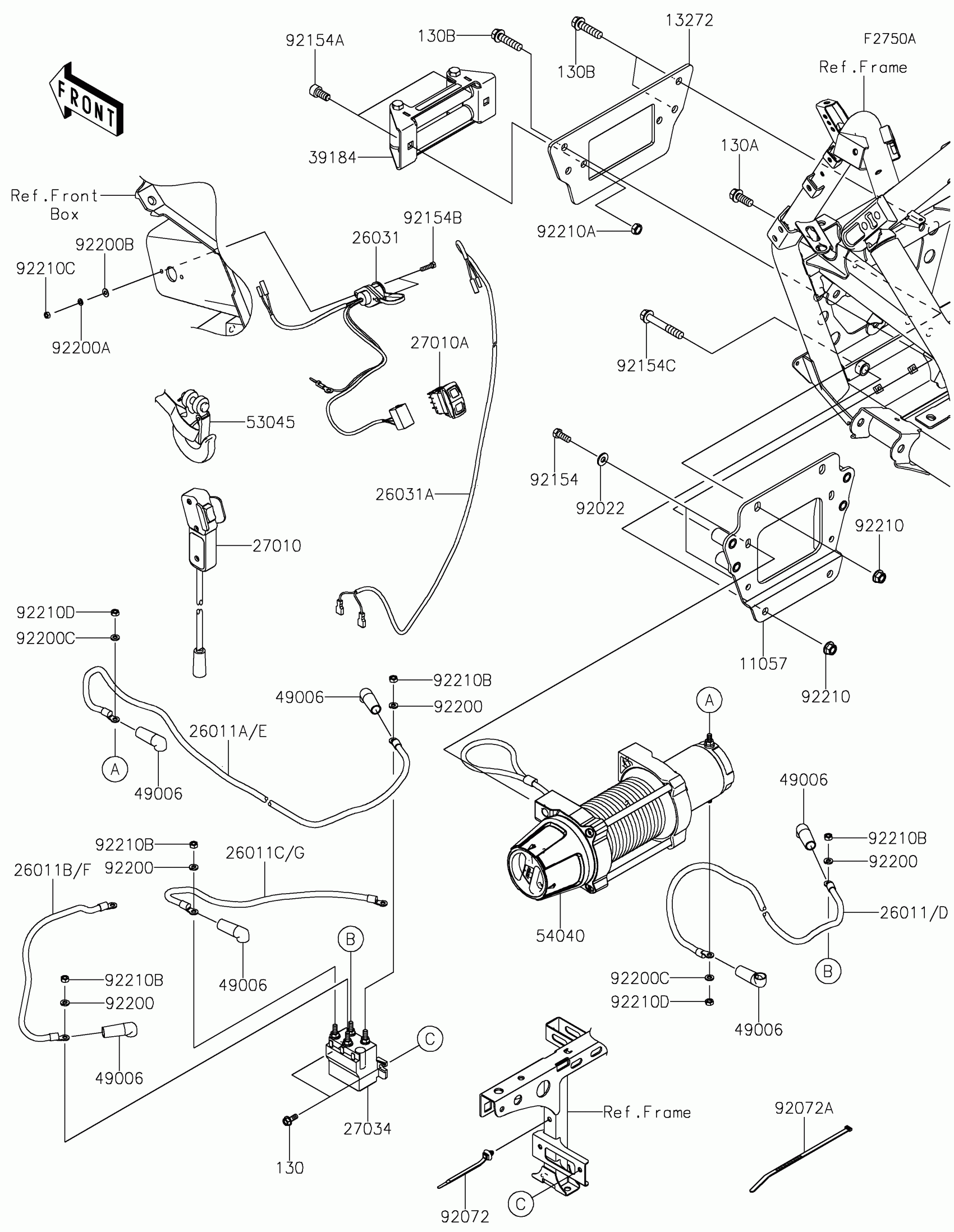

Kawasaki Teryx KRX®4 1000 eS Special Edition Other(Winch) Diagram

#

Description
Price

11057

BRACKET,WINCH

11057-3707

$118.34

13272

PLATE,FAIRLEAD

13272-2847

$7.49

26011

WIRE-LEAD,BLUE

26011-1993

$109.39

26011A

WIRE-LEAD,YELLOW

26011-1994

$112.43

26011B

WIRE-LEAD,RED

26011-1995

$29.29

26011C

WIRE-LEAD,BLACK

26011-1996

$43.51

26011D

WIRE-LEAD,BLUE

26011-2447

$109.39

26011E

WIRE-LEAD,YELLOW

26011-2448

$112.43

26011F

WIRE-LEAD,RED

26011-2449

$29.29

26011G

WIRE-LEAD,BLACK

26011-2450

$43.51

26031

HARNESS,CONTACTOR

26031-2843

$51.22

26031A

HARNESS,REMOTE

26031-3845

$73.27

27010

SWITCH,REMOTE

27010-0820

$129.74

27010A

SWITCH,ON/OFF

27010-0942

$51.74

27034

RELAY

27034-0008

$120.40

39184

BRACKET-ASSY

39184-0742

$61.78

49006

BOOT

49006-0601

$2.15

53045

HOOK-ASSY

53045-0028

$23.05

54040

WINCH

54040-0008

$374.44

92022

WASHER,8.2X19X2

92022-1533

$4.85

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,8X20

92154-1876

$2.19

92154A

BOLT,SOCKET,10X20

92154-1877

$3.12

92154B

BOLT,5X20

92154-1879

$2.36

92154C

BOLT,FLANGED,10X65

92154-4265

$3.92

92200

WASHER,6 LOCK

92200-1776

$0.97

92200A

WASHER,5 LOCK

92200-1777

$0.97

92200B

WASHER

92200-1778

$0.88

92200C

WASHER,6.4X12X1.8

92200-2358

$0.54

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

92210A

NUT,LOCK,M10

92210-1432

$1.34

92210B

NUT,M6X1.00

92210-1434

$1.90

92210C

NUT,M5X0.80

92210-1435

$1.05

92210D

NUT,6MM

92210-1792

$2.41

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED

130CA1025

$1.35

130B

BOLT-FLANGED,10X40

130CA1040

$2.29
