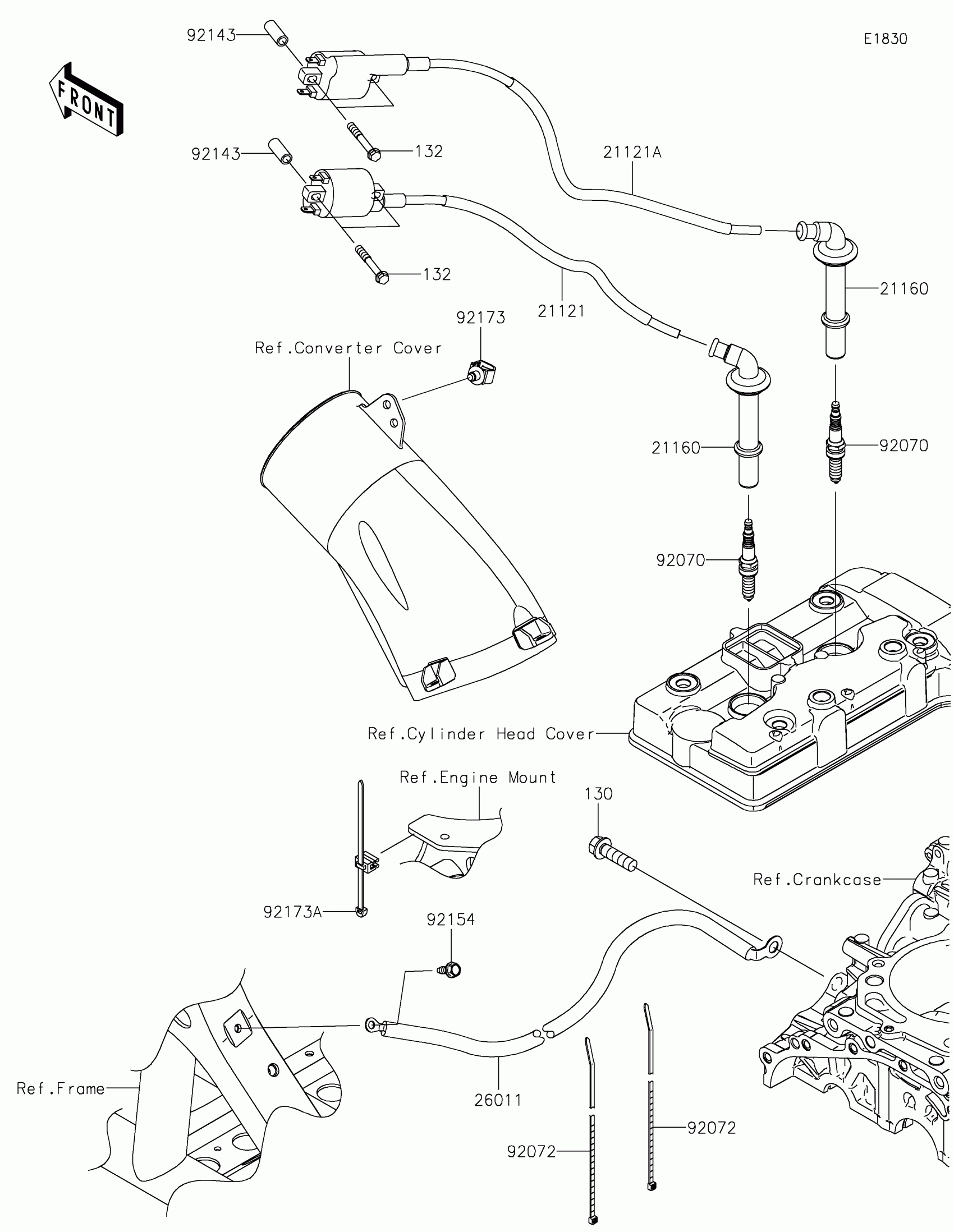

Kawasaki Teryx KRX®4 1000 eS Special Edition Ignition System Diagram

Description

Price

21121

COIL-IGNITION,#1

21121-0736

$70.03

21121A

COIL-IGNITION,#2

21121-0737

$71.34

21160

CAP-ASSY-PLUG

21160-0027

$50.62

26011

WIRE-LEAD

26011-2412

$38.48

92070

PLUG-SPARK,SILMAR9F9(NGK)

92070-0721

$18.74

92072

BAND,L=292.1

92072-3509

Unavailable

92143

COLLAR

92143-1046

$5.00

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-2089

$2.82

130

BOLT-FLANGED,10X35

130BA1035

$3.26

132

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45
