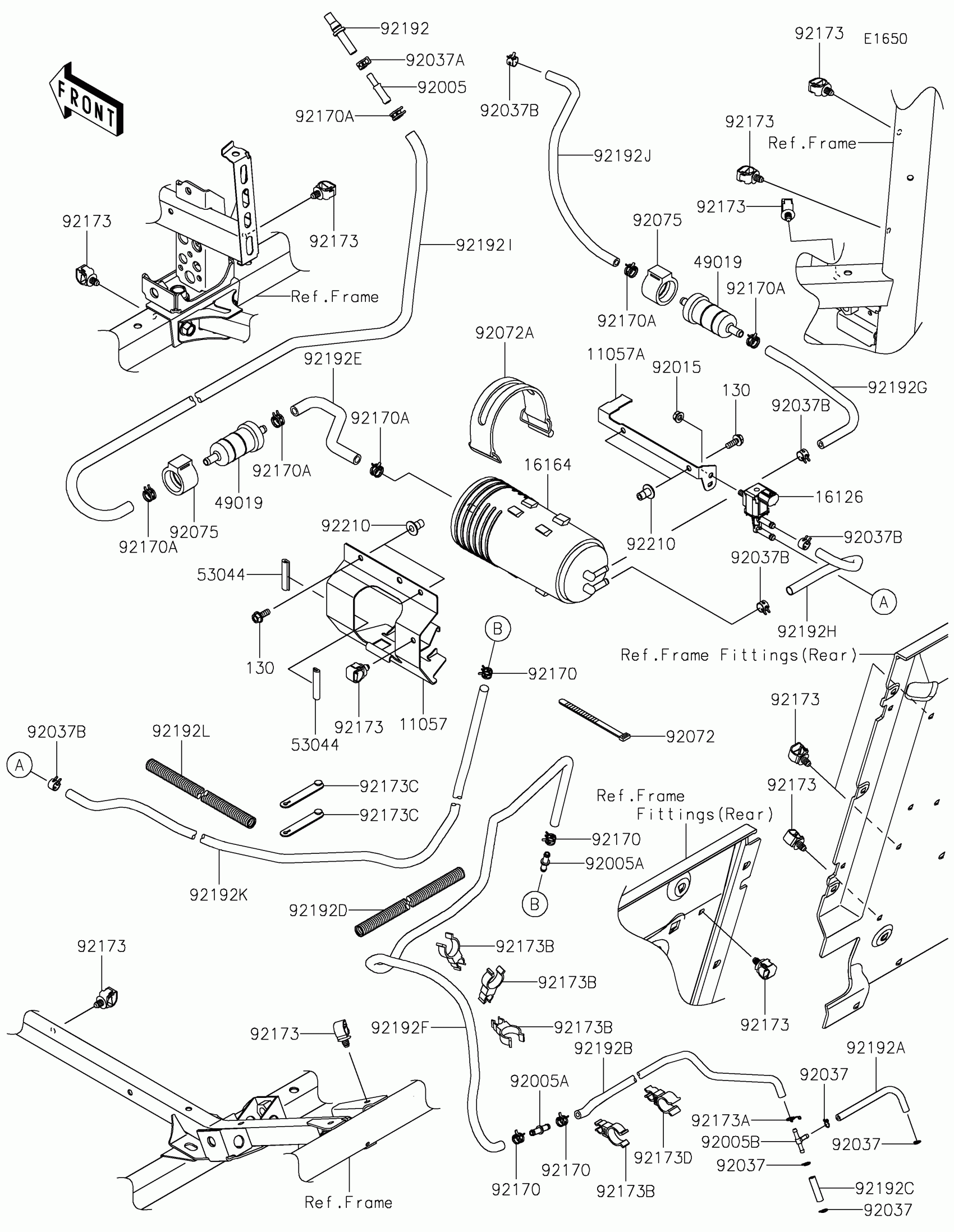

Kawasaki Teryx KRX®4 1000 eS Special Edition Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER HOLDER

11057-7673

$28.03

11057A

BRACKET,PURGE VALVE

11057-7674

$10.26

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0016

$205.69

49019

FILTER-FUEL

49019-0032

$22.97

53044

TRIM,L=40

53044-1320

$2.34

92005

FITTING

92005-0720

$3.62

92005A

FITTING

92005-0721

$9.09

92005B

FITTING

92005-1380

$16.65

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-1124

$6.11

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP

92037-2113

$1.03

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92170

CLAMP

92170-1493

$5.00

92170A

CLAMP

92170-2082

$0.84

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1568

$4.96

92173B

CLAMP,CLIP

92173-2000

$4.85

92173C

CLAMP

92173-2199

$1.48

92173D

CLAMP

92173-2287

$4.85

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192A

TUBE,3.5X7.5X125

92192-1497

$24.31

92192B

TUBE,L=450

92192-1612

$54.33

92192C

TUBE,THROTTLE BODY

92192-1992

$7.72

92192D

TUBE,CONVOLUTED,10.7X14.1X170

92192-2293

$11.32

92192E

TUBE,FILTER-CANISTER

92192-2571

$7.41

92192F

TUBE,PURGE VALVE-THROTTLE BODY

92192-2572

$90.56

92192G

TUBE,FILTER-CANISTER

92192-2573

$32.35

92192H

TUBE,CANISTER-PURGE VALVE

92192-2574

$23.21

92192I

TUBE,AIR BREATHER

92192-2575

$19.88

92192J

TUBE,CHECK VALVE-FILTER

92192-2576

$41.45

92192K

TUBE,PURGE VALVE-THROTTLE BODY

92192-2592

$86.09

92192L

TUBE,CONVOLUTED,10.7X14.1X530

92192-2593

$5.98

92210

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.95

130

BOLT-FLANGED,6X16

130BA0616

$1.20
