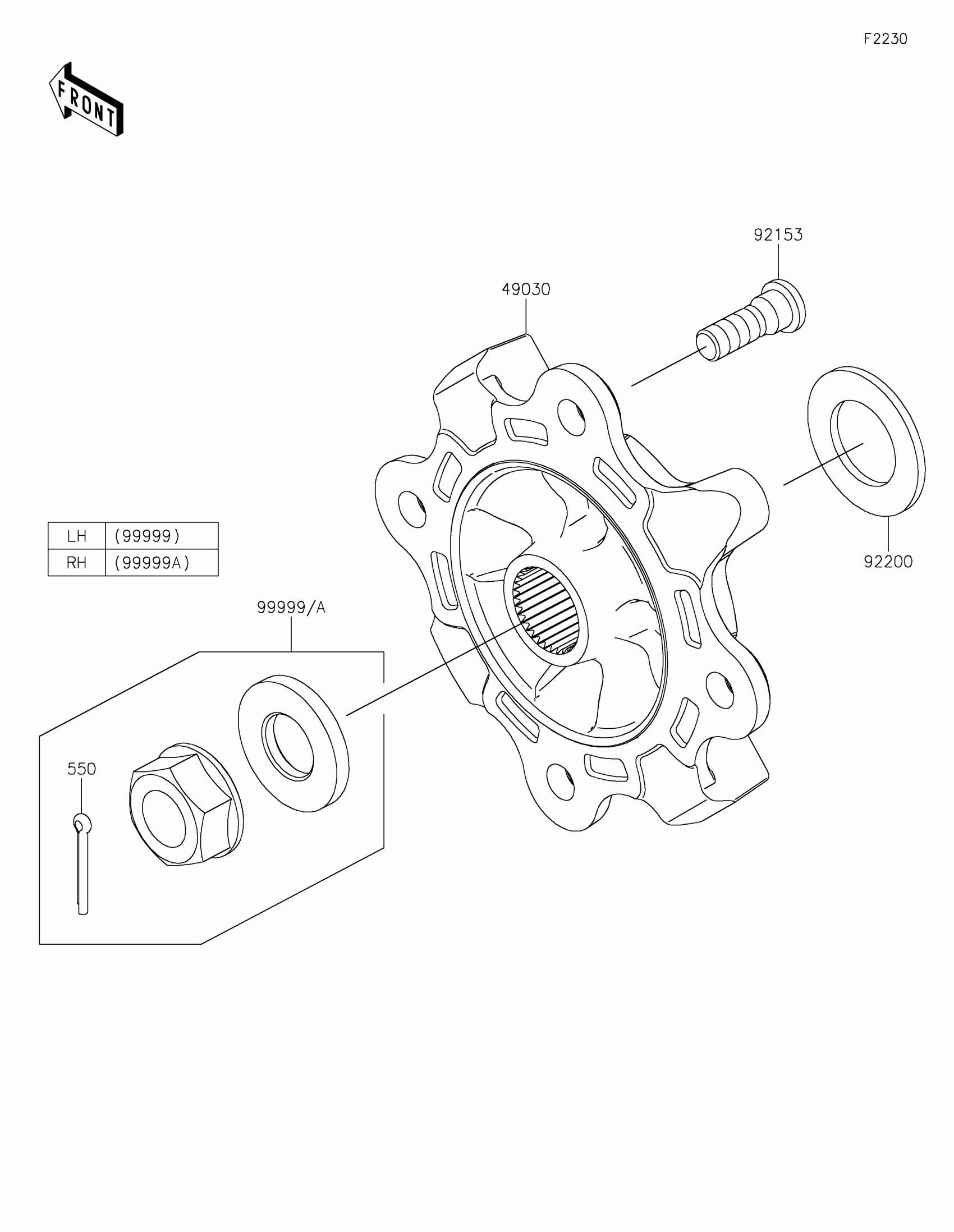

Kawasaki Teryx KRX®4 1000 eS Special Edition Front Hubs/Brakes Diagram

#

Description

Price

49030

HUB

49030-0566

$161.09

92153

BOLT,12MM

92153-1915

$5.05

92200

WASHER,33X56X3.5

92200-2332

$25.00

99999

KIT,LH AXLE NUT

99999-0726

$17.29

99999A

KIT,RH AXLE NUT

99999-0727

$17.29

550

PIN-COTTER,4.0X30

550AA4030

$1.80
