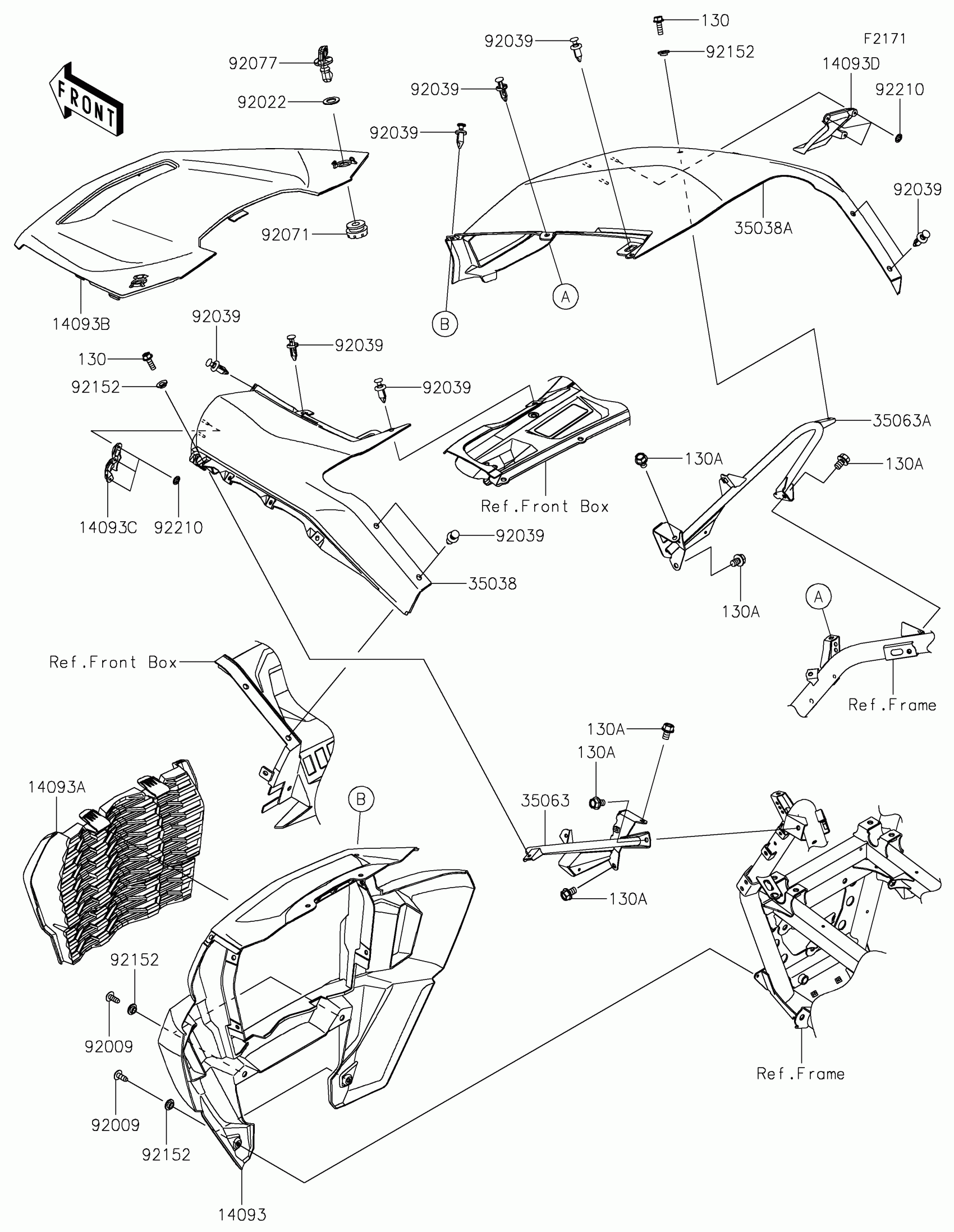

Kawasaki Teryx KRX®4 1000 eS Special Edition Front Fender(s) Diagram

Description

Price

14093

COVER,FR

14093-0804

$201.97

14093A

COVER,FR GRILL

14093-0810

$100.09

14093B

COVER,HOOD,M.F.R.GRAYSTONE

14093-0921-56Z

$373.59

14093C

COVER,LH

14093-0958

$3.82

14093D

COVER,RH

14093-0959

$3.82

35038

FENDER-FRONT,LH,GRAYSTONE

35038-0017-56Z

$349.53

35038A

FENDER-FRONT,RH,GRAYSTONE

35038-0018-56Z

$349.53

35063

STAY,LH

35063-1535

$99.54

35063A

STAY,RH

35063-1536

$99.54

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0746

$1.16

92077

KNOB

92077-0033

$3.04

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92210

NUT

92210-1796

$0.39

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X12

130BA0812

$0.95
