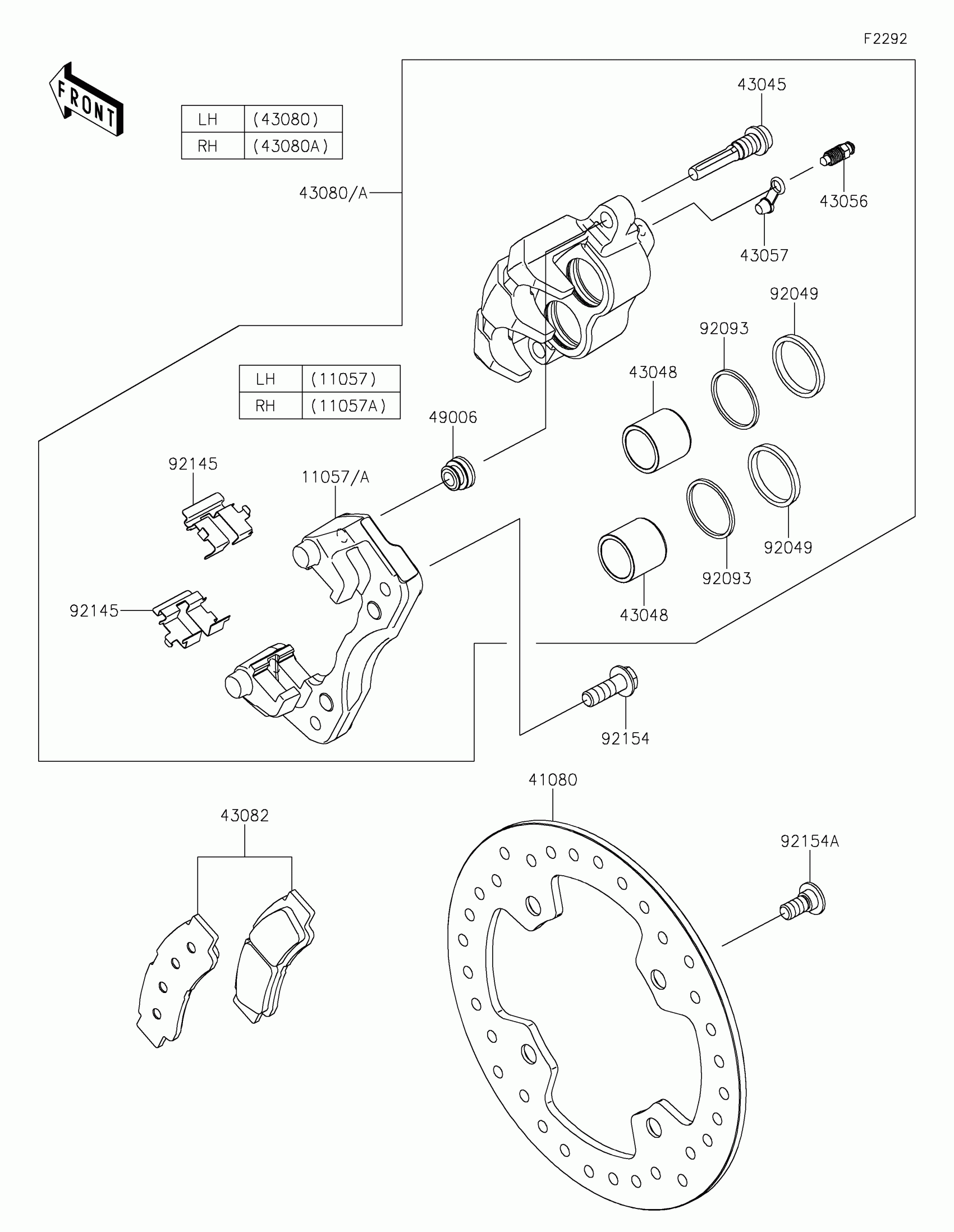

Kawasaki Teryx KRX®4 1000 eS Special Edition Front Brake Diagram

Description

Price

11057

BRACKET,LH

11057-2897

$49.32

11057A

BRACKET,RH

11057-2898

$49.32

41080

DISC,BRAKE

41080-0712

$65.40

43045

SHAFT-CALIPER

43045-0018

$13.56

43048

PISTON-CALIPER

43048-0036

$20.78

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.98

43080

CALIPER-SUB-ASSY,FR,LH

43080-0221

$228.08

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0222

$228.08

43082

PAD-ASSY-BRAKE

43082-0196

$132.79

49006

BOOT

49006-0624

$3.29

92049

SEAL-OIL

92049-0765

Unavailable

92093

SEAL

92093-0613

$3.77

92145

SPRING

92145-1903

$23.24

92154

BOLT,FLANGED,10X30

92154-0543

$7.48

92154A

BOLT,SOCKET,10X23

92154-0713

$3.26
