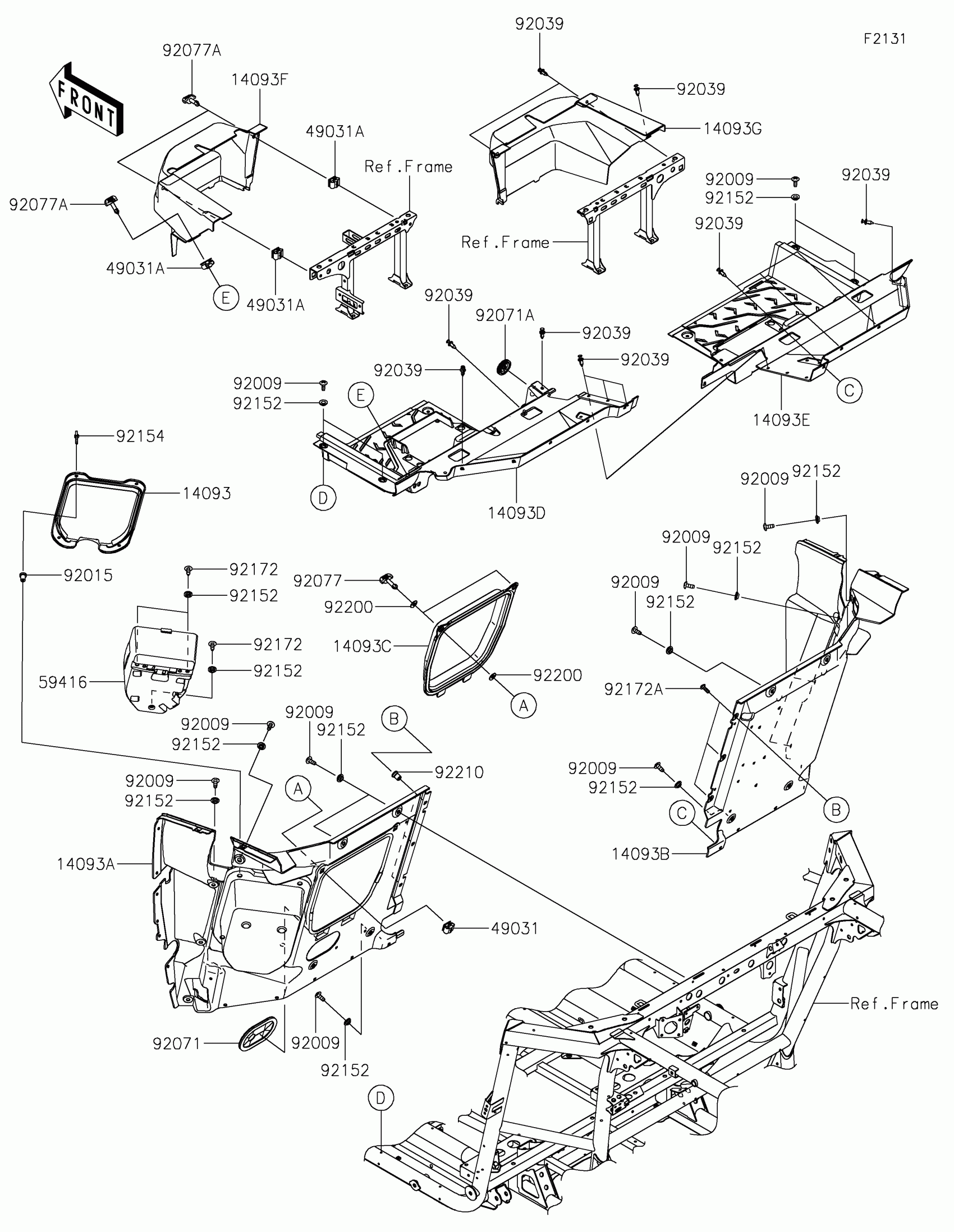

Kawasaki Teryx KRX®4 1000 eS Special Edition Frame Fittings(Rear) Diagram

Description

Price

14093

COVER,ELECTRIC-CASE

14093-0821

$10.31

14093A

COVER,SEAT-BACK-PANEL,LH

14093-0840

$110.37

14093B

COVER,SEAT-BACK-PANEL,RH

14093-0841

$126.26

14093C

COVER,A/C-BOX

14093-0843

$12.83

14093D

COVER,RR,FLOOR,LH

14093-1231

$70.52

14093E

COVER,RR,FLOOR,RH

14093-1232

$70.67

14093F

COVER,BATTERY

14093-1239

$18.14

14093G

COVER,SEAT FRAME

14093-1240

$18.14

49031

LATCH,A/C-BOX

49031-0022

$1.30

49031A

LATCH

49031-0030

$1.80

59416

CASE-ELECTRIC

59416-0028

$13.29

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0789

$3.08

92071A

GROMMET

92071-0791

$1.34

92077

KNOB

92077-0030

$2.11

92077A

KNOB

92077-0040

$2.44

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,WING,6X25

92154-4116

$1.66

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,5MM

92172-0292

$2.34

92200

WASHER

92200-0503

$1.81

92210

NUT,WELL,5MM

92210-0370

$4.27
