Drive Shaft-Front

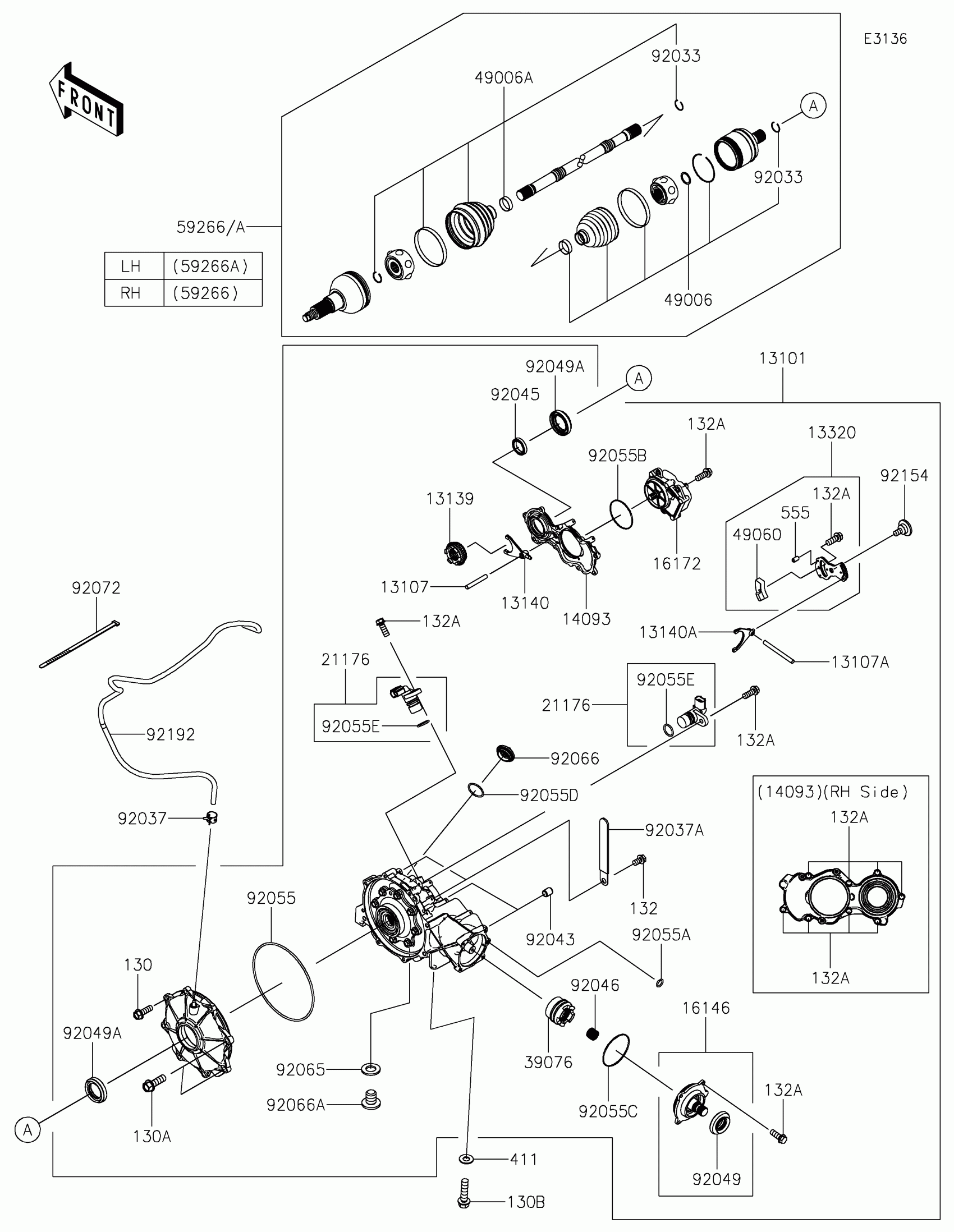

Kawasaki Teryx KRX®4 1000 eS Special Edition Drive Shaft-Front Diagram
#
13101
GEAR-ASSY,FRONT DIFFERENTIAL
13101-0730
$1,802.10
13107
SHAFT,DIFF LOCK
13107-0768
$9.43
13107A
SHAFT
13107-0887
$5.07
13139
SHIFTER,DIFF
13139-0035
$125.59
13140
FORK-SHIFT
13140-0674
$25.91
13140A
FORK-SHIFT
13140-0675
$25.91
13320
LEVER-ASSY
13320-0033
$52.72
14093
COVER,RH
14093-0707
$138.82
16146
COVER-ASSY,INPUT SHAFT
16146-0740
$127.23
16172
ACTUATOR
16172-0030
$637.73
21176
SENSOR,SPEED
21176-0891
$92.95
39076
LIMITER
39076-0047
$75.65
49006
BOOT,INSIDE
49006-0615
$94.95
49006A
BOOT,OUTSIDE
49006-0616
$94.99
49060
CAM
49060-0025
$83.52
59266
JOINT-BALL,RH
59266-0761
$864.28
59266A
JOINT-BALL,LH
59266-0762
$897.55
92033
RING-SNAP
92033-0837
$6.22
92037
CLAMP,TUBE
92037-1505
$4.76
92037A
CLAMP
92037-1993
$5.52
92043
PIN,DOWEL,8X10
92043-1302
$1.03
92045
BEARING-BALL,6806
92045-0826
$45.82
92046
BEARING-NEEDLE
92046-1234
$23.10
92049
SEAL-OIL
92049-0160
$12.92
92049A
SEAL-OIL,TC9Y 40X62X10X17.2
92049-0815
$13.57
92055
RING-O,190.2X4.2
92055-0121
$20.37
92055A
RING-O,7.5X1.5
92055-0756
$1.11
92055B
RING-O,1.9X71.8
92055-0781
$3.32
92055C
"O" RING
92055-081
$17.91
92055D
RING-O,35.8MM
92055-1281
$7.34
92055E
RING-O
92055-1639
$3.09
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,36X7.5
92066-0744
$8.22
92066A
PLUG,12X15
92066-0943
$18.22
92072
BAND,L=218
92072-032
$5.00
92154
BOLT
92154-3860
$9.23
92192
TUBE,5.8X10.8X1275
92192-1922
$21.63
130
BOLT-FLANGED,8X25
130CA0825
$1.46
130A
BOLT-FLANGED,10X30
130CA1030
$2.32
130B
BOLT-FLANGED,10X40
130CA1040
$2.83
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
411
WASHER-PLAIN,10MM
411AA1000
$0.96
555
PIN-SPRING,4X8
555A0408
$3.92
