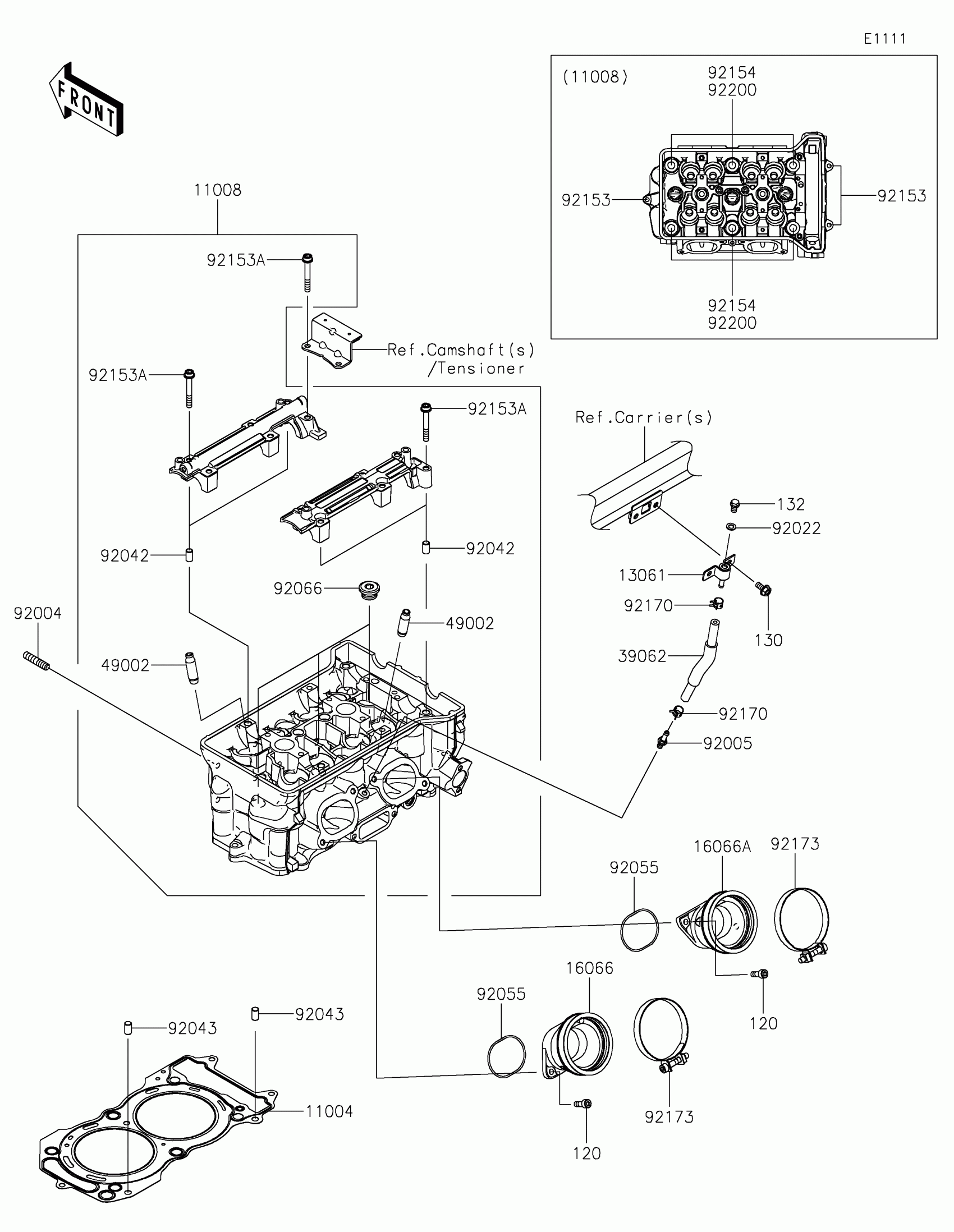

Kawasaki Teryx KRX®4 1000 eS Special Edition Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0785

$59.93

11008

HEAD-COMP-CYLINDER

11008-1461

$1,247.81

13061

BOSS

13061-0977

$13.95

16066

HOLDER-THROTTLE BODY,#1

16066-0015

$33.63

16066A

HOLDER-THROTTLE BODY,#2

16066-0016

$33.63

39062

HOSE-COOLING,CYL.HEAD-AIR VENT

39062-0862

$7.59

49002

GUIDE-VALVE

49002-0709

$9.30

92004

STUD,8X22

92004-1217

$4.27

92005

FITTING

92005-0826

$9.86

92022

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8X14

92043-1567

$1.62

92055

RING-O,49.7X1.9

92055-0930

$7.15

92066

PLUG,18X10

92066-0832

$12.31

92153

BOLT,6X95

92153-0320

$8.68

92153A

BOLT,SOCKET,6X45

92153-0656

$1.81

92154

BOLT,11X157

92154-3931

$11.98

92170

CLAMP

92170-1493

$3.81

92173

CLAMP,72MM

92173-2025

$7.20

92200

WASHER,11.5X20.5X3.2

92200-0727

$8.07

120

BOLT-SOCKET,6X18

120CA0618

$2.14

130

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27
