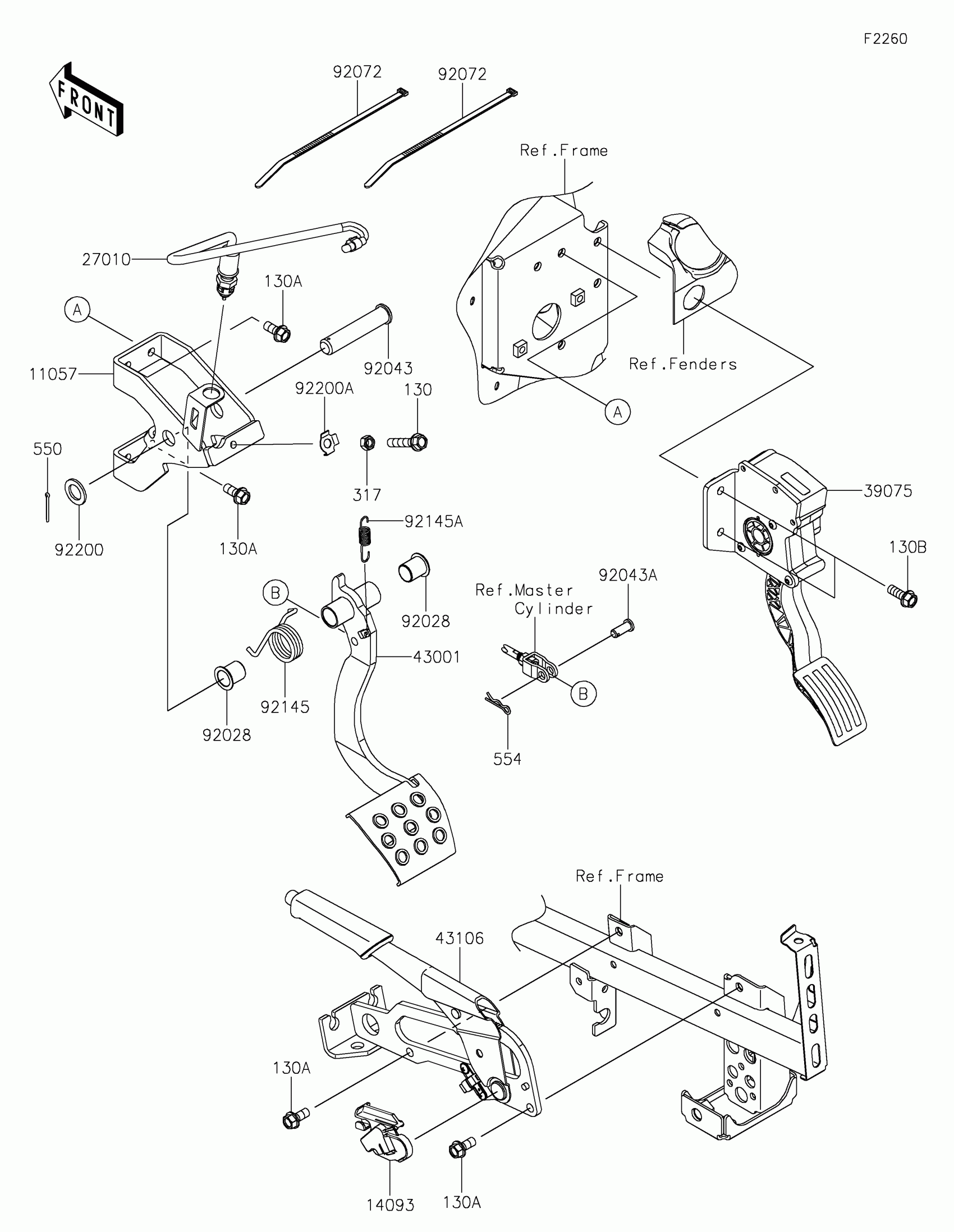

Kawasaki Teryx KRX®4 1000 eS Special Edition Brake Pedal/Throttle Lever Diagram

Description

Price

11057

BRACKET,BRAKE PEDAL

11057-2099

$38.45

14093

COVER,SWITCH

14093-1021

$2.35

27010

SWITCH,BRAKE

27010-0724

$33.80

39075

LEVER-THROTTLE

39075-0033

$128.39

43001

LEVER-BRAKE

43001-0767

$45.86

43106

LEVER-ASSY-PARKING BRAKE

43106-0008

$108.61

92028

BUSHING

92028-1571

$10.67

92043

PIN,16X78

92043-0917

$14.64

92043A

92043-1039

$9.91

92072

BAND,L=292.1

92072-3509

Unavailable

92145

SPRING

92145-1849

$11.32

92145A

SPRING

92145-1884

$8.60

92200

WASHER,16X26X2.3

92200-0043

$7.65

92200A

WASHER,8.5X17X0.8

92200-0993

$4.92

130

BOLT-FLANGED,8X40

130BA0840

$1.98

130A

BOLT-FLANGED,8X18

130CA0818

$2.55

130B

BOLT-FLANGED,8X22

130CB0822

$2.44

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

550

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
