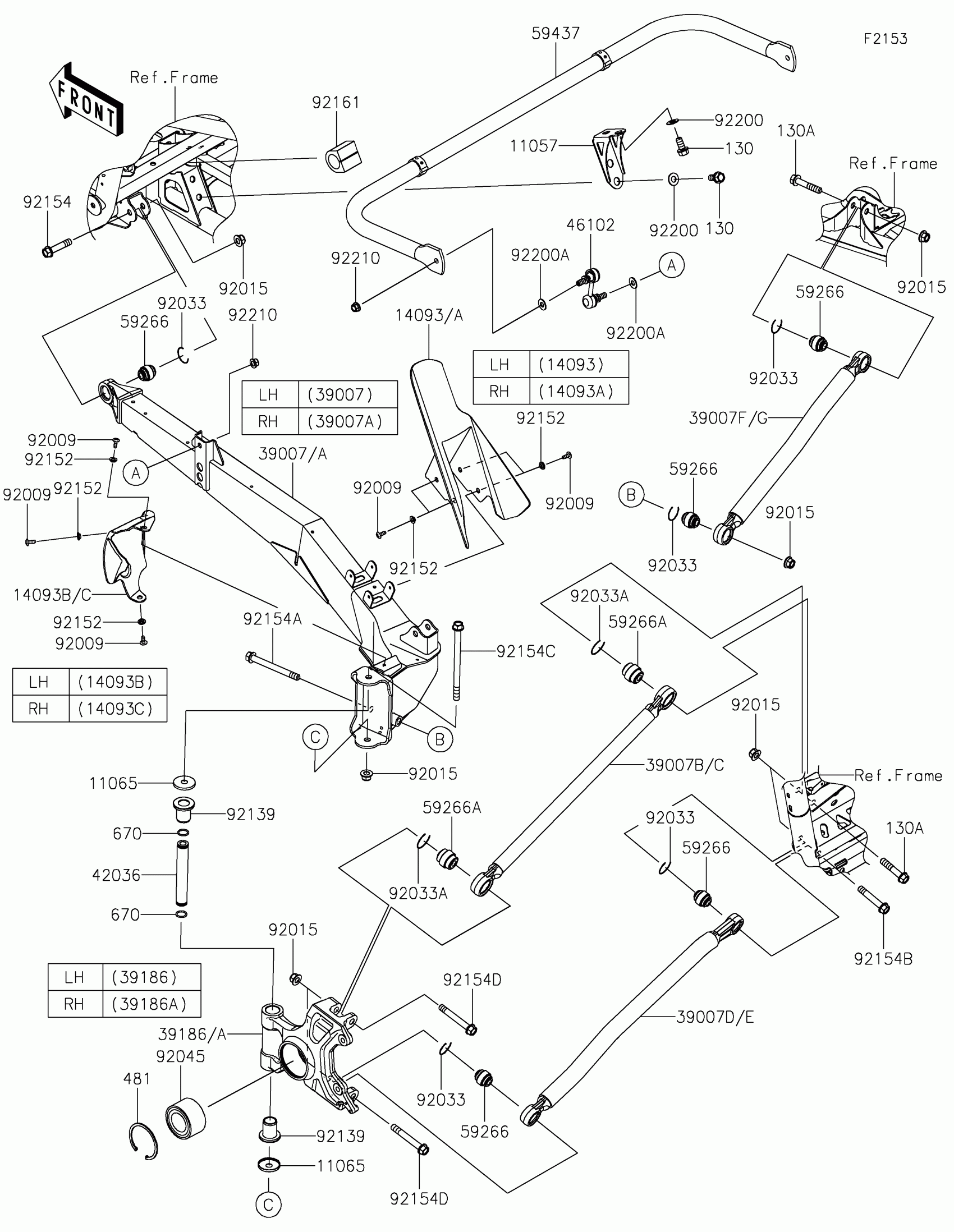

Kawasaki Teryx KRX®4 1000 eS Rear Suspension Diagram

#

Description
Price

11057

BRACKET

11057-7670

$27.44

11065

CAP

11065-1305

$2.08

14093

COVER,RR SHOCK,LH

14093-0955

$20.59

14093A

COVER,RR SHOCK,RH

14093-0956

$20.59

14093B

COVER,TRAILING ARM,LH

14093-0994

$5.14

14093C

COVER,TRAILING ARM,RH

14093-0995

$5.14

39007

ARM-SUSP,TRAILING,LH,BLACK

39007-0468-10

$541.43

39007A

ARM-SUSP,TRAILING,RH,BLACK

39007-0469-10

$541.43

39007B

ARM-SUSP,CONTROL,RR,UPP,GREEN

39007-0470-42Q

$236.52

39007C

ARM-SUSP,CONTROL,RR,UPP,ORANGE

39007-0470-57V

$236.52

39007D

ARM-SUSP,CONTROL,RR,LWR,GREEN

39007-0471-42Q

$363.27

39007E

ARM-SUSP,CONTROL,RR,LWR,ORANGE

39007-0471-57V

$363.27

39007F

ARM-SUSP,CONTROL,FR,GREEN

39007-0472-42Q

$314.28

39007G

ARM-SUSP,CONTROL,FR,ORANGE

39007-0472-57V

$314.28

39186

KNUCKLE,RR,LH

39186-0325

$230.70

39186A

KNUCKLE,RR,RH

39186-0326

$230.70

42036

SLEEVE,12.1X22X147

42036-0837

$56.85

46102

ROD,STABILIZER

46102-0638

$48.58

59266

JOINT-BALL

59266-0747

$18.09

59266A

JOINT-BALL

59266-0748

$27.48

59437

STABILIZER,RR

59437-0028

$182.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92033

RING-SNAP

92033-0802

$1.36

92033A

RING-SNAP

92033-0803

$1.36

92045

BEARING-BALL,40X74X42

92045-0920

$100.57

92139

BUSHING

92139-0938

$8.92

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,FLANGED,12X55

92154-0289

$9.89

92154A

BOLT,FLANGED,12X117

92154-0867

$12.74

92154B

BOLT,FLANGED,12X68

92154-3927

$7.78

92154C

BOLT,FLANGED,12X175

92154-3928

$18.06

92154D

BOLT,FLANGED,12X86

92154-3929

$8.74

92161

DAMPER

92161-2455

$5.69

92200

WASHER,12.1X25X1.6

92200-0455

$2.97

92200A

WASHER,10.3X23X1.6

92200-0724

$3.74

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,12X25

130CA1225

$7.74

130A

BOLT-FLANGED,12X60

130CA1260

$4.60

481

CIRCLIP-TYPE-C

481J7500

$5.48

670

O RING,18MM

670B2018

$1.42
