2024 Kawasaki Teryx KRX®4 1000 eS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2024 Kawasaki Teryx KRX®4 1000 eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

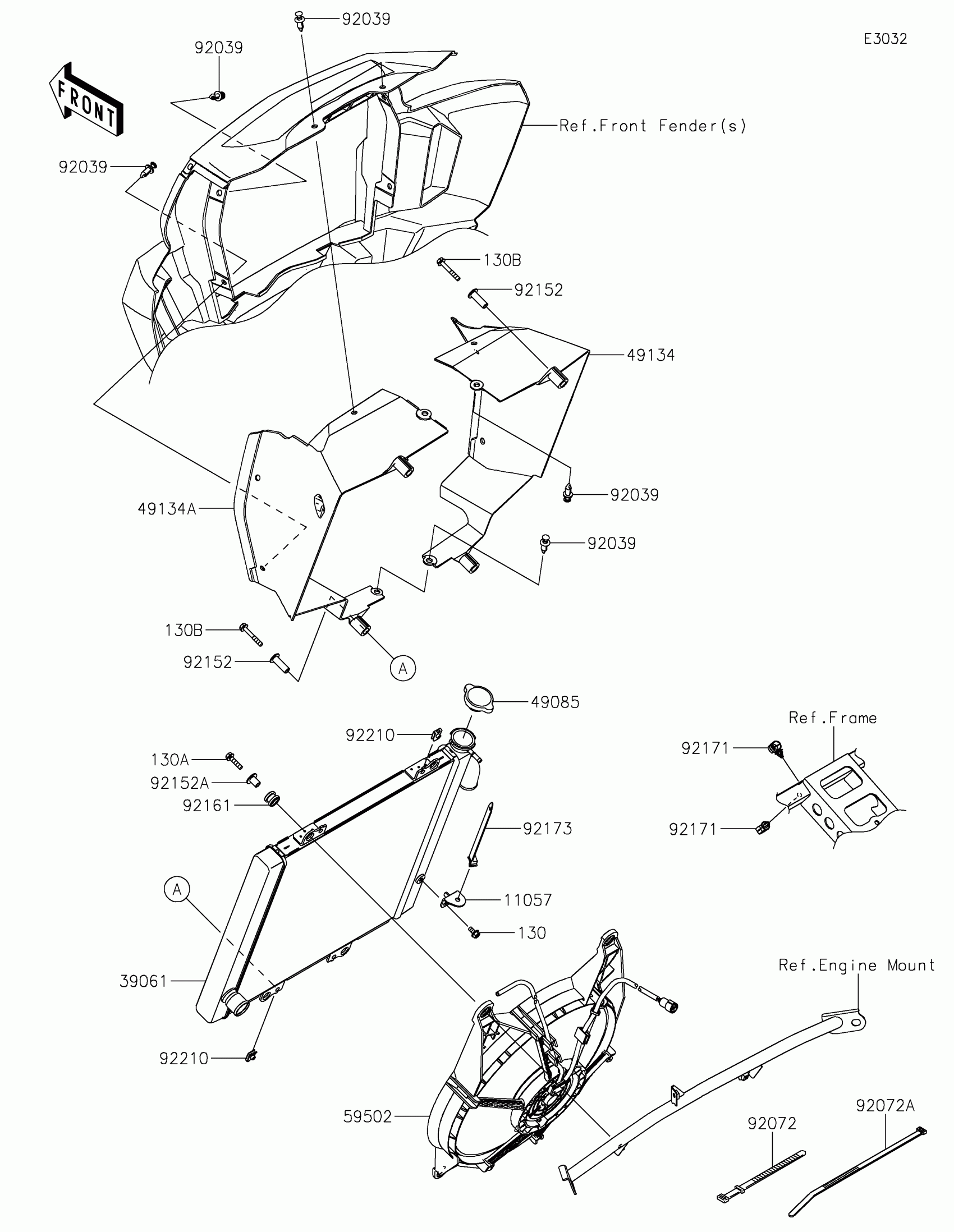

2024 Kawasaki Teryx KRX®4 1000 eS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2564

1
Out of stock

39061

RADIATOR-ASSY

39061-0786

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0005

1
Out of stock

49134

SHROUD,RH

49134-0001

1
Out of stock

49134A

SHROUD,LH

49134-0002

1
Out of stock

59502

FAN-ASSY

59502-0644

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92152

COLLAR

92152-1215

1
Out of stock

92152A

COLLAR

92152-1512

1
Out of stock

92161

DAMPER

92161-1349

1
Out of stock

92171

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92173

CLAMP

92173-1980

1
Out of stock

92210

NUT

92210-0754

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

130B

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock
