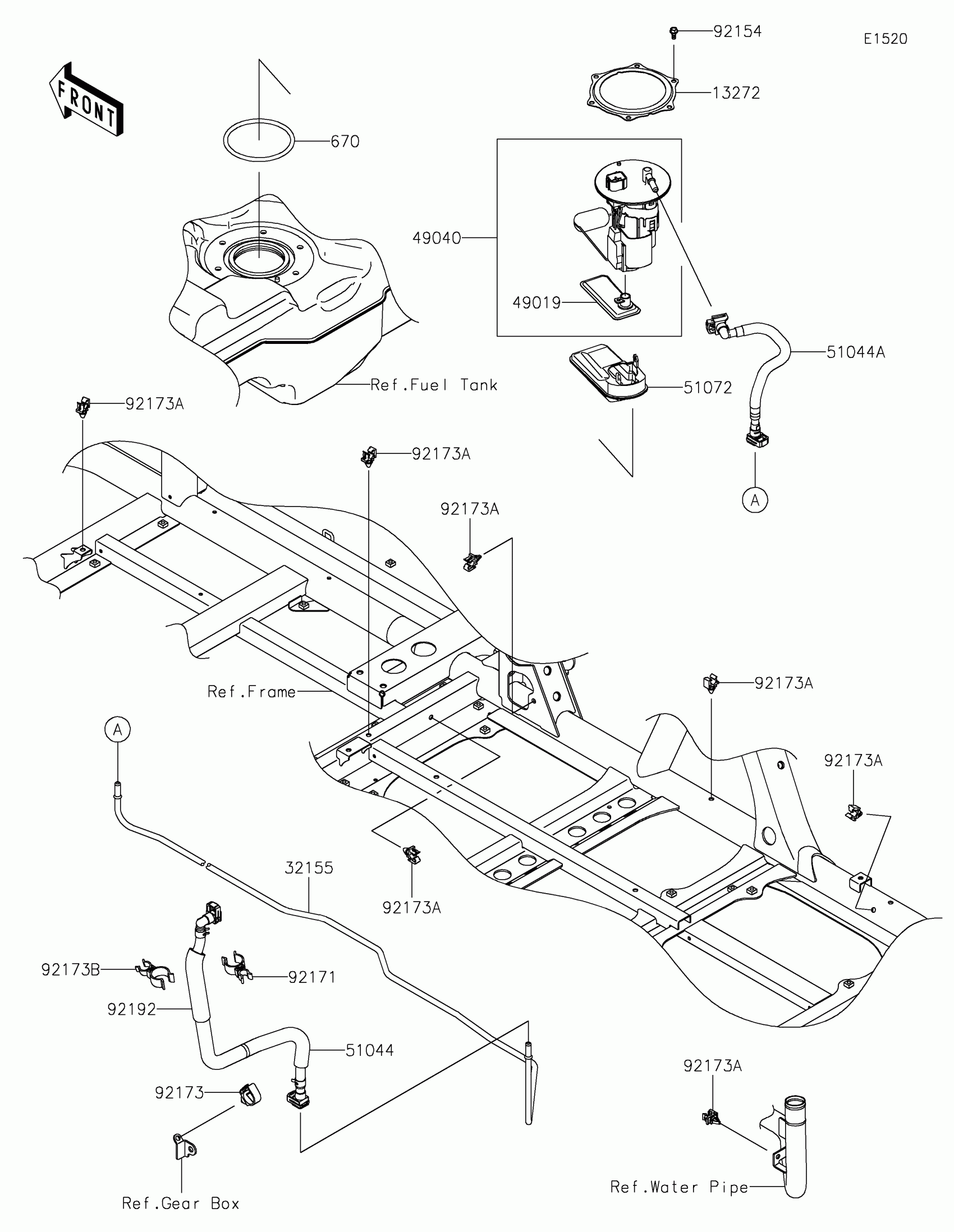

Kawasaki Teryx KRX®4 1000 eS Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2500

$6.56

32155

PIPE,FUEL

32155-7057

$81.89

49019

FILTER-FUEL

49019-0034

$29.07

49040

PUMP-FUEL

49040-0782

$824.04

51044

TUBE-ASSY,PIPE-ENGINE

51044-0944

$255.57

51044A

TUBE-ASSY,FUEL PUMP-PIPE

51044-0992

$76.06

51072

CHAMBER-FUEL

51072-0008

$7.80

92154

BOLT,FUEL PUMP

92154-1326

$0.95

92171

CLAMP

92171-0762

$4.92

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,FUEL PIPE

92173-1213

$1.48

92173B

CLAMP,CLIP

92173-2286

$5.31

92192

TUBE,CORRUGATED,19.5X23.8X120

92192-2335

$3.74

670

O RING

670E5090

$30.75
