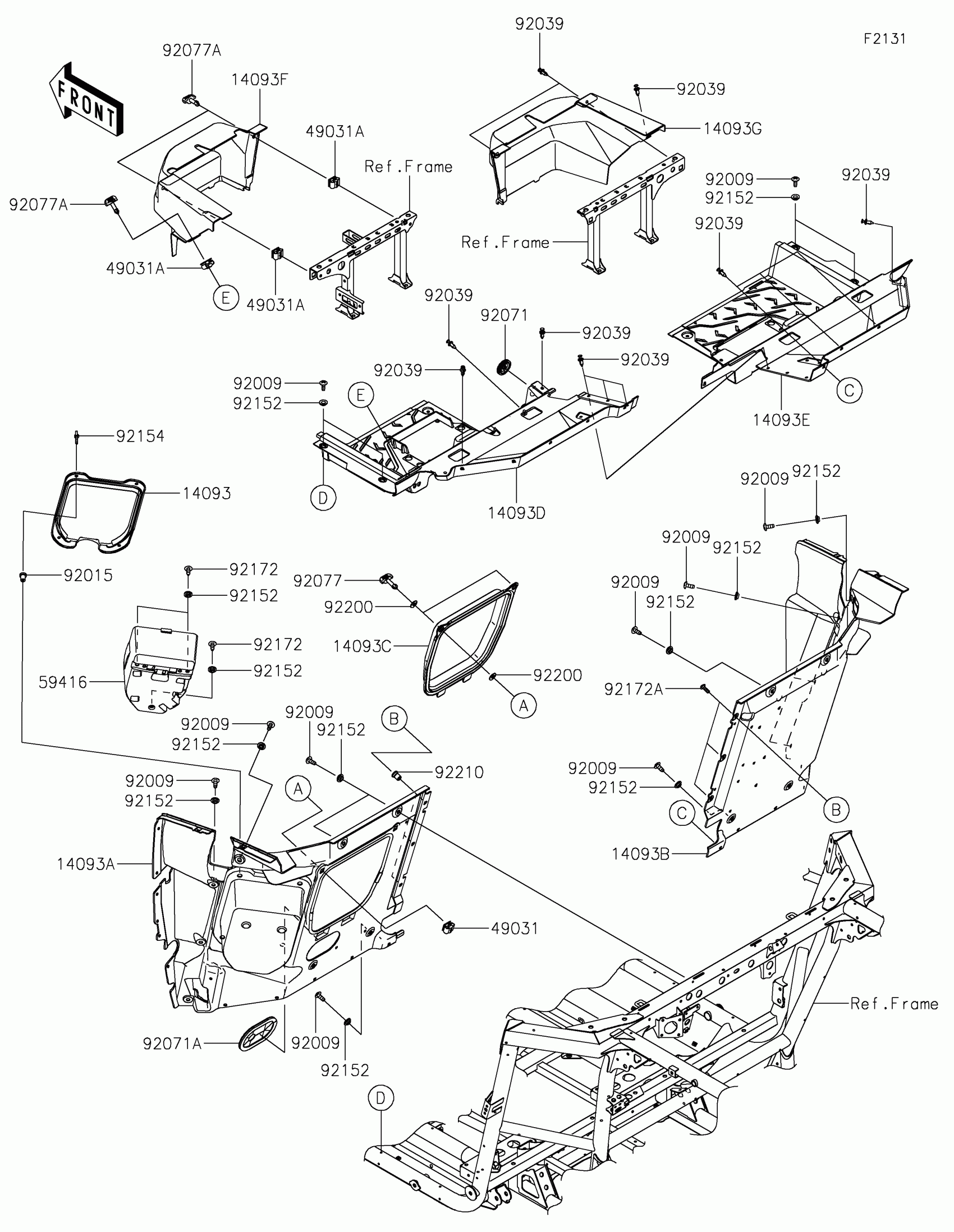

Kawasaki Teryx KRX®4 1000 eS Frame Fittings(Rear) Diagram

Description

Price

14093

COVER,ELECTRIC-CASE

14093-0821

$10.76

14093A

COVER,SEAT-BACK-PANEL,LH

14093-0840

$123.82

14093B

COVER,SEAT-BACK-PANEL,RH

14093-0841

$123.82

14093C

COVER,A/C-BOX

14093-0843

$13.53

14093D

COVER,RR,FLOOR,LH

14093-1231

$69.28

14093E

COVER,RR,FLOOR,RH

14093-1232

$69.42

14093F

COVER,BATTERY

14093-1239

$19.50

14093G

COVER,SEAT FRAME

14093-1240

$19.50

49031

LATCH,A/C-BOX

49031-0022

$1.73

49031A

LATCH

49031-0030

$2.17

59416

CASE-ELECTRIC

59416-0028

$14.02

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0791

$1.52

92071A

GROMMET

92071-0831

$3.51

92077

KNOB

92077-0030

$3.04

92077A

KNOB

92077-0040

$3.02

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,WING,6X25

92154-4116

$2.32

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,5MM

92172-0292

$3.39

92200

WASHER

92200-0503

$2.55

92210

NUT,WELL,5MM

92210-0370

$5.65
