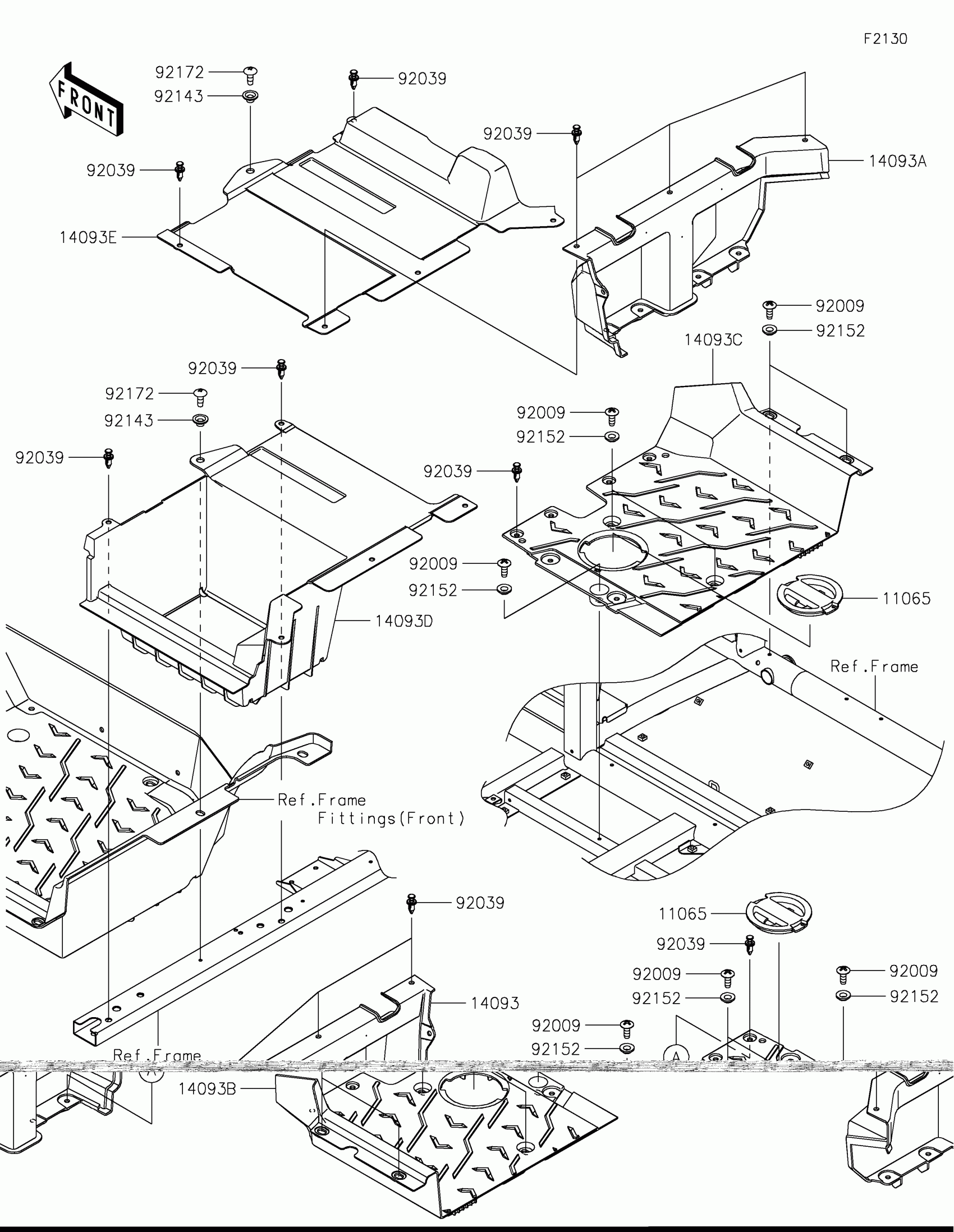

Kawasaki Teryx KRX®4 1000 eS Frame Fittings(Middle) Diagram

Description

Price

11065

CAP,FLOOR

11065-1423

$11.22

14093

COVER,RR FLOOR,FR,LH

14093-1227

$15.38

14093A

COVER,RR FLOOR,FR,RH

14093-1228

$15.38

14093B

COVER,RR FLOOR,RR,LH

14093-1229

$22.57

14093C

COVER,RR FLOOR,RR,RH

14093-1230

$22.57

14093D

COVER,FUEL TANK,LH

14093-1241

$30.90

14093E

COVER,FUEL TANK,RH

14093-1242

$20.13

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0776

$1.19

92143

COLLAR

92143-1057

$5.00

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92172

SCREW,TAPPING,6X16

92172-0739

$0.85
