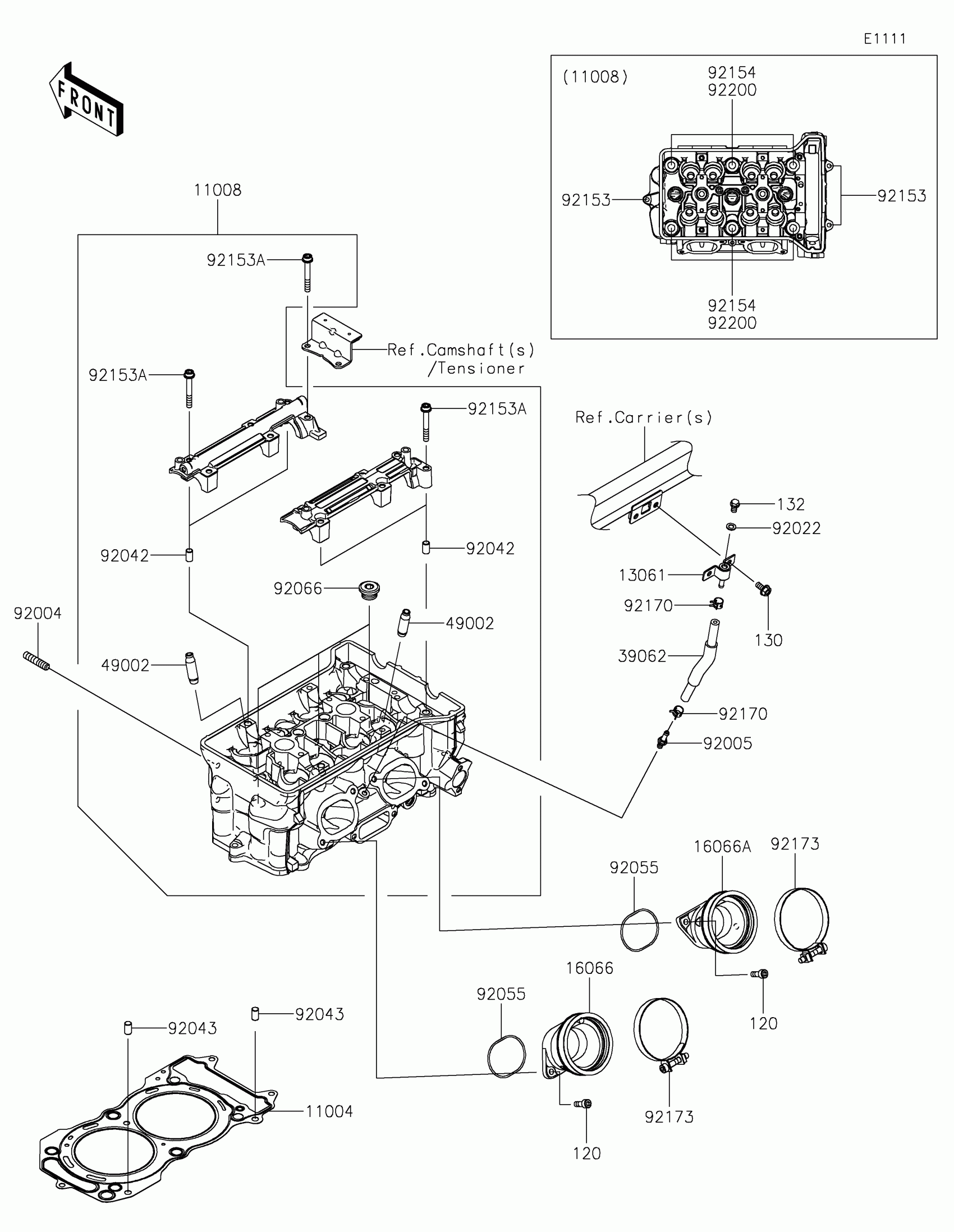

Kawasaki Teryx KRX®4 1000 eS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0785

$66.86

11008

HEAD-COMP-CYLINDER

11008-1461

$1,786.26

13061

BOSS

13061-0977

$14.78

16066

HOLDER-THROTTLE BODY,#1

16066-0015

$33.00

16066A

HOLDER-THROTTLE BODY,#2

16066-0016

$33.00

39062

HOSE-COOLING,CYL.HEAD-AIR VENT

39062-0862

$7.72

49002

GUIDE-VALVE

49002-0709

$12.23

92004

STUD,8X22

92004-1217

$5.65

92005

FITTING

92005-0826

$10.21

92022

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8X14

92043-1567

$2.26

92055

RING-O,49.7X1.9

92055-0930

$9.39

92066

PLUG,18X10

92066-0832

$12.90

92153

BOLT,6X95

92153-0320

$11.42

92153A

BOLT,SOCKET,6X45

92153-0656

$2.55

92154

BOLT,11X157

92154-3931

$15.78

92170

CLAMP

92170-1493

$5.00

92173

CLAMP,72MM

92173-2025

$7.29

92200

WASHER,11.5X20.5X3.2

92200-0727

$10.60

120

BOLT-SOCKET,6X18

120CA0618

$3.07

130

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
