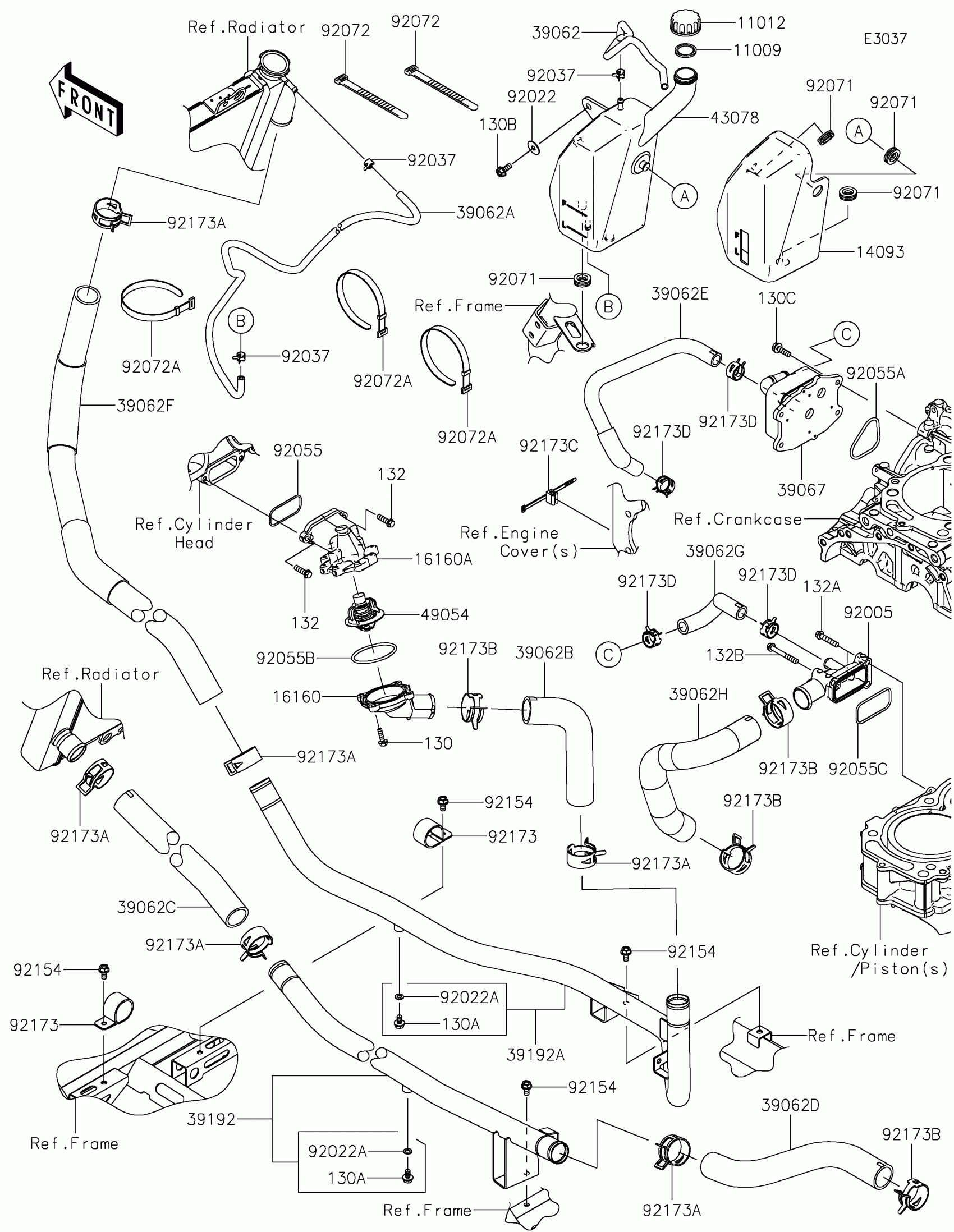

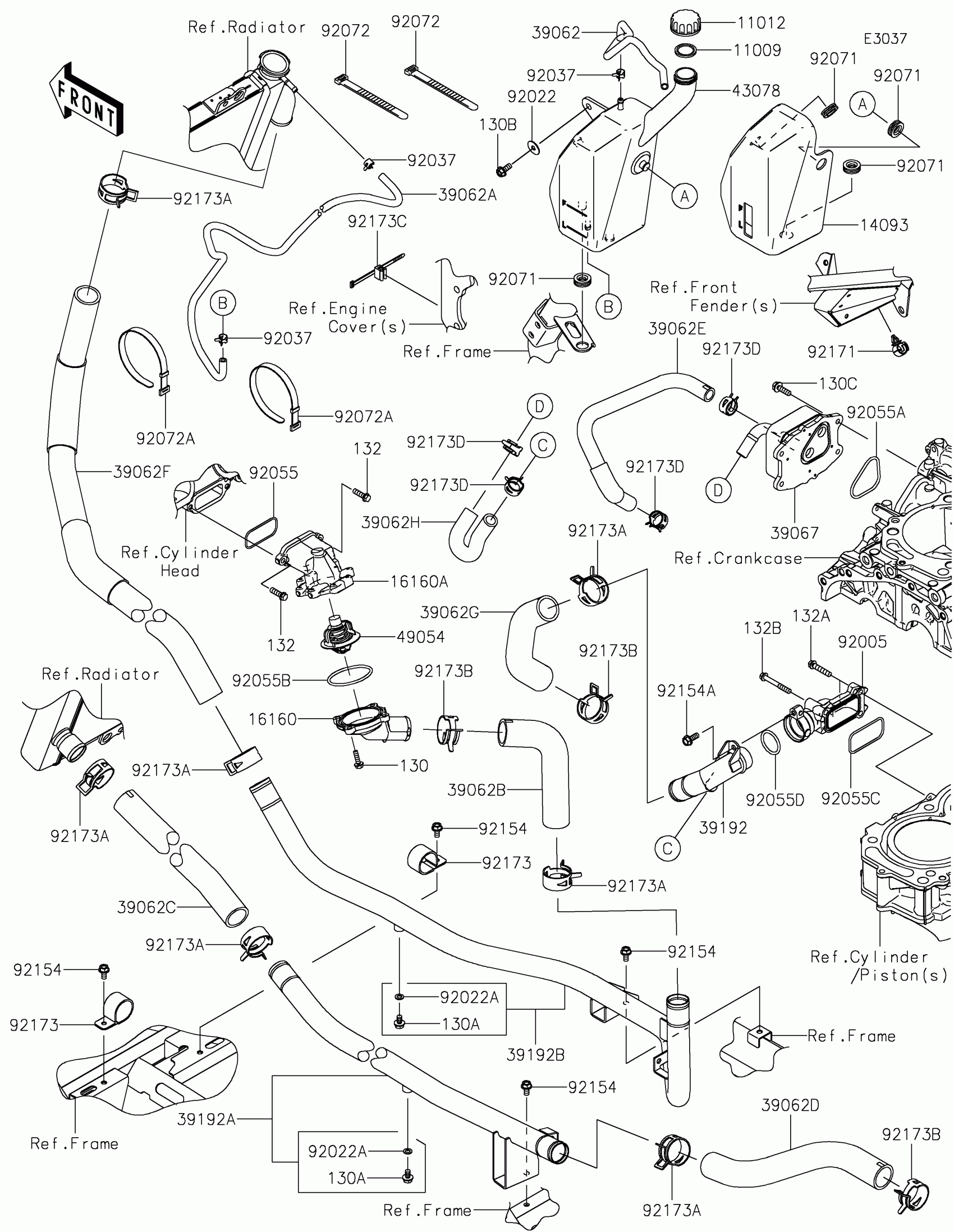

Kawasaki TERYX KRX® 1000 TRAIL EDITION Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14093

COVER,RESERVOIR

14093-0847

$7.42

16160

BODY

16160-0805

$58.06

16160A

BODY

16160-0806

$42.21

39062

HOSE-COOLING,OVERFLOW

39062-0830

$7.59

39062A

HOSE-COOLING,RAD-RESERVOIR

39062-0831

$14.80

39062B

HOSE-COOLING,ENGINE-PIPE(RH)

39062-0833

$14.80

39062C

HOSE-COOLING,RADIATOR-PIPE(LH)

39062-0835

$54.83

39062D

HOSE-COOLING,PIPE(LH)-W/PUMP

39062-0836

$19.85

39062E

HOSE-COOLING,OIL COOLER-W/PUMP

39062-0838

$18.49

39062F

HOSE-COOLING,RADIATOR-PIPE(RH)

39062-0870

$79.69

39062G

HOSE-COOLING,ENGINE-OIL COOLER

39062-0872

$109.76

39062H

HOSE-COOLING,W/PUMP-ENGINE

39062-0874

Unavailable

39067

COOLER-OIL

39067-0023

$359.15

39192

PIPE-WATER,LH

39192-0669

$92.17

39192A

PIPE-WATER,RH

39192-0670

$101.94

43078

RESERVOIR

43078-0602

$94.19

49054

THERMOSTAT

49054-0004

$51.97

92005

FITTING,CYLINDER

92005-0899

$62.45

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-1461

$2.93

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$2.84

92055A

RING-O,46.4X3.1

92055-0752

$3.36

92055B

RING-O,53.5X2.6

92055-0831

$5.99

92055C

RING-O,FITTING

92055-0923

$4.84

92071

GROMMET

92071-1115

$4.14

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92154

BOLT,FLANGED,6X12

92154-1195

$1.32

92173

CLAMP

92173-1204

$3.49

92173A

CLAMP,28.6MM

92173-1205

$4.34

92173B

CLAMP,33.4MM

92173-1981

$4.04

92173C

CLAMP

92173-2089

$1.98

92173D

CLAMP

92173-2285

$3.51

130

BOLT-FLANGED,5X18

130BA0518

$1.31

130A

BOLT-FLANGED,6X10

130BA0610

$0.97

130B

BOLT-FLANGED,6X14

130BA0614

$0.97

130C

BOLT-FLANGED,6X20

130CA0620

$1.22

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.39
