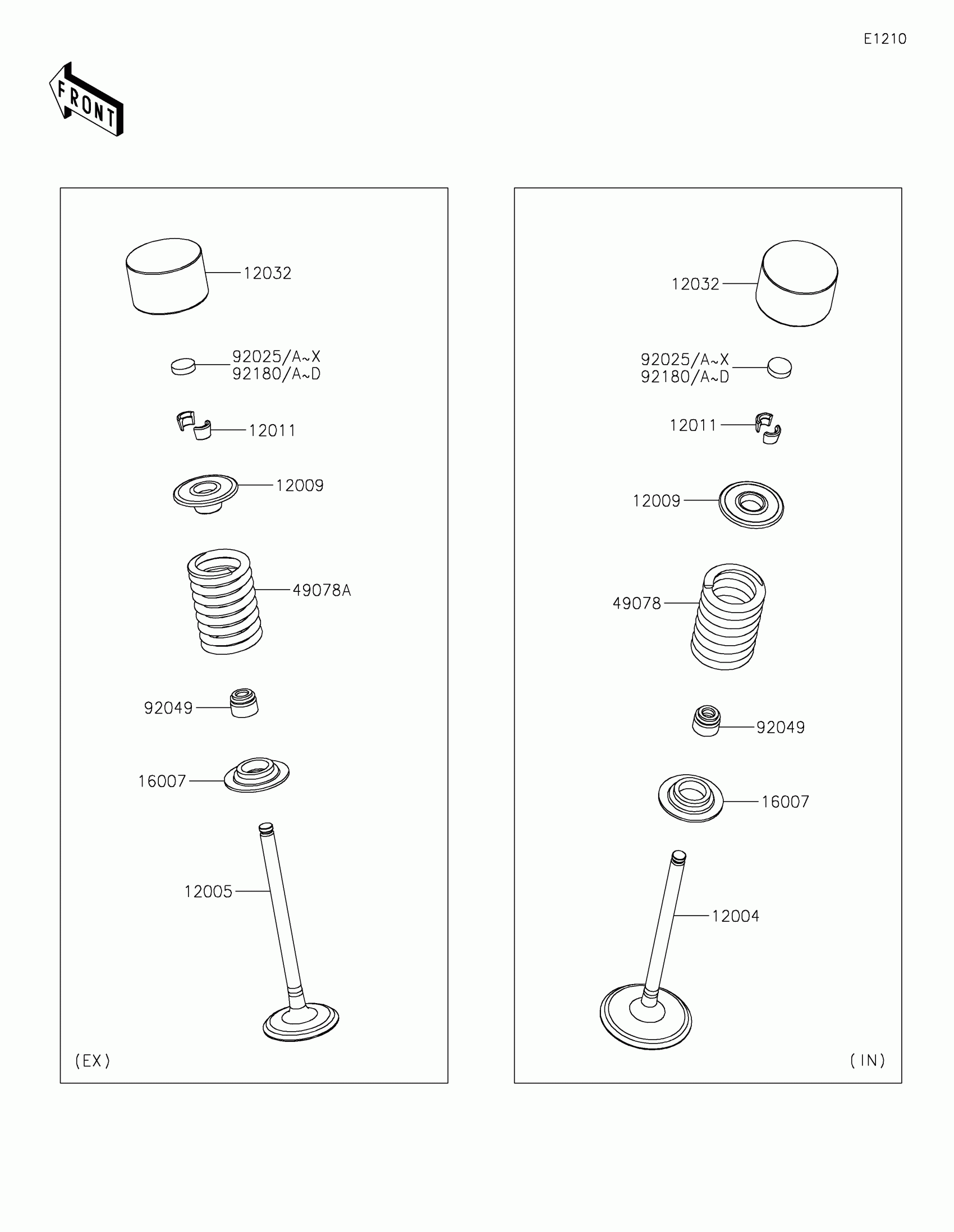

Kawasaki TERYX KRX® 1000 TRAIL EDITION Valve(s) Diagram

#

Description
Price

12004

VALVE-INTAKE

12004-0767

$40.88

12005

VALVE-EXHAUST

12005-0791

$50.34

12009

RETAINER-VALVE SPRING

12009-0042

$12.19

12011

COLLET

12011-1003

$3.69

12032

TAPPET

12032-0030

$15.18

16007

SEAT-SPRING

16007-0753

$3.45

49078

SPRING-ENGINE VALVE,IN

49078-0758

$19.31

49078A

SPRING-ENGINE VALVE,EX

49078-0759

$14.79

92025

SHIM,T=2.00

92025-1870

$14.76

92025A

SHIM,T=2.05

92025-1871

$14.76

92025B

SHIM,T=2.10

92025-1872

$14.76

92025C

SHIM,T=2.15

92025-1873

$14.76

92025D

SHIM,T=2.20

92025-1874

$12.34

92025E

SHIM,T=2.25

92025-1875

$14.76

92025F

SHIM,T=2.30

92025-1876

$14.76

92025G

SHIM,T=2.35

92025-1877

$14.76

92025H

SHIM,T=2.40

92025-1878

$14.76

92025I

SHIM,T=2.45

92025-1879

$14.76

92025J

SHIM,T=2.50

92025-1880

$14.76

92025K

SHIM,T=2.55

92025-1881

$12.34

92025L

SHIM,T=2.60

92025-1882

$14.76

92025M

SHIM,T=2.65

92025-1883

$12.34

92025N

SHIM,T=2.70

92025-1884

$14.76

92025O

SHIM,T=2.75

92025-1885

$14.76

92025P

SHIM,T=2.80

92025-1886

$12.34

92025Q

SHIM,T=2.85

92025-1887

$14.76

92025R

SHIM,T=2.90

92025-1888

$14.76

92025S

SHIM,T=2.95

92025-1889

$14.76

92025T

SHIM,T=3.00

92025-1890

$14.76

92025U

SHIM,T=2.425

92025-1982

$14.76

92025V

SHIM,T=2.475

92025-1983

$14.76

92025W

SHIM,T=2.525

92025-1984

$14.76

92025X

SHIM,T=2.575

92025-1985

$14.76

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$4.07

92180

SHIM,T=2.375

92180-1058

$14.76

92180A

SHIM,T=2.625

92180-1059

$14.76

92180B

SHIM,T=2.675

92180-1194

$16.53

92180C

SHIM,T=2.725

92180-1195

$16.53

92180D

SHIM,T=2.775

92180-1196

$16.53
