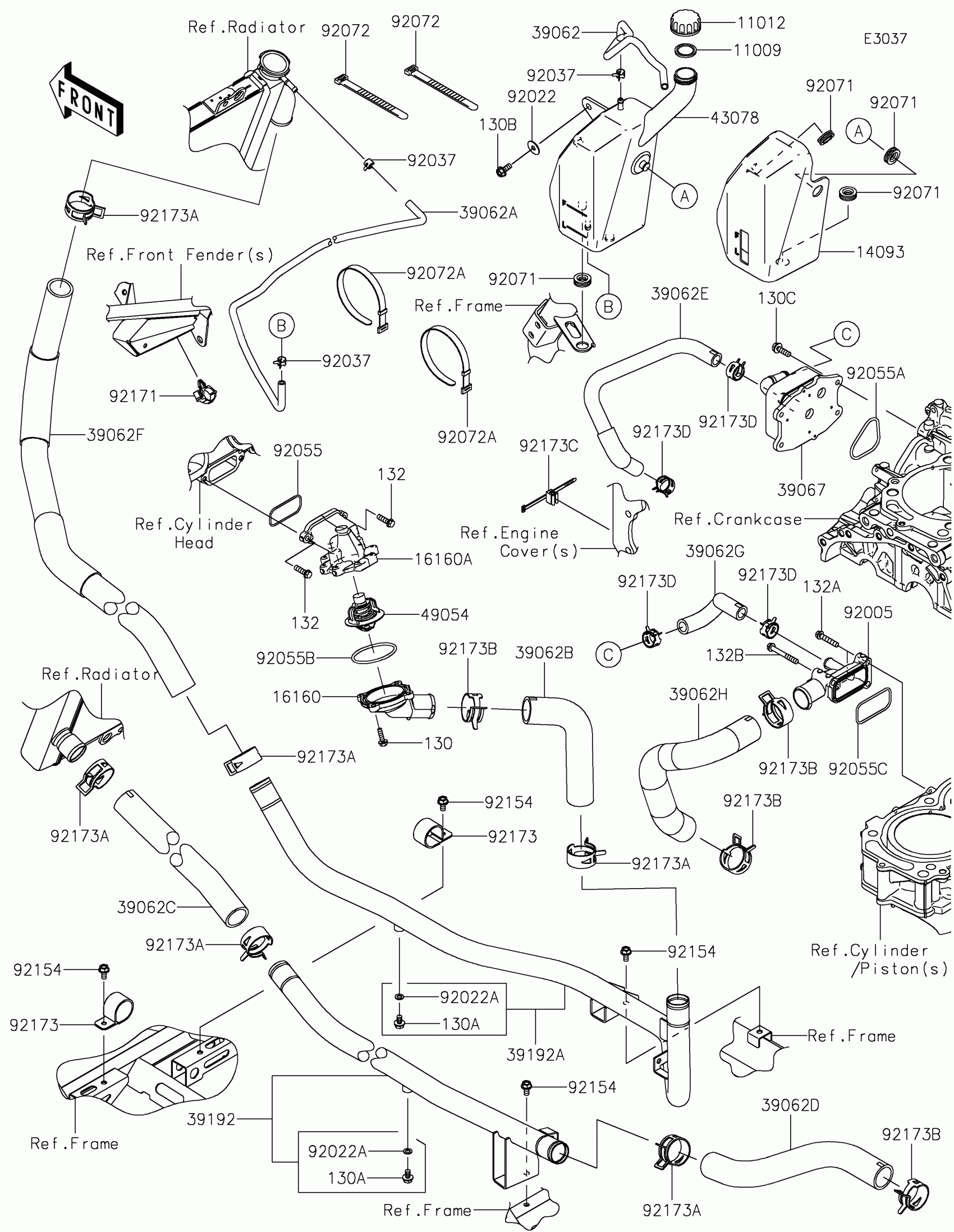

Kawasaki Teryx KRX® 1000 Trail Edition Water Pipe( - RFT00AE028048) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

14093

COVER,RESERVOIR

14093-0847

$7.57

16160

BODY

16160-0805

$56.95

16160A

BODY

16160-0806

$41.41

39062

HOSE-COOLING,OVERFLOW

39062-0830

$7.72

39062A

HOSE-COOLING,RAD-RESERVOIR

39062-0831

$15.64

39062B

HOSE-COOLING,ENGINE-PIPE(RH)

39062-0833

$15.64

39062C

HOSE-COOLING,RADIATOR-PIPE(LH)

39062-0835

$53.78

39062D

HOSE-COOLING,PIPE(LH)-W/PUMP

39062-0836

$21.15

39062E

HOSE-COOLING,OIL COOLER-W/PUMP

39062-0838

$19.80

39062F

HOSE-COOLING,RADIATOR-PIPE(RH)

39062-0870

$78.19

39062G

HOSE-COOLING,ENGINE-OIL COOLER

39062-0872

$107.48

39062H

HOSE-COOLING,W/PUMP-ENGINE

39062-0874

Unavailable

39067

COOLER-OIL

39067-0023

$351.78

39192

PIPE-WATER,LH

39192-0669

$89.97

39192A

PIPE-WATER,RH

39192-0670

$99.17

43078

RESERVOIR

43078-0602

$92.40

49054

THERMOSTAT

49054-0004

$59.01

92005

FITTING,CYLINDER

92005-0899

$61.25

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-1461

$3.88

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O,46.4X3.1

92055-0752

$4.41

92055B

RING-O,53.5X2.6

92055-0831

$7.85

92055C

RING-O,FITTING

92055-0923

$6.45

92071

GROMMET

92071-1115

$5.46

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92154

BOLT,FLANGED,6X12

92154-1195

$1.49

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92173

CLAMP

92173-1204

$3.86

92173A

CLAMP,28.6MM

92173-1205

$4.92

92173B

CLAMP,33.4MM

92173-1981

$5.31

92173C

CLAMP

92173-2089

$2.82

92173D

CLAMP

92173-2285

$4.60

130

BOLT-FLANGED,5X18

130BA0518

$1.49

130A

BOLT-FLANGED,6X10

130BA0610

$1.49

130B

BOLT-FLANGED,6X14

130BA0614

$1.49

130C

BOLT-FLANGED,6X20

130CA0620

$1.70

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45
