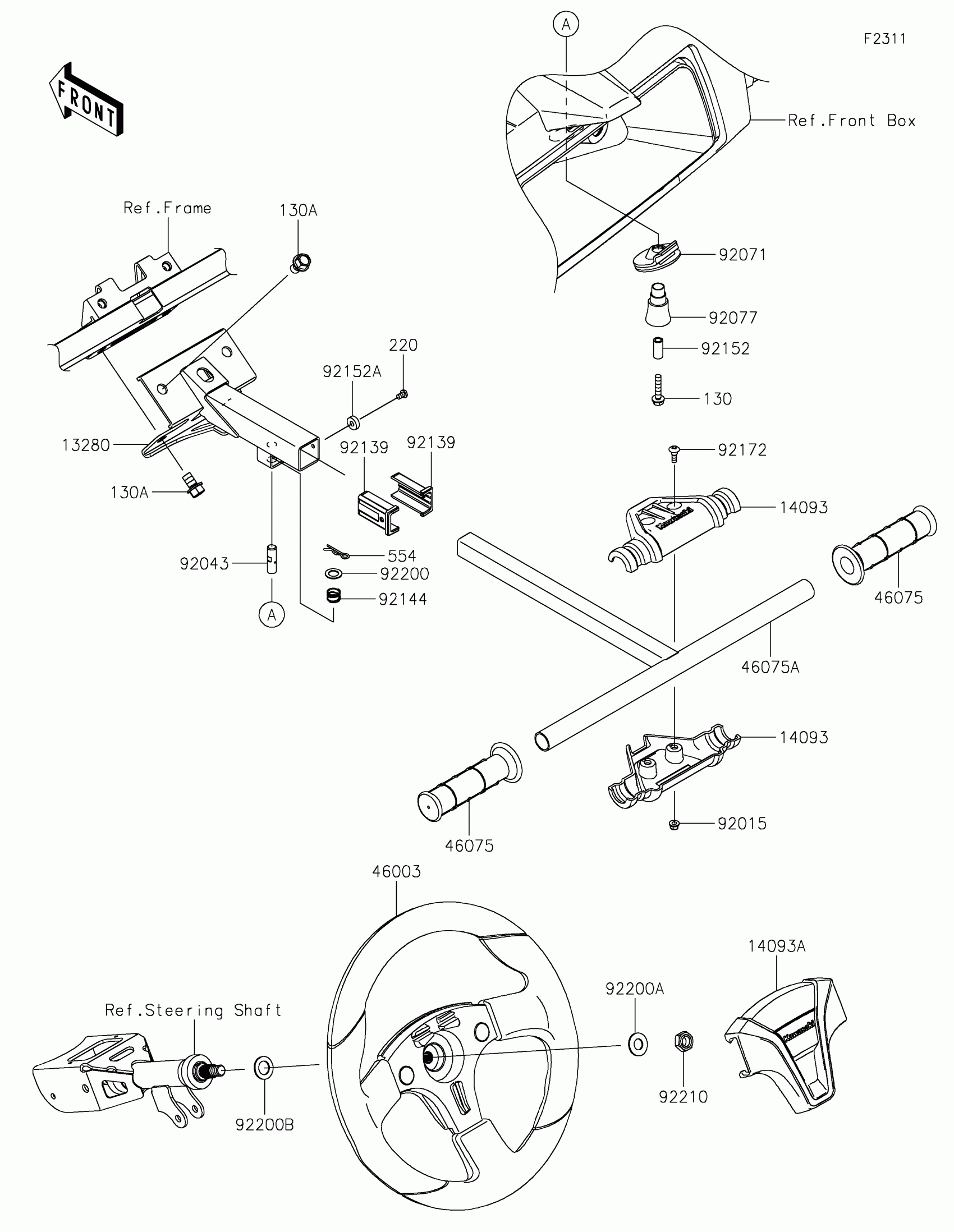

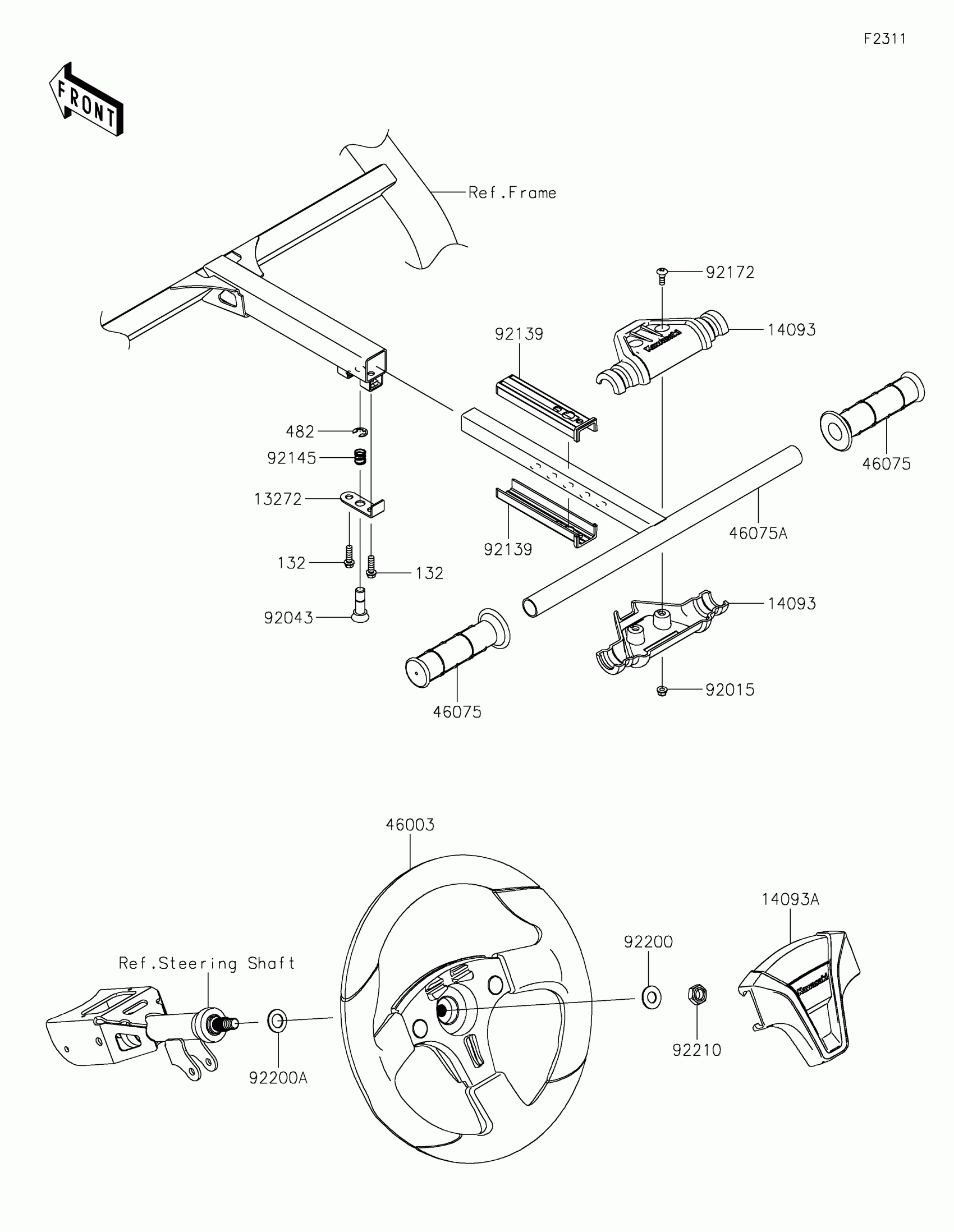

Kawasaki TERYX KRX® 1000 TRAIL EDITION Steering Wheel Diagram

Description

Price

13280

HOLDER,PASSENGER GRIP

13280-0940

$62.07

14093

COVER,PASSENGER GRIP

14093-0802

$5.97

14093A

COVER,HANDLE

14093-0803

$24.39

46003

HANDLE

46003-0769

$116.61

46075

GRIP

46075-0065

$30.65

46075A

GRIP,PIPE

46075-0637

$24.81

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92043

92043-1734

$12.24

92071

GROMMET

92071-0796

$1.52

92077

KNOB

92077-0039

$1.99

92139

BUSHING

92139-0971

$1.21

92144

SPRING,ROCKER ARM,SHORT

92144-1255

$7.27

92152

COLLAR,6.2X10X22.2

92152-2552

$5.69

92152A

COLLAR,5.7X14.5X4.55

92152-2608

$4.95

92172

SCREW,5MM

92172-0261

$3.39

92200

WASHER,11X18X1

92200-0324

$7.75

92200A

WASHER,12.1X25X1.6

92200-0455

$2.97

92200B

WASHER,15X25X1.6

92200-0460

$3.71

92210

NUT,LOCK,12MM

92210-1249

$7.71

130

BOLT-FLANGED,6X30

130CA0630

$2.49

130A

BOLT-FLANGED,10X16

130CA1016

$3.35

220

SCREW-PAN-CROS,5X8

220AA0508

$0.47

554

PIN-SNAP,10MM

554DA1000

$1.36
