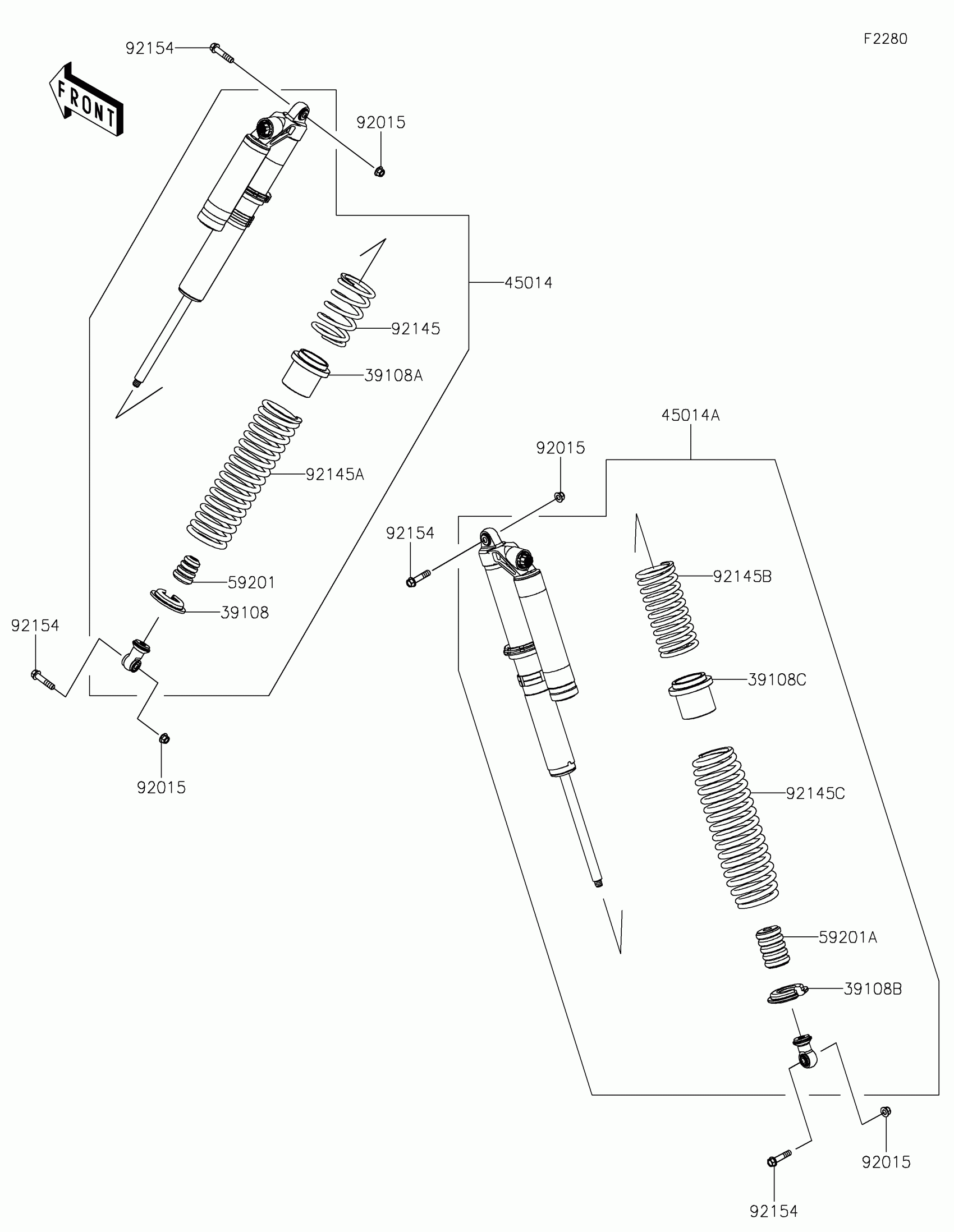

Kawasaki TERYX KRX® 1000 TRAIL EDITION Shock Absorber(s) Diagram

Description

Price

39108

RETAINER-SPRING

39108-0015

$48.47

39108A

RETAINER-SPRING

39108-0016

$49.87

39108B

RETAINER-SPRING

39108-0017

$48.47

39108C

RETAINER-SPRING

39108-0018

$49.87

45014

SHOCKABSORBER,FR,SILVER

45014-0627-42P

$1,077.78

45014A

SHOCKABSORBER,RR,SILVER

45014-0628-42P

$1,159.90

59201

BUMPER

59201-0004

$60.69

59201A

BUMPER

59201-0005

$60.69

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92145

SPRING,TENDER,SILVER

92145-1952-42P

$49.41

92145A

SPRING,MAIN,SILVER

92145-1953-42P

$179.24

92145B

SPRING,TENDER,SILVER

92145-1954-42P

$99.52

92145C

SPRING,MAIN,SILVER

92145-1955-42P

$173.46

92154

BOLT,FLANGED,12X55

92154-0289

$9.89
