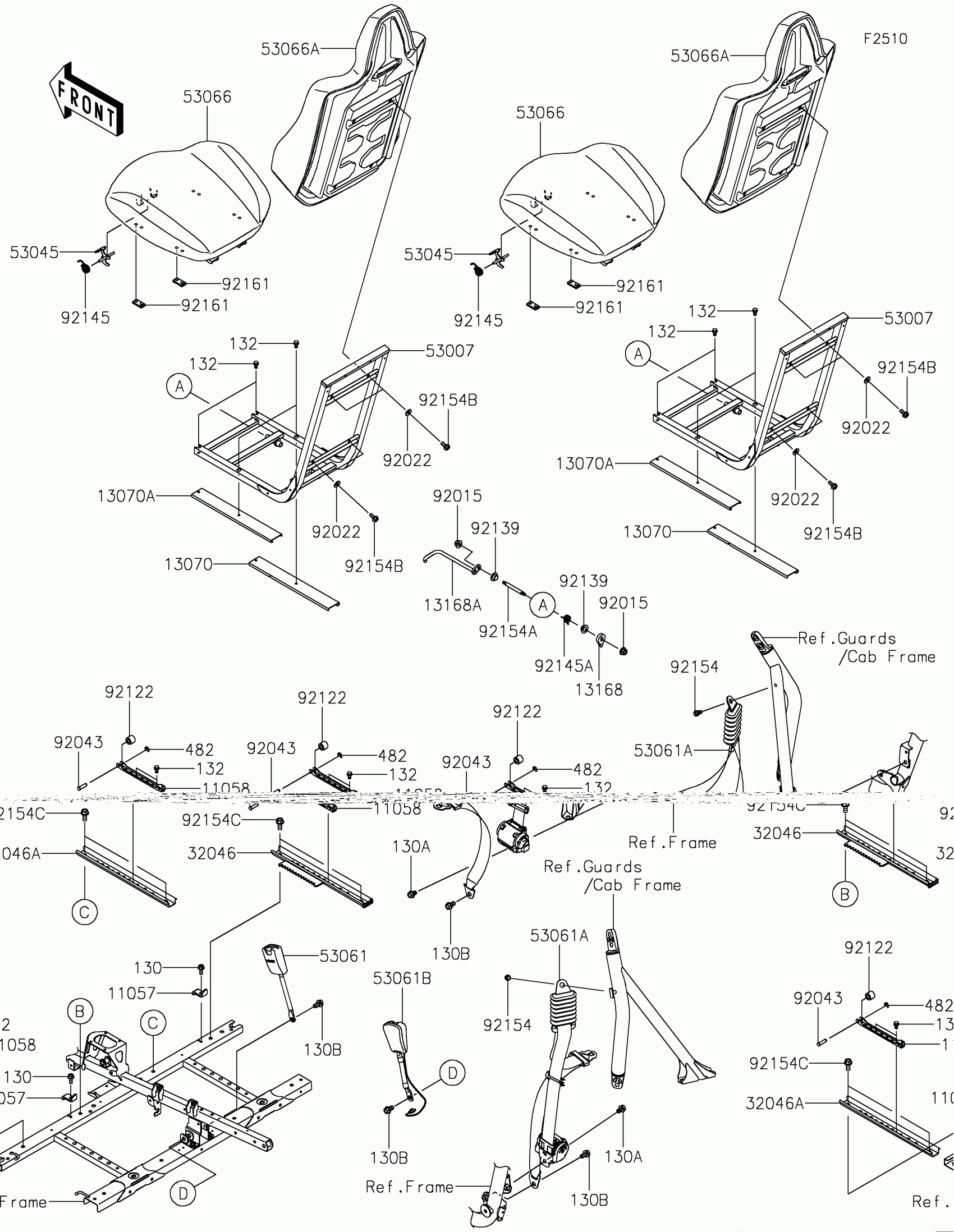

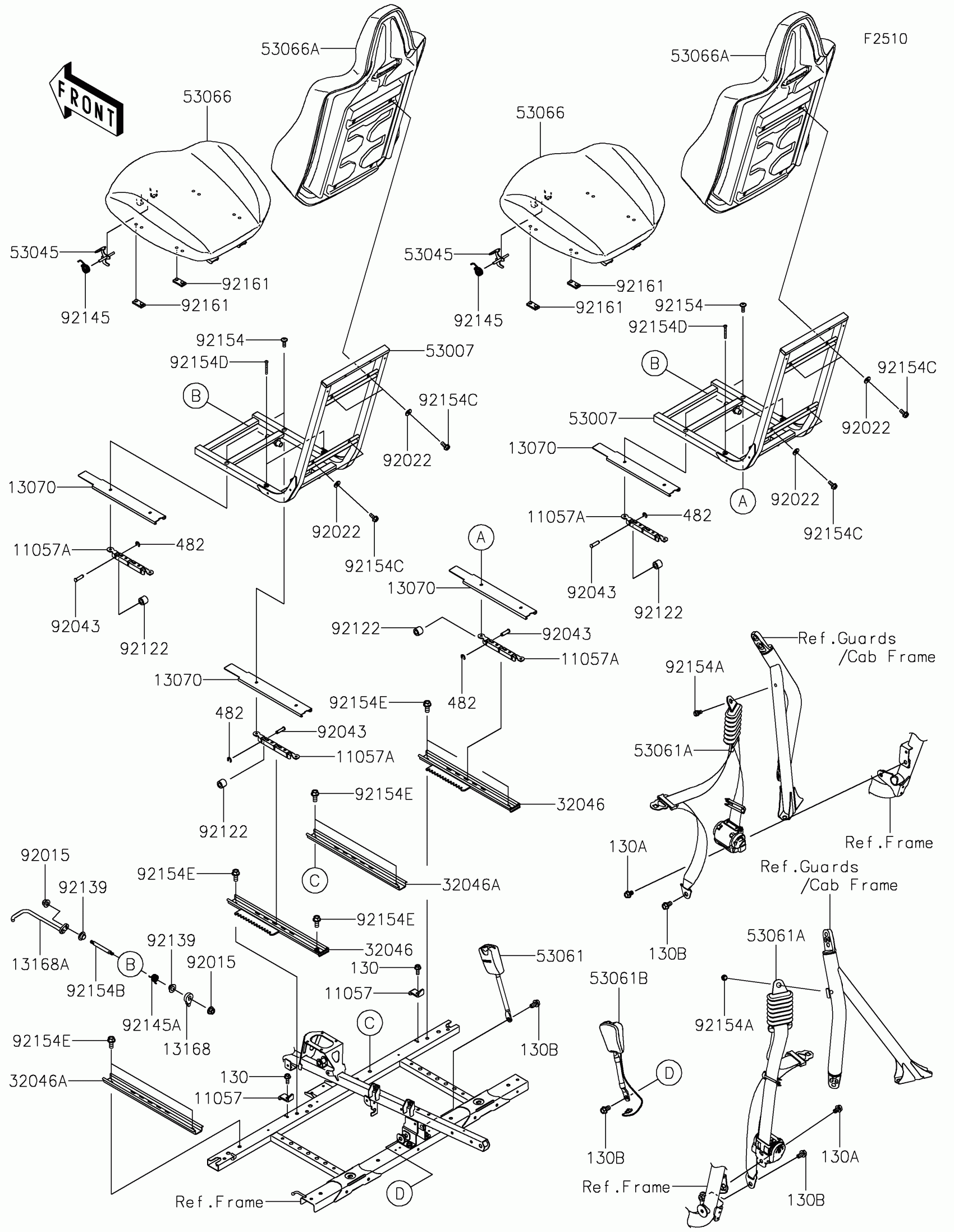

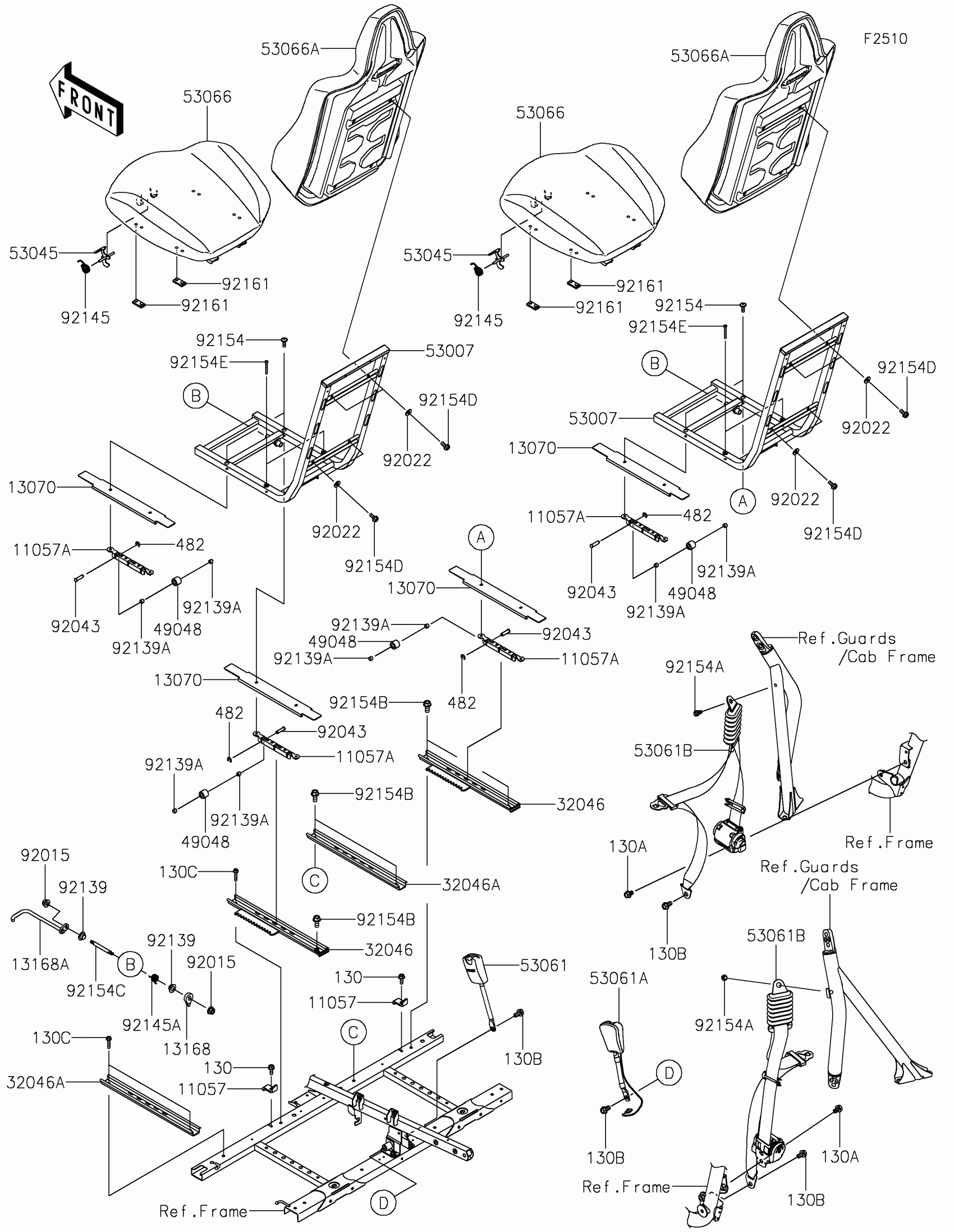

Kawasaki TERYX KRX® 1000 TRAIL EDITION Seat Diagram

#

Description
Price

11057

BRACKET

11057-2767

$1.36

11057A

BRACKET

11057-2788

$4.48

13070

GUIDE

13070-0923

$6.65

13168

LEVER,STOP

13168-0883

$14.25

13168A

LEVER,SEAT ADJUST

13168-0884

$11.22

32046

BRACKET-SEAT,RAIL,RH

32046-0447

$44.03

32046A

BRACKET-SEAT,RAIL,LH

32046-0448

$18.12

49048

SHOE,SLIDE

49048-0018

$0.93

53007

FRAME-SEAT

53007-0440

$82.61

53045

HOOK-ASSY,SEAT BOTTOM

53045-0034

$7.81

53061

BELT-SEAT,BUCKLE,PASSENGER

53061-0358

$31.80

53061A

BELT-SEAT,BUCKLE,DRIVER

53061-0359

$55.82

53061B

BELT-SEAT,RETRACTOR

53061-0360

$156.61

53066

SEAT-ASSY,BOTTOM,SIL+BLK+BLK

53066-0632-13B

$461.59

53066A

SEAT-ASSY,BACK,SIL+BLK+SIL

53066-0633-64L

$501.57

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,6.5X16X2

92022-1565

$3.92

92043

PIN

92043-0991

$3.04

92139

BUSHING

92139-0230

$4.61

92139A

BUSHING

92139-0967

$2.08

92145

SPRING,SEAT LATCH

92145-0022

$7.15

92145A

SPRING,ADJUST LEVER

92145-1858

$8.44

92154

BOLT,SOCKET,6X18

92154-0139

$1.74

92154A

BOLT,FLANGED,10X16

92154-2089

$7.35

92154B

BOLT-FLANGED,8X16

92154-2670

$2.23

92154C

BOLT,ADJUST LEVER

92154-3923

$37.01

92154D

BOLT,FLANGED,6X14

92154-3968

$2.00

92154E

BOLT,SOCKET,6X45

92154-4135

$2.58

92161

DAMPER,SEAT

92161-1489

$3.35

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,12X18

130BA1218

$2.80

130B

BOLT-FLANGED,12X22

130BA1222

$3.04

130C

BOLT-FLANGED,8X35

130CA0835

$1.78

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.35
