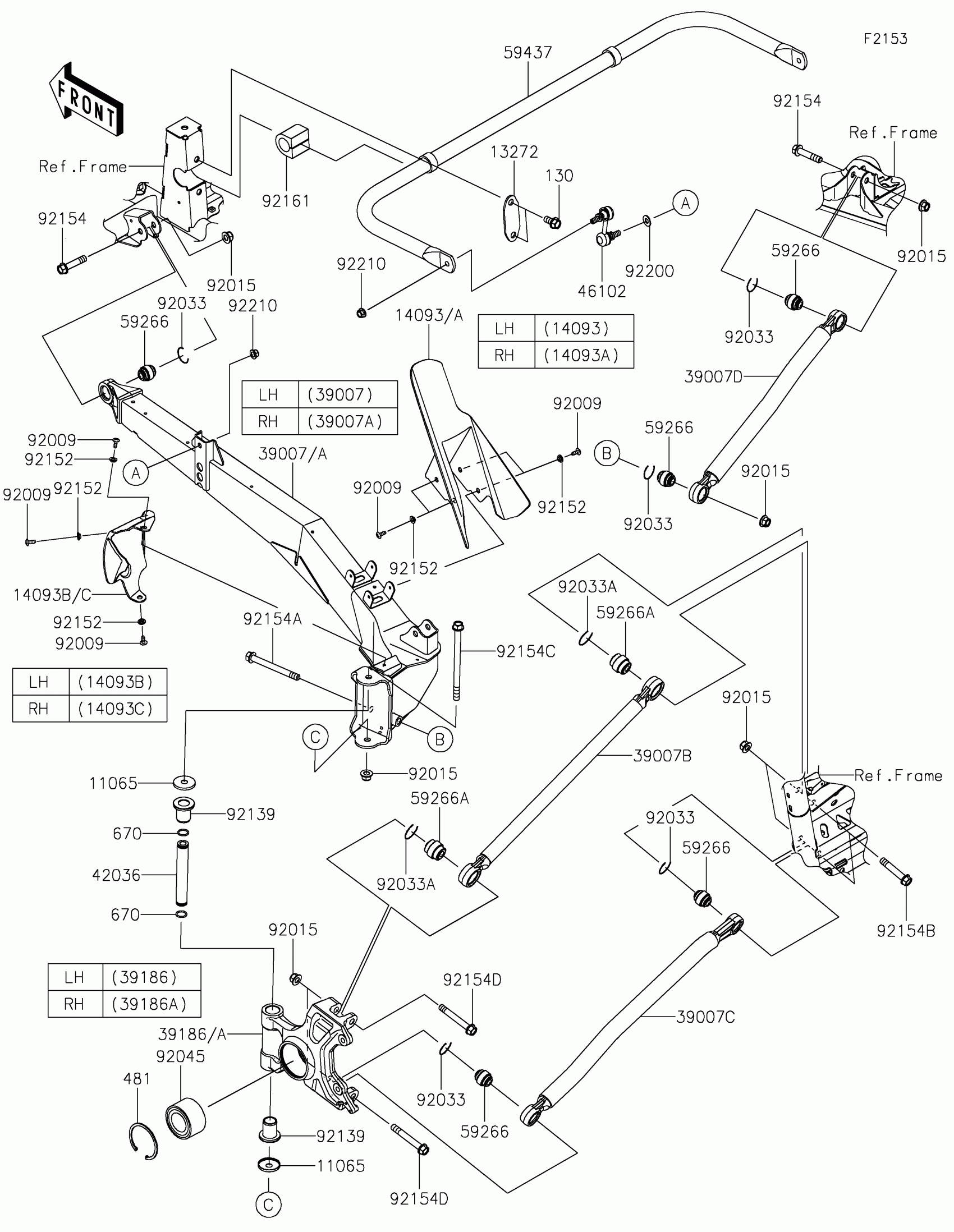

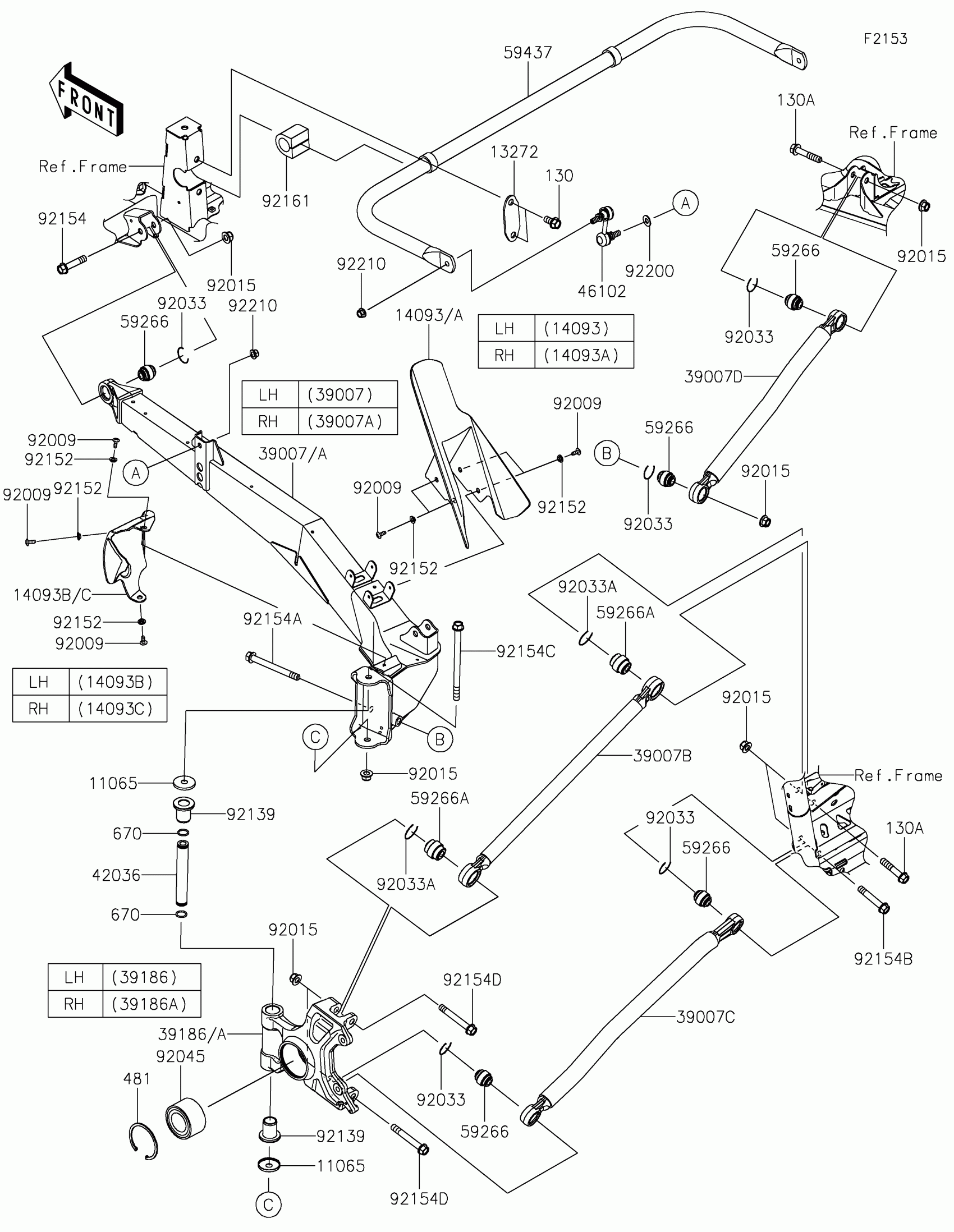

Kawasaki TERYX KRX® 1000 TRAIL EDITION Rear Suspension Diagram

#

Description
Price

11065

CAP

11065-1305

$2.08

13272

PLATE

13272-2728

$2.97

14093

COVER,RR SHOCK,LH

14093-0955

$20.59

14093A

COVER,RR SHOCK,RH

14093-0956

$20.59

14093B

COVER,TRAILING ARM,LH

14093-0994

$5.14

14093C

COVER,TRAILING ARM,RH

14093-0995

$5.14

39007

ARM-SUSP,TRAILING,LH,P.P.N.YEL

39007-0428-66P

$570.22

39007A

ARM-SUSP,TRAILING,RH,P.P.N.YEL

39007-0429-66P

$570.22

39007B

ARM-SUSP,CONTROL,RR,UPP,P.P.N.

39007-0430-66P

$245.87

39007C

ARM-SUSP,CONTROL,RR,LWR,P.P.N.

39007-0431-66P

$363.27

39007D

ARM-SUSP,CONTROL,FR,P.P.N.YELL

39007-0432-66P

$325.74

39186

KNUCKLE,RR,LH

39186-0325

$230.70

39186A

KNUCKLE,RR,RH

39186-0326

$230.70

42036

SLEEVE,12.1X22X147

42036-0837

$56.85

46102

ROD,STABILIZER

46102-0638

$48.58

59266

JOINT-BALL

59266-0747

$18.09

59266A

JOINT-BALL

59266-0748

$27.48

59437

STABILIZER,RR

59437-0024

$182.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92033

RING-SNAP

92033-0802

$1.36

92033A

RING-SNAP

92033-0803

$1.36

92045

BEARING-BALL,40X74X42

92045-0920

$100.57

92139

BUSHING

92139-0938

$8.92

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,FLANGED,12X55

92154-0289

$9.89

92154A

BOLT,FLANGED,12X117

92154-0867

$12.74

92154B

BOLT,FLANGED,12X68

92154-3927

$7.78

92154C

BOLT,FLANGED,12X175

92154-3928

$18.06

92154D

BOLT,FLANGED,12X86

92154-3929

$8.74

92161

DAMPER

92161-2189

$14.71

92200

WASHER,10.3X23X1.6

92200-0724

$3.74

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,12X25

130CA1225

$7.74

481

CIRCLIP-TYPE-C

481J7500

$5.48

670

O RING,18MM

670B2018

$1.42
