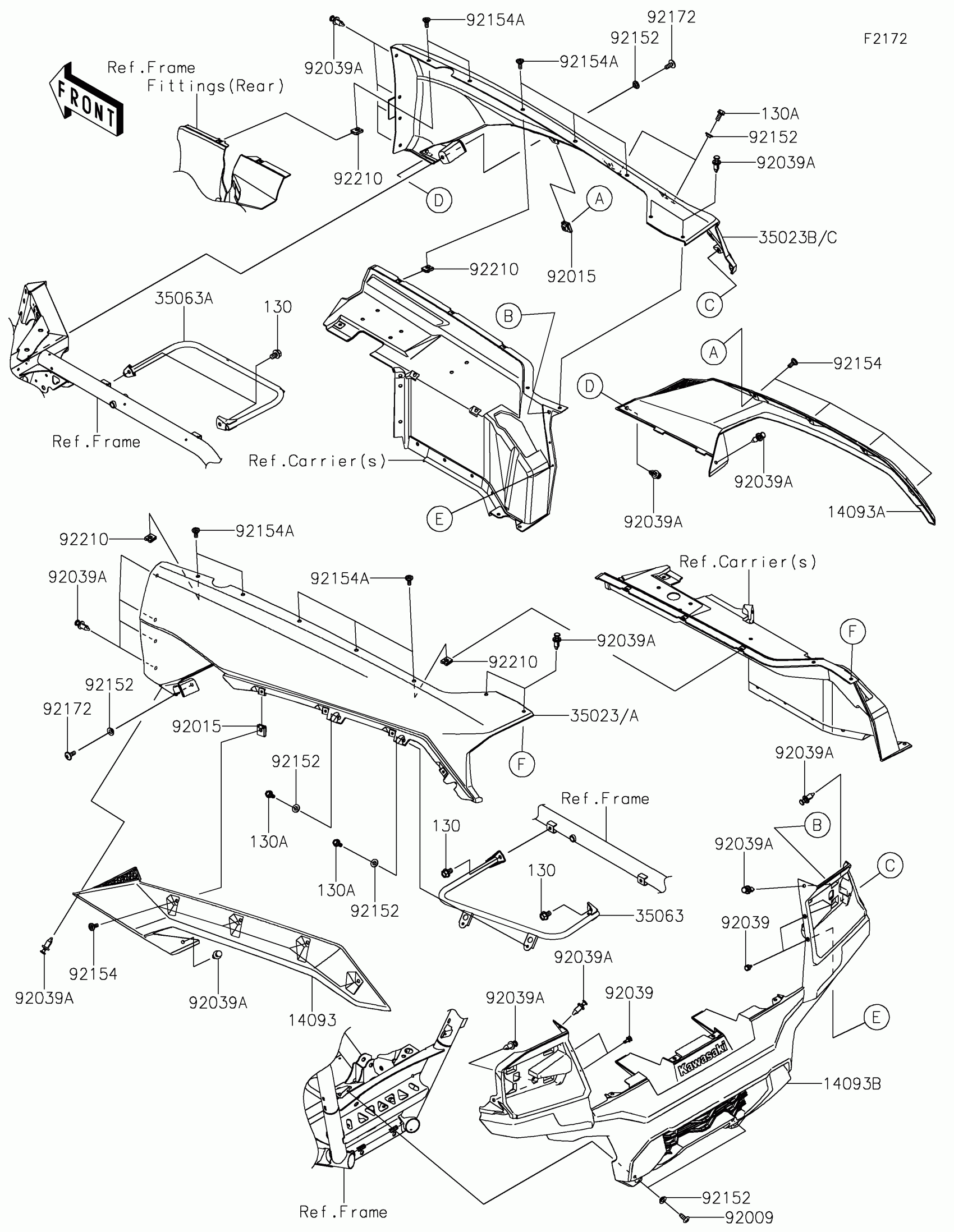

Kawasaki TERYX KRX® 1000 TRAIL EDITION Rear Fender(s) Diagram

Description

Price

14093

COVER,FLAP,LH

14093-0796

$85.87

14093A

COVER,FLAP,RH

14093-0797

$79.00

14093B

COVER,TAIL

14093-0798

$239.01

35023

FENDER-REAR,LH,F.C.GRAY

35023-0463-66B

$403.16

35023A

FENDER-REAR,RH,F.C.GRAY

35023-0464-66B

$403.16

35063

STAY,LH

35063-1462

$99.53

35063A

STAY,RH

35063-1463

$90.60

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-0046

$3.03

92039A

RIVET

92039-0776

$0.80

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT

92154-2474

$1.20

92154A

BOLT

92154-3957

$1.66

92172

SCREW,6X16

92172-0236

$0.73

92210

NUT

92210-1125

$3.66

130

BOLT-FLANGED,8X12

130BA0812

$0.79

130A

BOLT-FLANGED,6X14

130CA0614

$3.14
