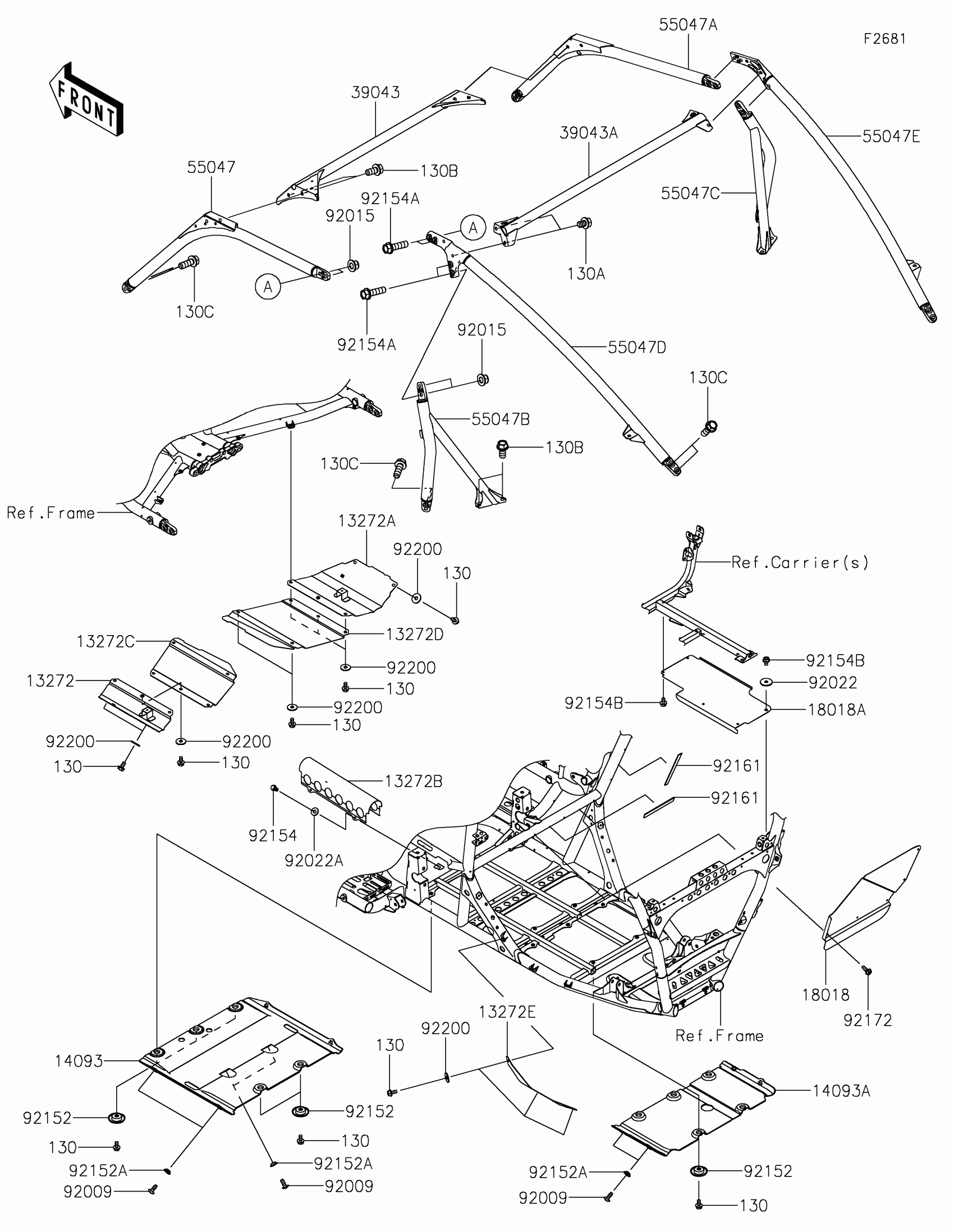

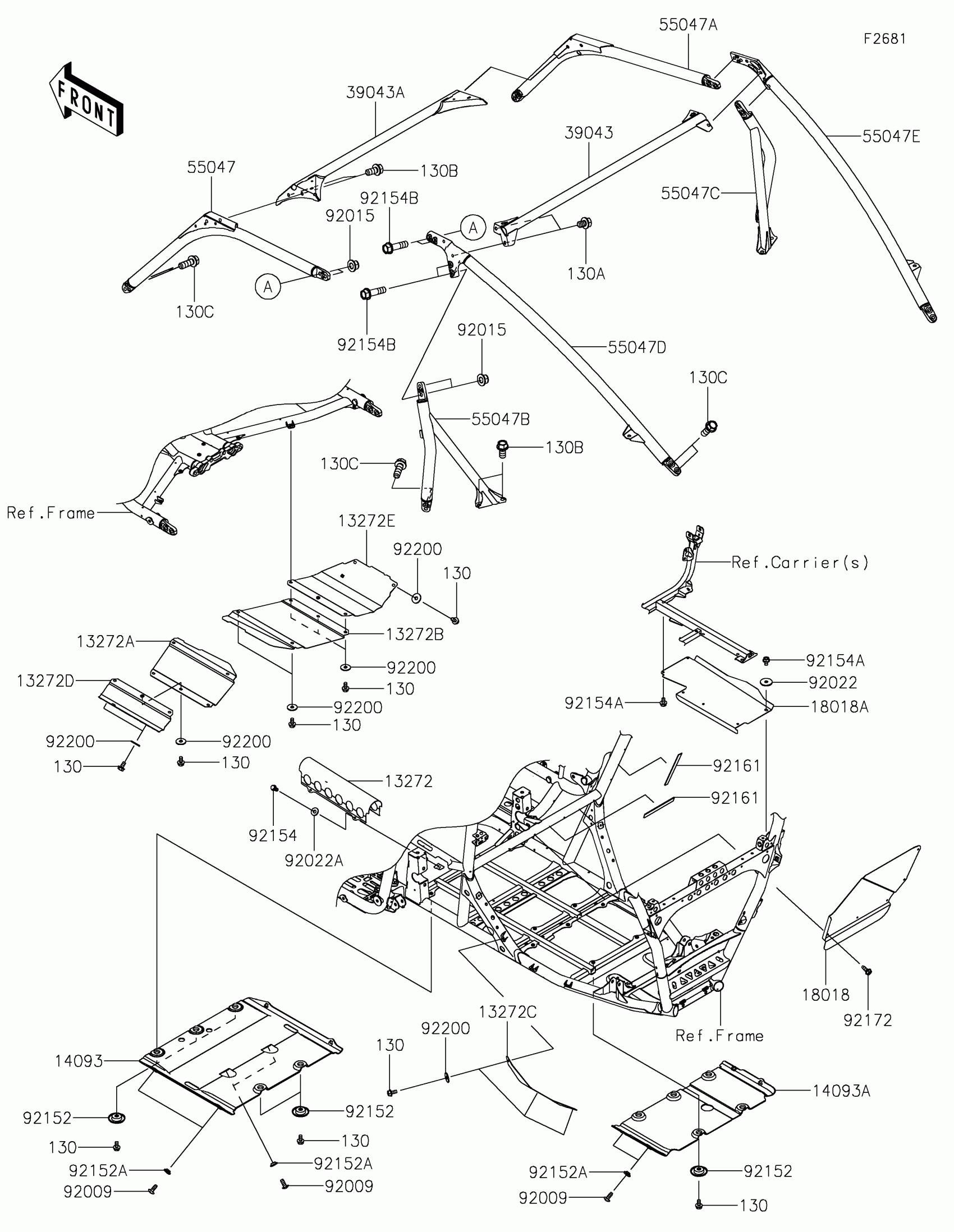

Kawasaki Teryx KRX® 1000 Trail Edition Guards/Cab Frame Diagram

PLATE,DRIVE SHAFT

13272-2642

$59.45

PLATE,SKID,FR,CNT,LH

13272-2737

$80.99

PLATE,SKID,FR,CNT,RH

13272-2738

$80.99

PLATE,CVT COVER

13272-3797

$26.18

PLATE,SKID,FR,LH

13272-4039

$71.37

PLATE,SKID,FR,RH

13272-4040

$71.37

COVER,SKID,CNT

14093-0811

$43.65

COVER,SKID,RR

14093-0877

$45.16

PLATE-HEAT GUARD

18018-0616

$33.59

PLATE-HEAT GUARD

18018-0646

$25.79

CROSSMEMBER-COMP,RR,TURQUOISE

39043-0032-72F

$158.45

CROSSMEMBER-COMP,FR,TURQUOISE

39043-0033-72F

$215.36

BAR-COMP,A-PILLAR,LH,TURQUOISE

55047-0399-72F

$168.60

BAR-COMP,A-PILLAR,RH,TURQUOISE

55047-0400-72F

$168.60

BAR-COMP,B-PILLAR,LH,TURQUOISE

55047-0407-72F

$122.99

BAR-COMP,B-PILLAR,RH,TURQUOISE

55047-0408-72F

$122.99

BAR-COMP,C-PILLAR,LH,TURQUOISE

55047-0409-72F

$192.38

BAR-COMP,C-PILLAR,RH,TURQUOISE

55047-0410-72F

$192.38

SCREW,TAPPING,6X16

92009-1166

$5.52

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

WASHER,6.5X24X2

92022-1690

$3.92

WASHER

92022-2247

$0.62

COLLAR

92152-0784

$2.12

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

BOLT,FLANGED,6X12

92154-2922

$1.94

BOLT,FLANGED,6X10

92154-4159

$1.59

BOLT,FLANGED,12X45

92154-7076

$9.47

DAMPER,10X85X1

92161-1964

$3.21

SCREW,TAPPING,6X16

92172-0869

$1.48

WASHER,6.5X20X1.6

92200-0283

$1.40

BOLT-FLANGED,6X12

130CA0612

$3.96

BOLT-FLANGED,12X16

130CA1216

$2.75

BOLT-FLANGED,12X25

130CA1225

$7.74

BOLT-FLANGED,12X35

130CA1235

$3.63
