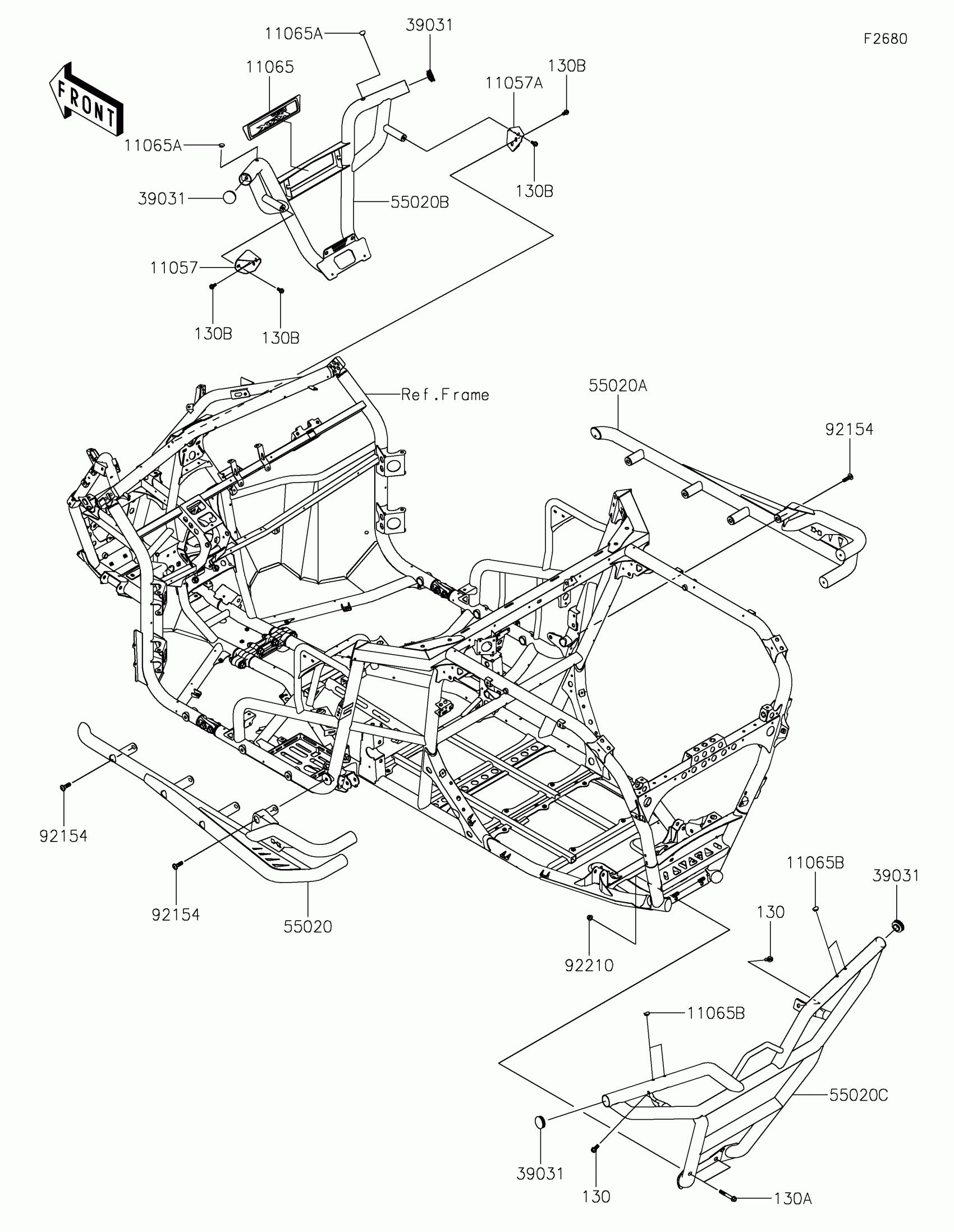

Kawasaki TERYX KRX® 1000 TRAIL EDITION Guard(s) Diagram

Description

Price

11057

BRACKET,LH

11057-4169

$21.48

11057A

BRACKET,RH

11057-4170

$21.48

11065

CAP,FR GUARD

11065-1348

$18.50

11065A

CAP,HOLE PLUG

11065-1349

$4.95

11065B

CAP,HOLE PLUG

11065-1350

$2.49

39031

CAP-END

39031-0021

$5.59

55020

GUARD,NERF BAR,LH,T.P.N.YELLOW

55020-2316-66Q

$330.48

55020A

GUARD,NERF BAR,RH,T.P.N.YELLOW

55020-2317-66Q

$330.48

55020B

GUARD,FR,T.P.N.YELLOW

55020-2318-66Q

$203.97

55020C

GUARD,RR,T.P.N.YELLOW

55020-2319-66Q

$289.87

92154

BOLT,FLANGED,10X35

92154-4157

$9.91

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,10X20

130BA1020

$3.35

130A

BOLT-FLANGED,10X65

130BA1065

$2.65

130B

BOLT-FLANGED,8X16

130CA0816

$2.49
