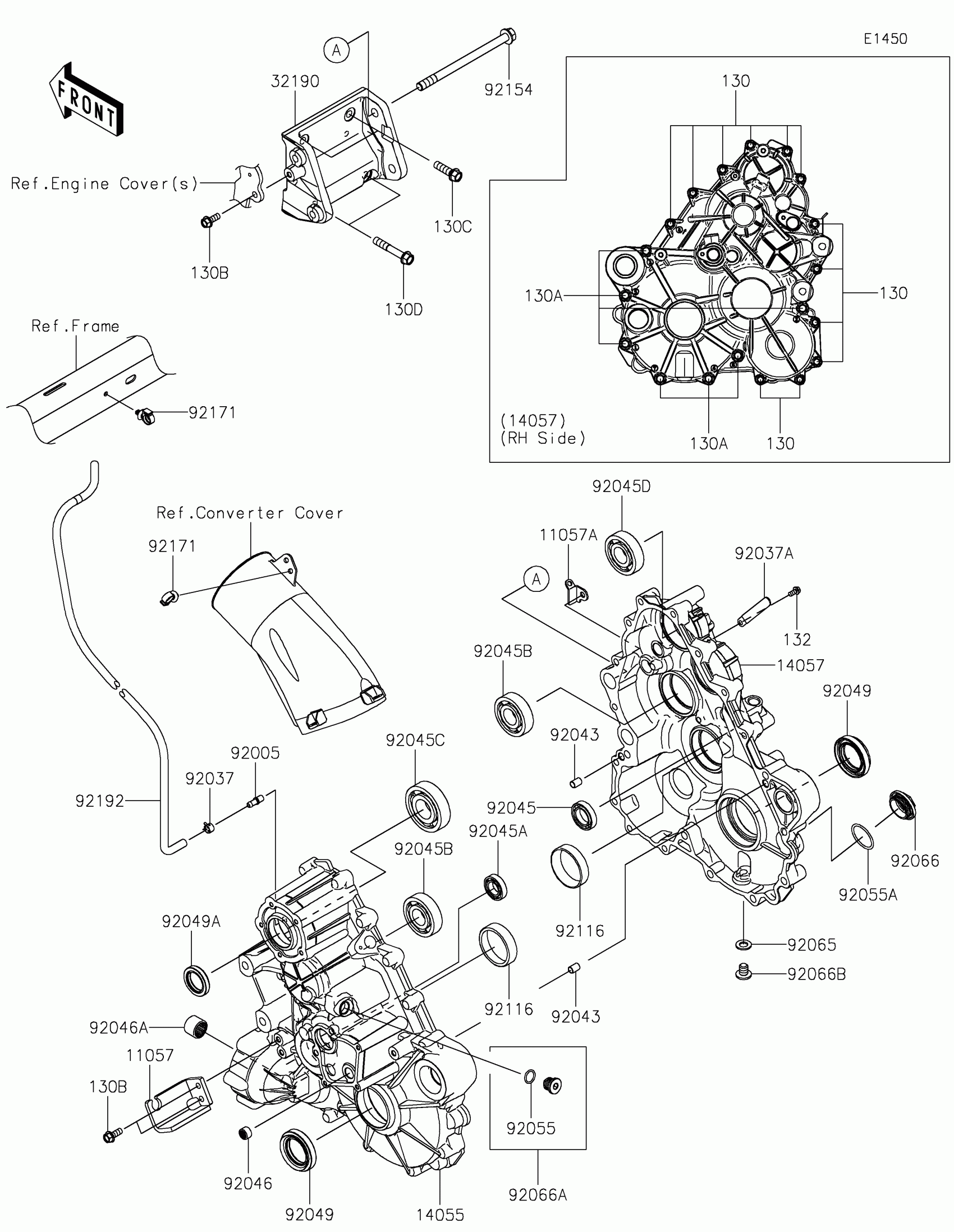

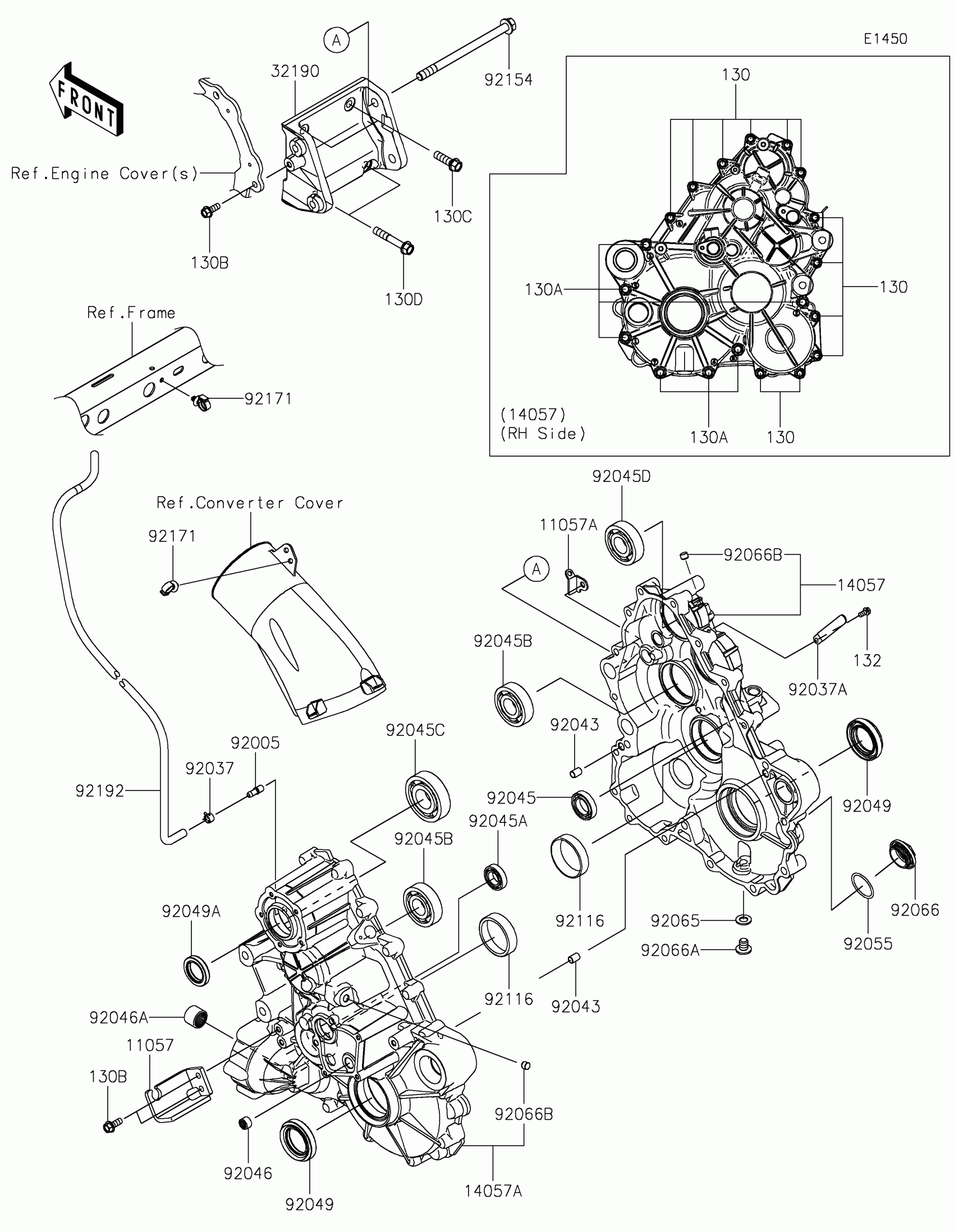

Kawasaki Teryx KRX® 1000 Trail Edition Gear Box Diagram
#
Description
Price
11057
BRACKET,CABLE
11057-1898
$9.08
11057A
BRACKET
11057-4094
$3.06
14057
CASE-COMP-GEAR
14057-0023
$366.73
14057A
CASE-COMP-GEAR
14057-0024
$618.42
32190
BRACKET-ENGINE
32190-0776
$372.06
92005
FITTING,BREATHER
92005-1127
$17.17
92037
CLAMP,TUBE
92037-1505
$4.76
92037A
CLAMP
92037-1993
$5.52
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92045
BEARING-BALL,#6905
92045-036
$27.88
92045A
BEARING-BALL,6904
92045-0705
$22.42
92045B
BEARING-BALL,6305RSH2
92045-0899
$32.73
92045C
BEARING-BALL,TMB306C3
92045-0900
$29.01
92045D
BEARING-BALL,6305
92045-0947
$18.82
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046A
BEARING-NEEDLE
92046-0039
$24.36
92049
SEAL-OIL,TC9Y 40X62X10X17.2
92049-0815
$13.57
92049A
SEAL-OIL,HTC 30X45X8
92049-0848
$16.41
92055
RING-O,35.8MM
92055-1281
$7.34
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,36X7.5
92066-0744
$8.22
92066A
PLUG,12X15
92066-0943
$18.22
92066B
PLUG
92066-1013
$2.67
92116
BEARING-ROLLER,HC30305J
92116-0011
$9.98
92154
BOLT,12X175
92154-3859
$18.55
92171
CLAMP
92171-0453
$3.54
92192
TUBE,5.8X10.8X935
92192-1921
$16.34
130
BOLT-FLANGED,8X45
130BA0845
$1.61
130A
BOLT-FLANGED,10X55
130BA1055
$2.31
130B
BOLT-FLANGED,8X20
130CA0820
$1.71
130C
BOLT-FLANGED,10X35
130CA1035
$6.75
130D
BOLT-FLANGED,10X60
130CA1060
$3.60
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
