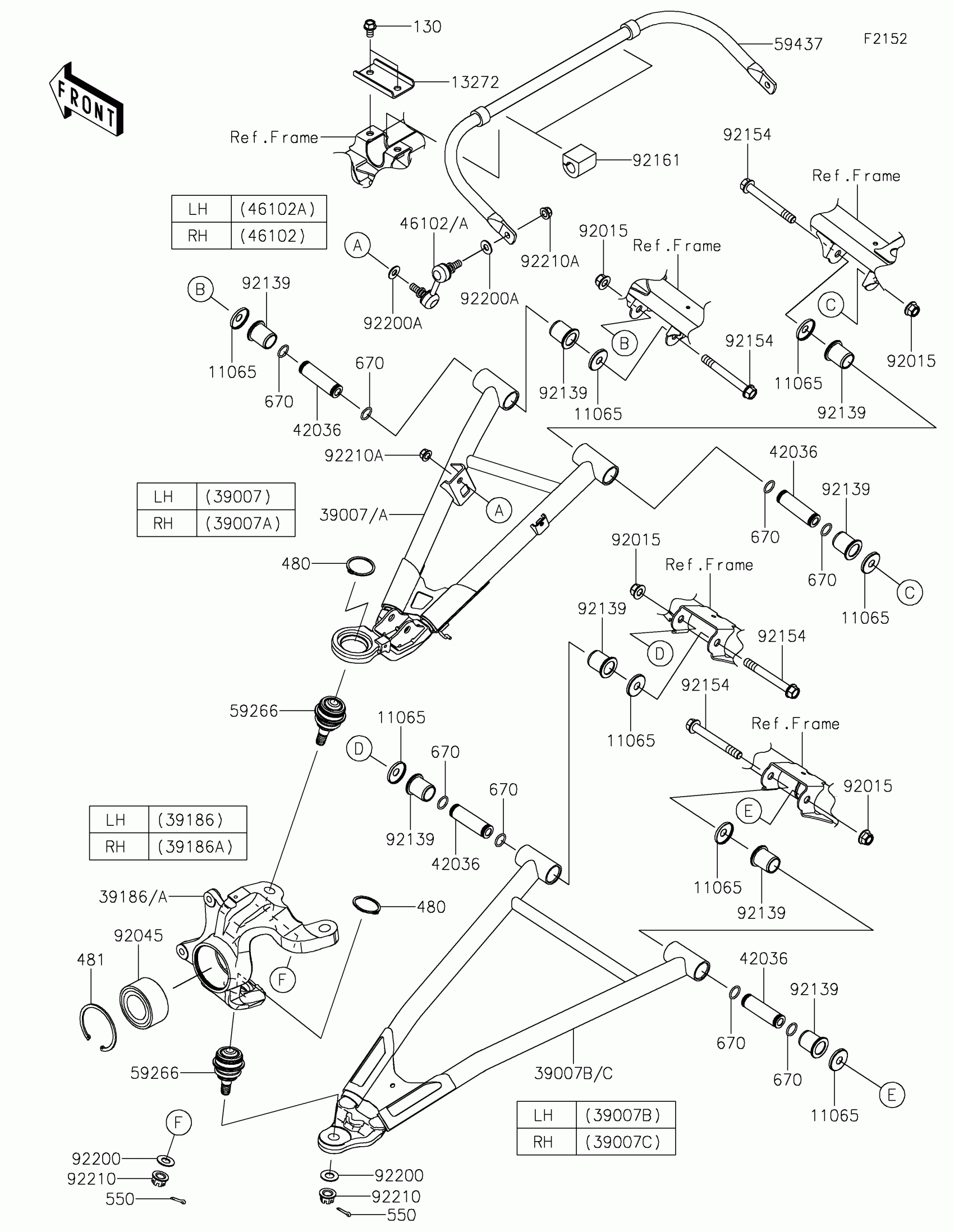

Kawasaki TERYX KRX® 1000 TRAIL EDITION Front Suspension Diagram

Description

Price

11065

CAP

11065-0253

$3.87

13272

PLATE

13272-2677

$2.45

39007

ARM-SUSP,FR,LWR,LH,P.R.ORANGE

39007-0463-75G

$228.59

39007A

ARM-SUSP,FR,LWR,RH,P.R.ORANGE

39007-0464-75G

$228.59

39007B

ARM-SUSP,FR,UPP,LH,P.R.ORANGE

39007-0479-75G

$286.65

39007C

ARM-SUSP,FR,UPP,RH,P.R.ORANGE

39007-0480-75G

$286.65

39186

KNUCKLE,FR,LH

39186-0333

$212.64

39186A

KNUCKLE,FR,RH

39186-0334

$212.64

42036

SLEEVE,12.1X22X76

42036-0836

$35.18

46102

ROD,STABILIZER,LH

46102-0100

$48.58

46102A

ROD,STABILIZER,RH

46102-0101

$48.58

59266

JOINT-BALL

59266-0738

$28.50

59437

STABILIZER,FR

59437-0025

$173.73

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92045

BEARING-BALL,40X74X36

92045-0919

$103.68

92139

BUSHING

92139-0937

$8.22

92154

BOLT,FLANGED,12X100

92154-1318

$7.59

92161

DAMPER

92161-2413

$3.24

92200

WASHER,14.2X28X1.5

92200-0217

$3.90

92200A

WASHER,10.3X23X1.6

92200-0724

$3.74

92210

NUT,CASTLE,14MM

92210-0104

$5.52

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,10X16

130CA1016

$3.35

480

CIRCLIP-TYPE-C,42MM

480J4200

$3.26

481

CIRCLIP-TYPE-C

481J7500

$5.48

550

PIN-COTTER,3.0X25

550AA3025

$0.62

670

O RING,18MM

670B2018

$1.42
