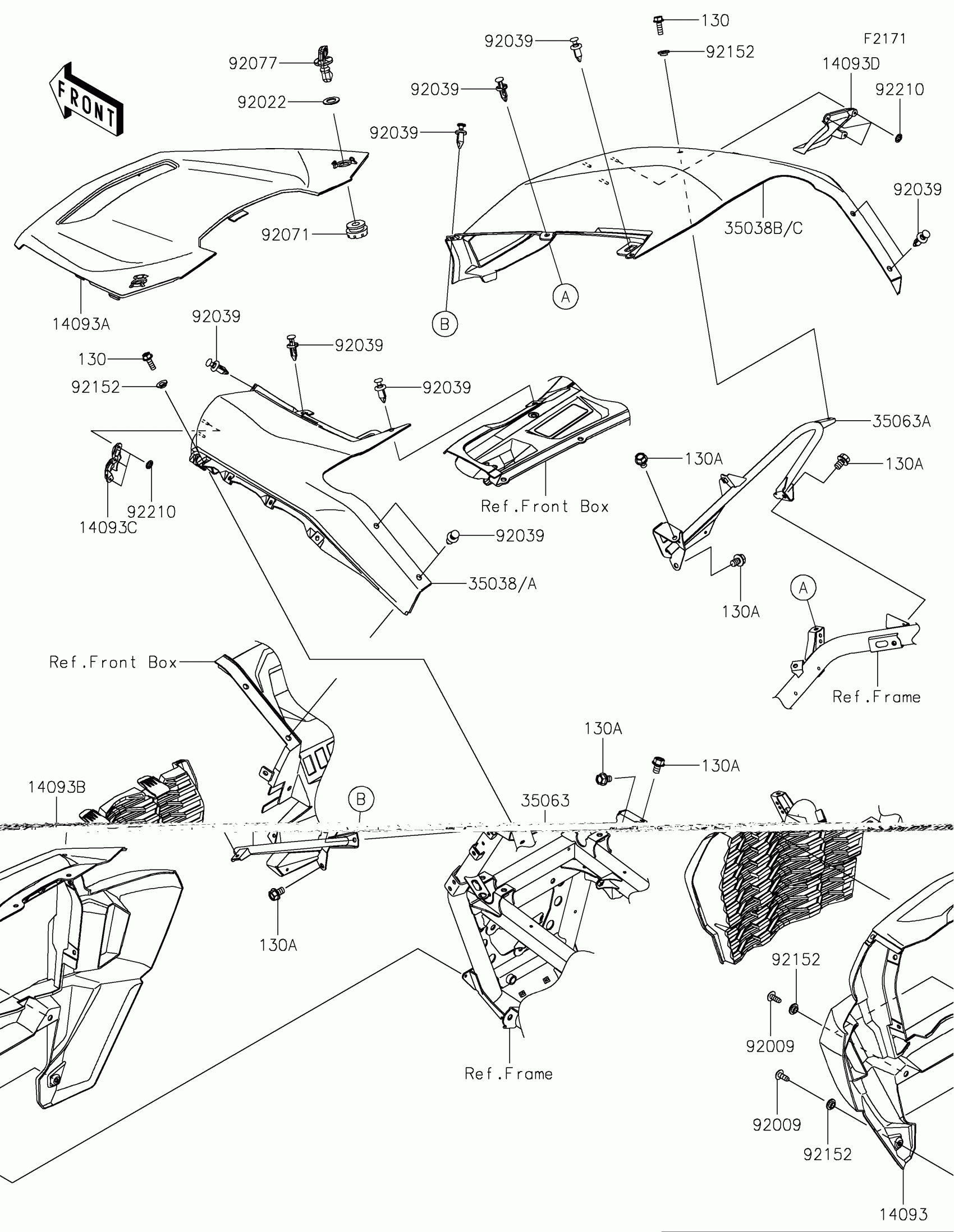

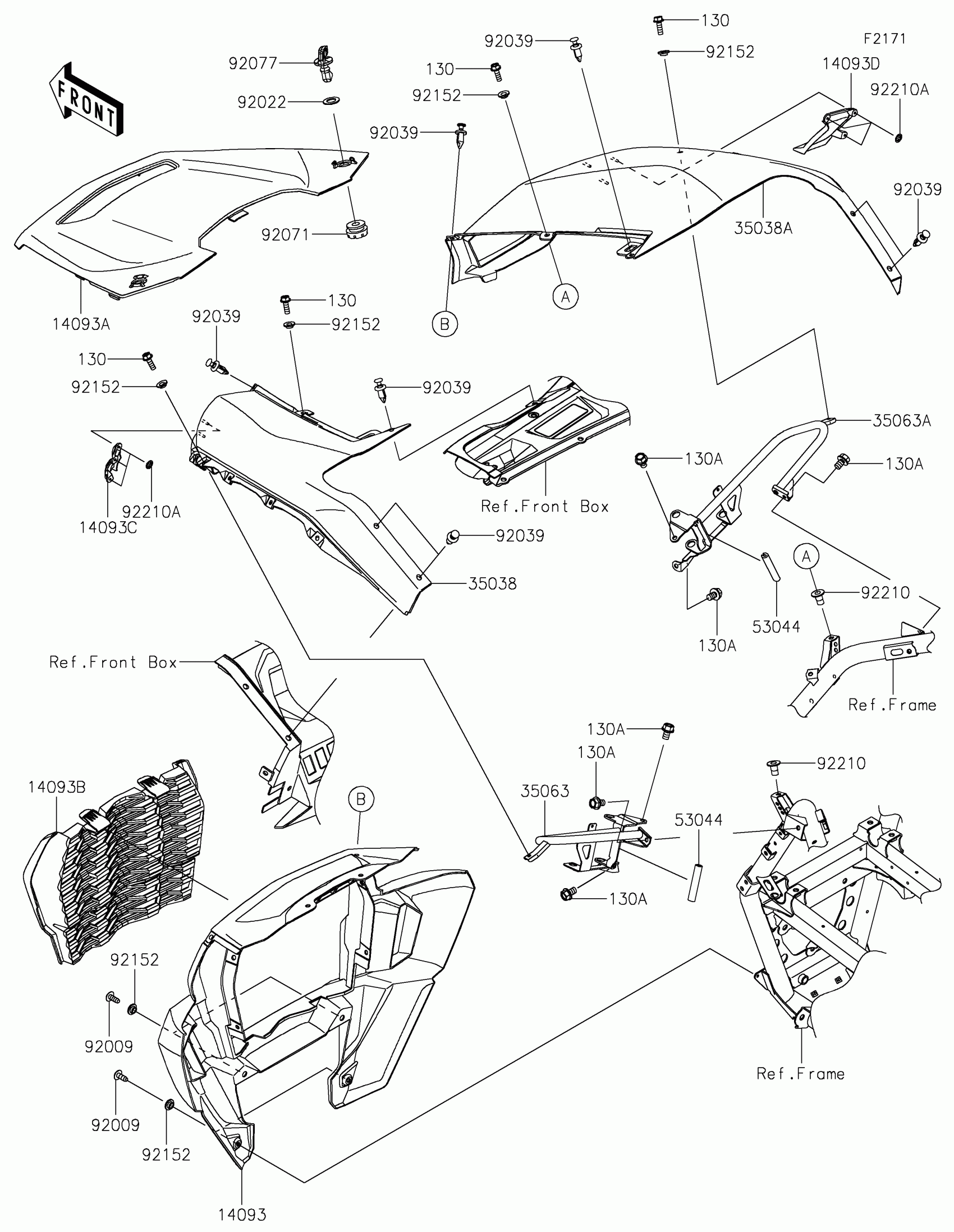

Kawasaki TERYX KRX® 1000 TRAIL EDITION Front Fender(s) Diagram

Description

Price

14093

COVER,FR

14093-0804

$201.97

14093A

COVER,HOOD,S.BLACK

14093-0805-839

$356.58

14093B

COVER,FR GRILL

14093-0810

$100.09

14093C

COVER,LH

14093-0958

$3.82

14093D

COVER,RH

14093-0959

$3.82

35038

FENDER-FRONT,LH,F.C.GRAY

35038-0017-66B

$493.96

35038A

FENDER-FRONT,RH,F.C.GRAY

35038-0018-66B

$493.96

35063

STAY,LH

35063-1464

$106.51

35063A

STAY,RH

35063-1465

$106.51

53044

TRIM,L=50

53044-1277

$5.82

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0746

$1.16

92077

KNOB

92077-0033

$3.04

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92210

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.95

92210A

NUT

92210-1796

$0.39

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X12

130BA0812

$0.95
