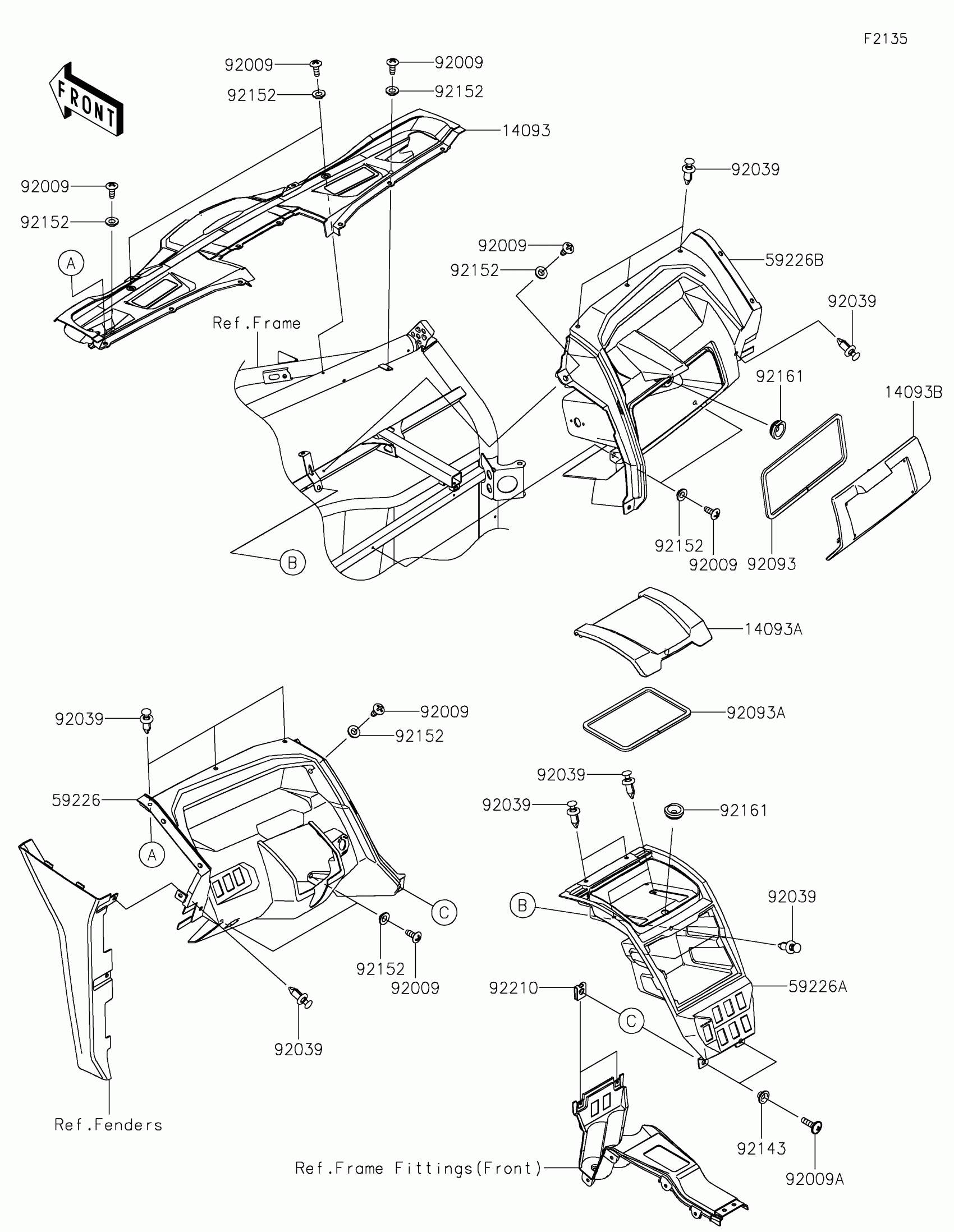

Kawasaki Teryx KRX® 1000 Trail Edition Front Box Diagram

Description

Price

14093

COVER

14093-0829

$149.21

14093A

COVER,STORAGE,UPP

14093-0831

$17.14

14093B

COVER,STORAGE,LWR

14093-0832

$49.41

59226

PANEL-CONTROL,LH

59226-0745

$130.12

59226A

PANEL-CONTROL,CNT

59226-0755

$105.86

59226B

PANEL-CONTROL,RH

59226-0760

$171.27

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92039

RIVET

92039-0776

$1.19

92093

SEAL,10X6X825

92093-0729

$3.29

92093A

SEAL,10X6X725

92093-0730

$3.21

92143

COLLAR

92143-1057

$5.00

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92161

DAMPER,7.8X30X11

92161-1953

$1.19

92210

NUT

92210-1125

$4.76
