Description

Price

13320

LEVER-ASSY,LATCH,RH

13320-0034

$82.58

13320A

LEVER-ASSY,LATCH,LH

13320-0035

$82.58

14093

COVER,DOOR,LH,UPP,S.BLACK

14093-0814-839

$150.13

14093A

COVER,DOOR,RH,UPP,S.BLACK

14093-0815-839

$150.13

14093B

COVER,DOOR,LH,LWR

14093-0816

$114.22

14093C

COVER,DOOR,RH,LWR

14093-0817

$114.22

14093D

COVER,DOOR,LH,INNER

14093-0851

$175.55

14093E

COVER,DOOR,RH,INNER

14093-0852

$175.55

27012

HOOK,DOOR

27012-0860

$8.54

39051

FRAME-COMP-SIDE,LH

39051-0019

$192.50

39051A

FRAME-COMP-SIDE,RH

39051-0020

$192.50

46001

HANDLE-ASSY,DOOR,RH,INNER

46001-0015

$41.51

46001A

HANDLE-ASSY,DOOR,LH,INNER

46001-0016

$41.51

46001B

HANDLE-ASSY,DOOR,OUTER

46001-0017

$28.37

54010

CABLE

54010-0635

$21.37

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT

92015-1700

$8.58

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER

92022-2247

$0.62

92039

RIVET

92039-0776

$1.19

92043

PIN,DOOR

92043-0973

$8.66

92139

BUSHING,DOOR

92139-0932

$0.64

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,SOCKET,6X16

92154-4068

$2.32

92161

DAMPER,9X28X24.3

92161-1456

$3.71

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-1333

$2.32

92210

NUT,CAP,6MM

92210-0003

$0.64

130

BOLT-FLANGED,6X12

130CA0612

$3.96

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

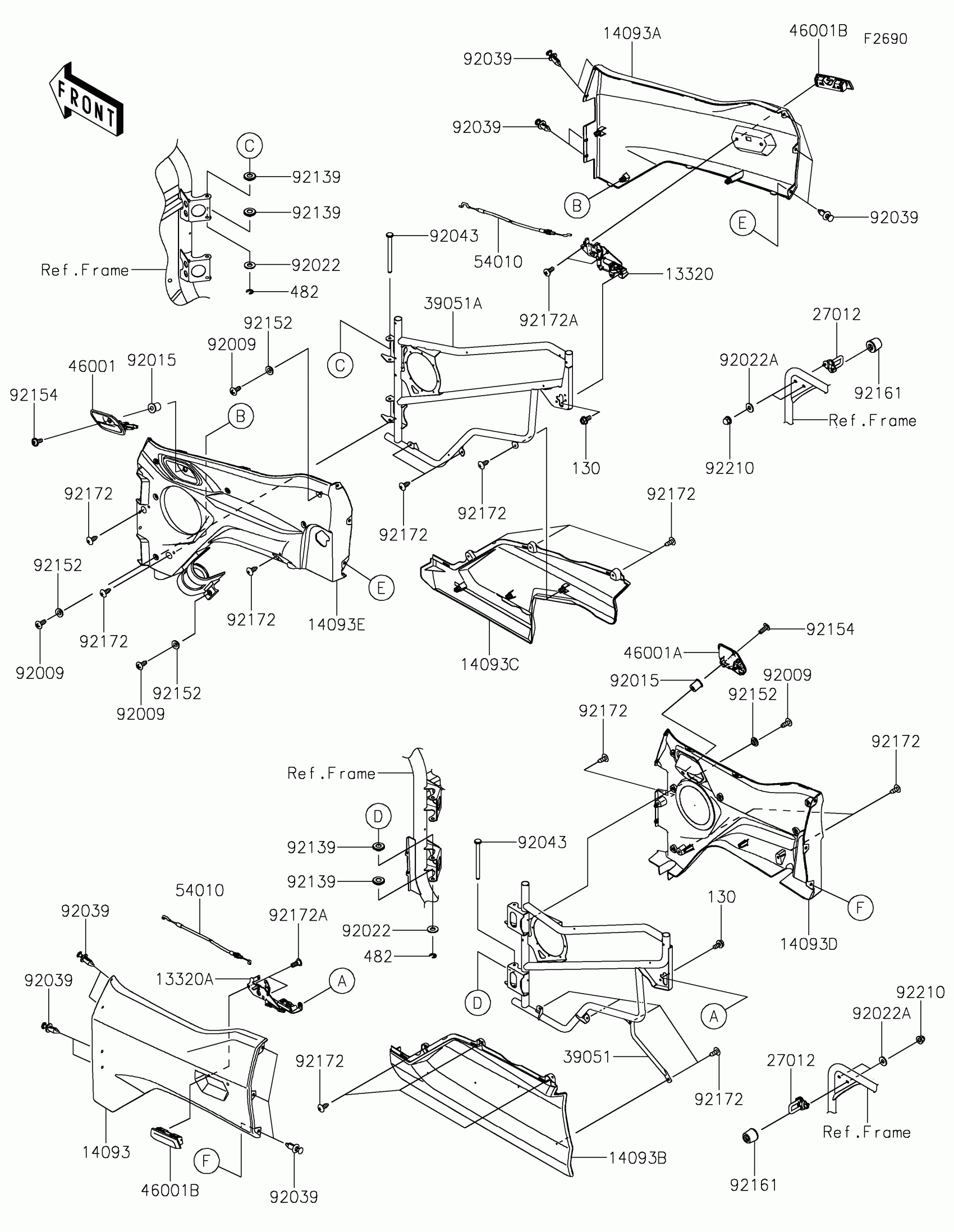

Kawasaki TERYX KRX® 1000 TRAIL EDITION Door Diagram

LEVER-ASSY,LATCH,RH

LEVER-ASSY,LATCH,LH

COVER,DOOR,LH,UPP,S.BLACK

COVER,DOOR,RH,UPP,S.BLACK

COVER,DOOR,LH,LWR

COVER,DOOR,RH,LWR

COVER,DOOR,LH,INNER

COVER,DOOR,RH,INNER

HOOK,DOOR

FRAME-COMP-SIDE,LH

FRAME-COMP-SIDE,RH

HANDLE-ASSY,DOOR,RH,INNER

HANDLE-ASSY,DOOR,LH,INNER

HANDLE-ASSY,DOOR,OUTER

CABLE

SCREW,TAPPING,6X16

NUT

WASHER,8.2X18X1.5

WASHER

RIVET

PIN,DOOR

BUSHING,DOOR

COLLAR,6.3X9.5X4.1

BOLT,SOCKET,6X16

DAMPER,9X28X24.3

SCREW,6X16

SCREW,6X16

NUT,CAP,6MM

BOLT-FLANGED,6X12

CIRCLIP-TYPE-E,6MM
