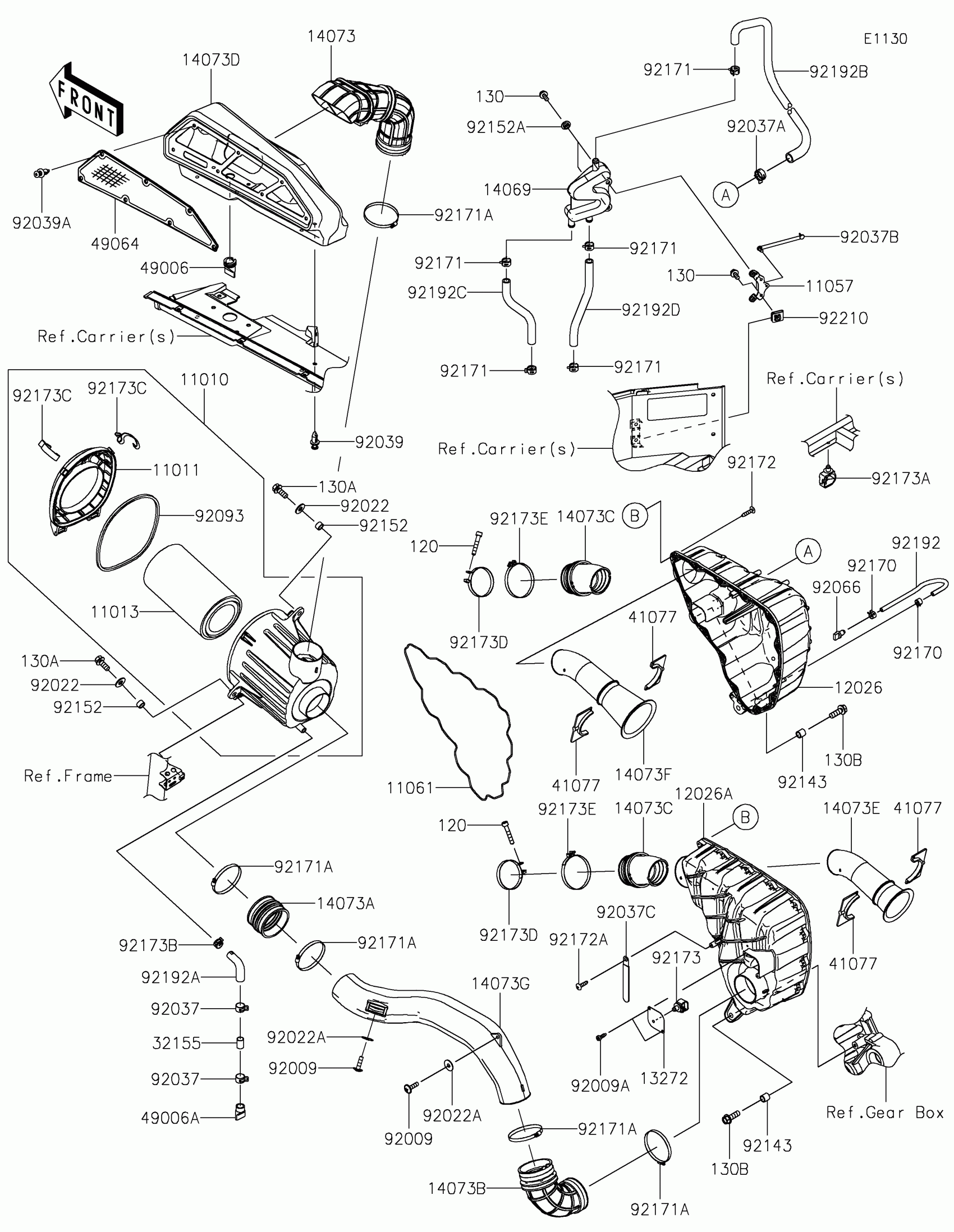

Kawasaki TERYX KRX® 1000 TRAIL EDITION Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0900

$158.07

11011

CASE-AIR FILTER,UPP

11011-0905

$13.41

11013

ELEMENT-AIR FILTER

11013-0782

$68.85

11057

BRACKET,BREATHER

11057-2431

$6.21

11061

GASKET,CHAMBER

11061-1312

$9.50

12026

CHAMBER,RH

12026-0019

$35.60

12026A

CHAMBER,LH

12026-0020

$36.71

13272

PLATE,TEMP SENSOR

13272-2711

$0.95

14069

BREATHER

14069-0032

$38.90

14073

DUCT,INTAKE,DIRTYSIDE

14073-0922

$42.19

14073A

DUCT,A/F CASE

14073-0923

$5.38

14073B

DUCT,CHAMBER

14073-0925

$13.51

14073C

DUCT,CHAMBER-THROTTLE

14073-0931

$11.64

14073D

DUCT,INTAKE,DIRTYSIDE BOX

14073-0954

$41.84

14073E

DUCT,INTAKE,#1 CYLINDER

14073-0956

$18.22

14073F

DUCT,INTAKE,#2 CYLINDER

14073-0957

$19.12

14073G

DUCT,A/F CASE-CHAMBER

14073-0963

$36.08

32155

PIPE,DRAIN

32155-4087

$6.30

41077

ADAPTER

41077-0737

$2.12

49006

BOOT

49006-0633

$2.21

49006A

BOOT

49006-1292

$7.77

49064

FILTER-AIR

49064-0012

$39.04

92009

SCREW,6X22

92009-1441

$4.31

92009A

SCREW,TAPPING,5X16

92009-1984

$2.58

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92022A

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP

92037-1594

$6.30

92037B

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037C

CLAMP

92037-1993

$5.52

92039

RIVET

92039-0776

$1.19

92039A

RIVET,TWO-PIECE CLIP

92039-0818

$1.59

92066

PLUG,DRAIN

92066-0782

$10.34

92093

SEAL,AIR FILTER CASE

92093-0726

$5.91

92143

COLLAR,8.8X12X11.5

92143-1340

$4.69

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.63

92152A

COLLAR,6.5X10X5.3

92152-1863

$6.52

92170

CLAMP

92170-2042

$1.30

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP

92171-1383

$4.40

92172

SCREW,TAPPING,5X25

92172-0432

$1.78

92172A

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP

92173-1463

$1.97

92173C

CLAMP,AIR FILTER CASE

92173-2023

$3.76

92173D

CLAMP,74MM

92173-2219

$6.28

92173E

CLAMP,88MM

92173-2256

$10.44

92192

TUBE,7X10X310

92192-1955

$5.03

92192A

TUBE,DRAIN

92192-2312

$2.87

92192B

TUBE,BREATHER-CHAMBER

92192-2337

$24.68

92192C

TUBE,CYL.HEAD,RH-BREATHER,LH

92192-2338

$9.72

92192D

TUBE,CYL.HEAD,LH-BREATHER,RH

92192-2339

$11.30

92210

NUT,CLIP,6MM

92210-1768

$4.37

120

BOLT-SOCKET,6X35

120CA0635

$2.06

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X20

130BA0820

$4.14

130B

BOLT-FLANGED,8X25

130BA0825

$2.95
