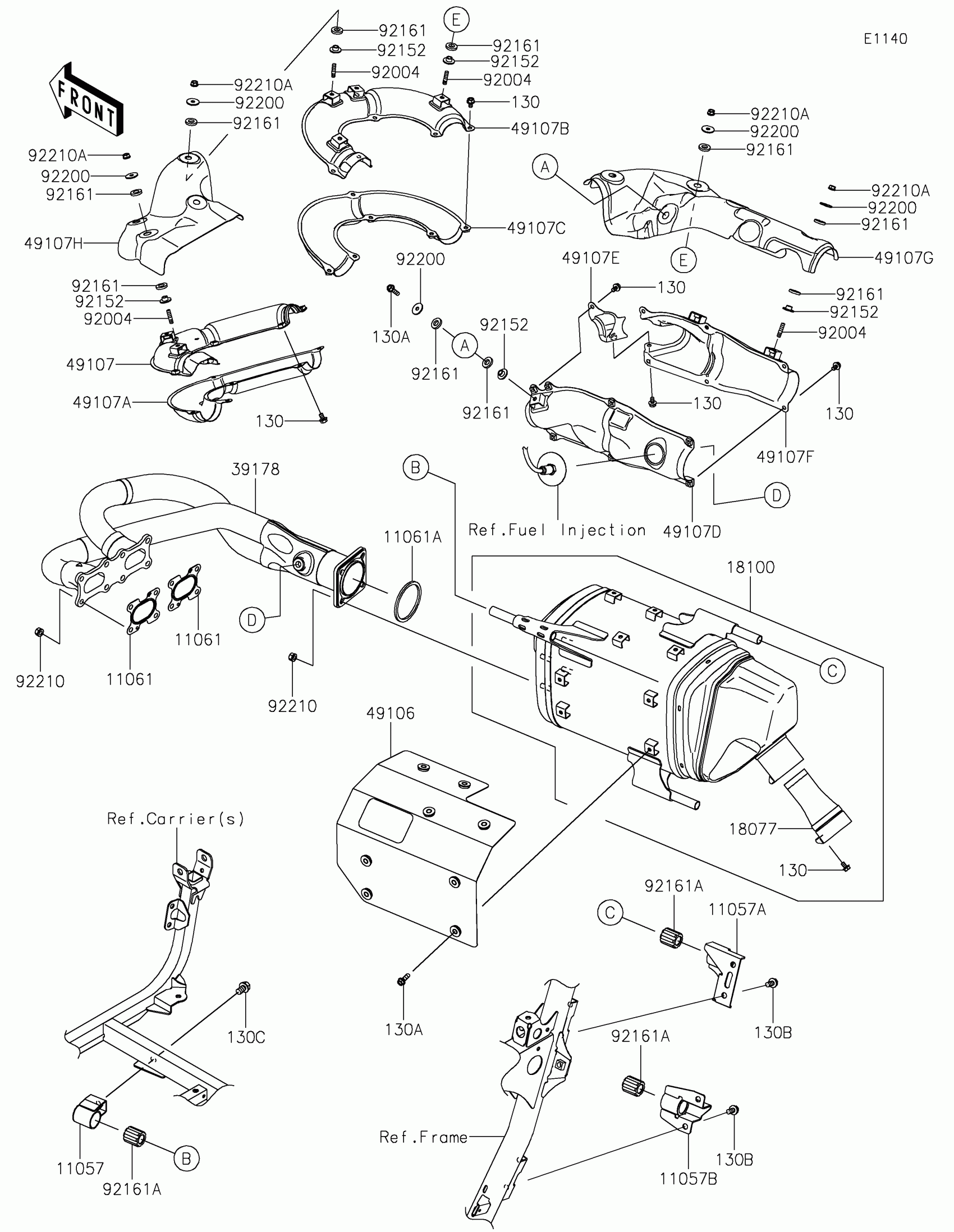

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Muffler(s) Diagram
#
Description
Price
11057
BRACKET,FRM-MUFFLER/FR
11057-3721
$24.23
11057A
BRACKET,FRM-MUFFLER/RR/UPP
11057-3722
$30.22
11057B
BRACKET,FRM-MUFFLER/RR/LWR
11057-3723
$28.44
11061
GASKET,CYL.HEAD-EXHAUST PIPE
11061-1310
$11.06
11061A
GASKET,EXHAUST PIPE-MUFFLER
11061-1311
$12.12
18077
ARRESTER-SPARK
18077-0045
$97.72
18100
BODY-ASSY-MUFFLER
18100-0605
$756.02
39178
MANIFOLD-COMP-EXHAUST
39178-0389
$1,140.84
49106
COVER-MUFFLER
49106-0847
$196.88
49107
COVER-EXHAUST PIPE,#1,UPP
49107-0814
$73.75
49107A
COVER-EXHAUST PIPE,#1,LWR
49107-0815
$32.47
49107B
COVER-EXHAUST PIPE,#2,UPP
49107-0816
$102.26
49107C
COVER-EXHAUST PIPE,#2,LWR
49107-0817
$39.10
49107D
COVER-EXHAUST PIPE,LH
49107-0819
$68.01
49107E
COVER-EXHAUST PIPE
49107-0820
$16.34
49107F
COVER-EXHAUST PIPE,RH
49107-0825
$105.56
49107G
COVER-EXHAUST PIPE
49107-0829
$263.82
49107H
COVER-EXHAUST PIPE
49107-0836
$221.53
92004
STUD,6X18
92004-0799
$1.36
92152
COLLAR
92152-0423
$3.90
92161
DAMPER
92161-0319
$3.90
92161A
DAMPER
92161-2274
$4.10
92200
WASHER,6.5X22X1.6
92200-2324
$2.32
92210
NUT,8MM
92210-1242
$2.41
92210A
NUT,6MM
92210-1787
$1.11
130
BOLT-FLANGED,6X10
130BD0610
$3.67
130A
BOLT-FLANGED,6X20
130BD0620
$3.72
130B
BOLT-FLANGED,8X16
130CA0816
$2.49
130C
BOLT-FLANGED,10X16
130CA1016
$3.35
