Transmission

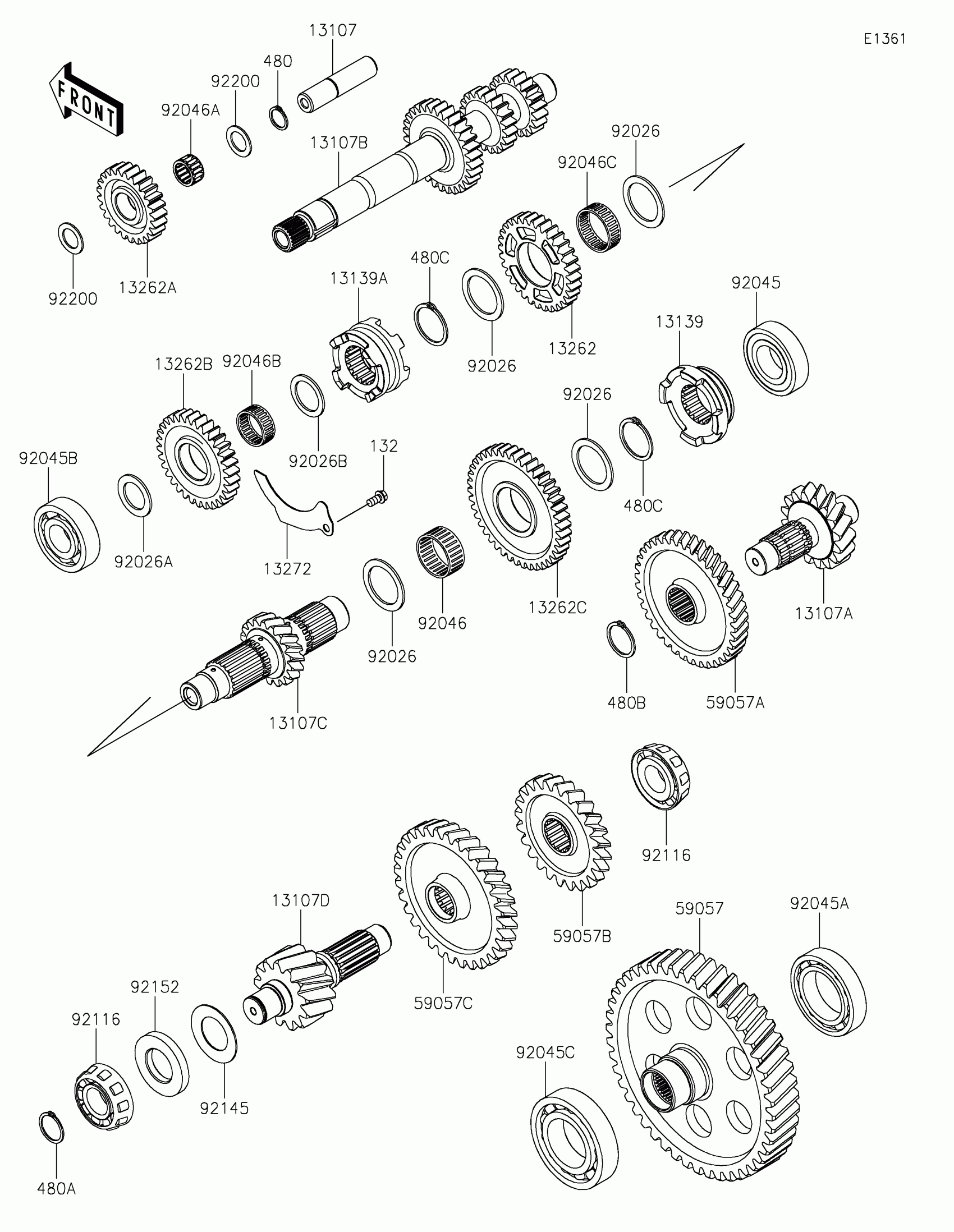

Kawasaki TERYX KRX® 1000 SE Transmission Diagram
#
13107
SHAFT,REVERSE IDLER
13107-0879
$40.82
13107A
SHAFT,3RD,16T
13107-0900
$196.88
13107B
SHAFT,INPUT
13107-0931
$438.43
13107C
SHAFT,2ND,18T
13107-0932
$235.77
13107D
SHAFT,4TH,13T
13107-0937
$260.99
13139
SHIFTER,LOW,19T
13139-0030
$126.39
13139A
SHIFTER,HIGH&REV,19T
13139-0037
$118.64
13262
GEAR,REV,32T
13262-1364
$110.95
13262A
GEAR,REVERSE IDLER,25T
13262-1567
$67.54
13262B
GEAR,HIGH,32T
13262-1568
$132.86
13262C
GEAR,LOW,42T
13262-1569
$176.10
13272
PLATE,OIL
13272-2570
$1.45
59057
GEAR-HELICAL,46T
59057-0029
$230.71
59057A
GEAR-HELICAL,38T
59057-0031
$132.67
59057B
GEAR-HELICAL,24T
59057-0037
$123.65
59057C
GEAR-HELICAL,32T
59057-0038
$162.70
92026
SPACER,35.2X47X2
92026-0765
$11.23
92026A
SPACER,25.2X38X2
92026-0856
$8.52
92026B
SPACER,28X38X2
92026-1299
Unavailable
92045
BEARING-BALL,6206Z
92045-0902
$16.74
92045A
BEARING-BALL,6009
92045-0903
$32.00
92045B
BEARING-BALL,6305ZUR3
92045-0926
$34.39
92045C
BEARING-BALL,TMB209
92045-0935
$44.80
92046
BEARING-NEEDLE,35X40X17
92046-0611
$17.11
92046A
BEARING-NEEDLE
92046-0634
$12.93
92046B
BEARING-NEEDLE
92046-0635
$12.14
92046C
BEARING-NEEDLE
92046-0636
$17.24
92116
BEARING-ROLLER,HC30305JRLFT
92116-0012
$22.81
92145
SPRING
92145-1837
$7.22
92152
COLLAR
92152-2526
$16.74
92200
WASHER,18.2X28X1.5
92200-0716
$3.02
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
480
CIRCLIP-TYPE-C,18MM
480J1800
$1.28
480A
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
480B
CIRCLIP
480J2900
$6.22
480C
CIRCLIP
480J3500
$2.75
