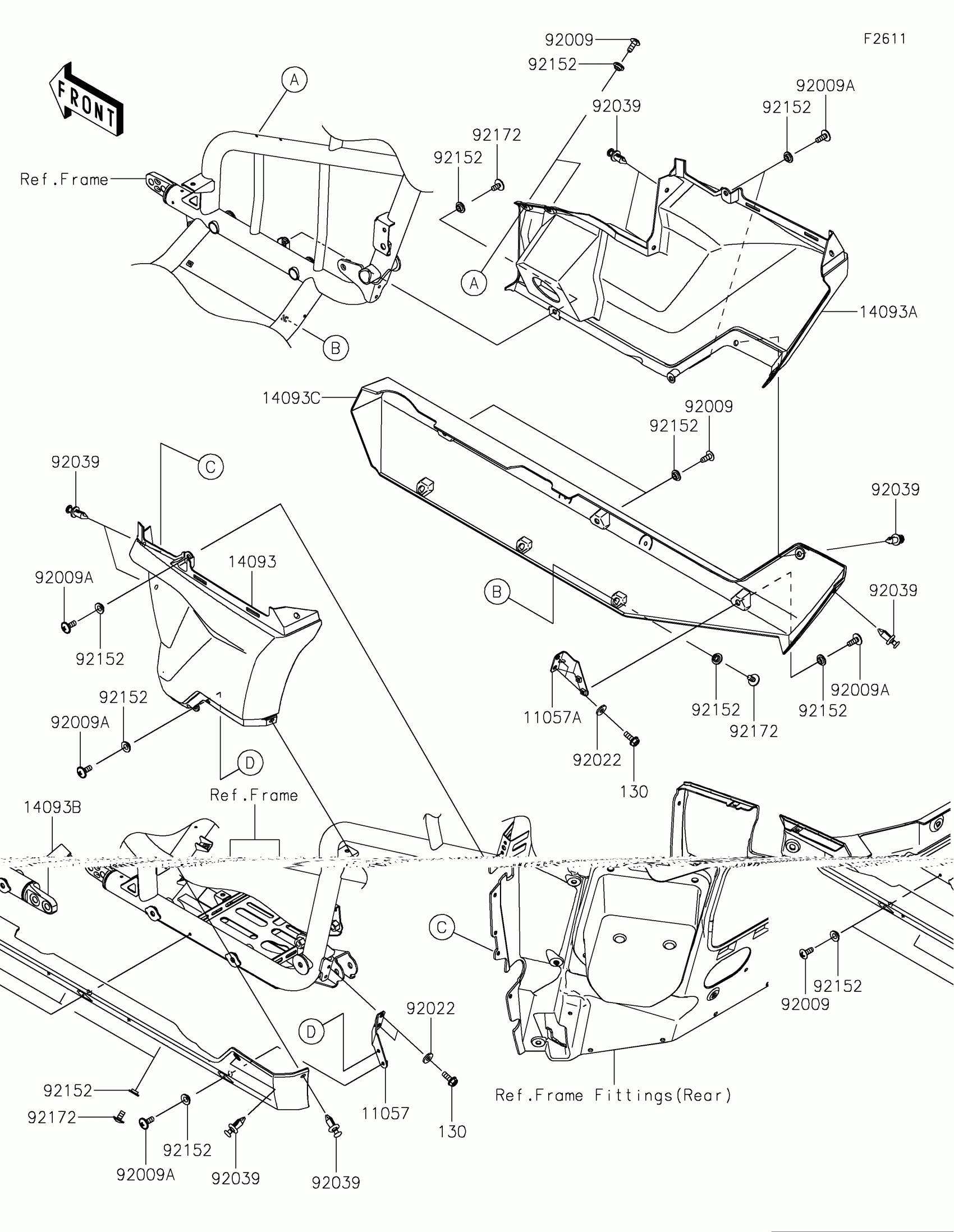

Kawasaki TERYX KRX® 1000 SE Side Covers Diagram

Description

Price

11057

BRACKET,SIDE COVER,LH

11057-4181

$5.76

11057A

BRACKET,SIDE COVER,RH

11057-4182

$5.76

14093

COVER,SIDE,RR,LH

14093-0825

$23.58

14093A

COVER,SIDE,RR,RH

14093-0826

$25.85

14093B

COVER,SIDE,LWR,LH

14093-0827

$81.33

14093C

COVER,SIDE,LWR,RH

14093-0828

$81.33

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X16X2

92022-1565

$3.92

92039

RIVET

92039-0776

$1.19

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92172

SCREW,6X12

92172-0853

$1.11

130

BOLT-FLANGED,6X16

130BA0616

$1.20
