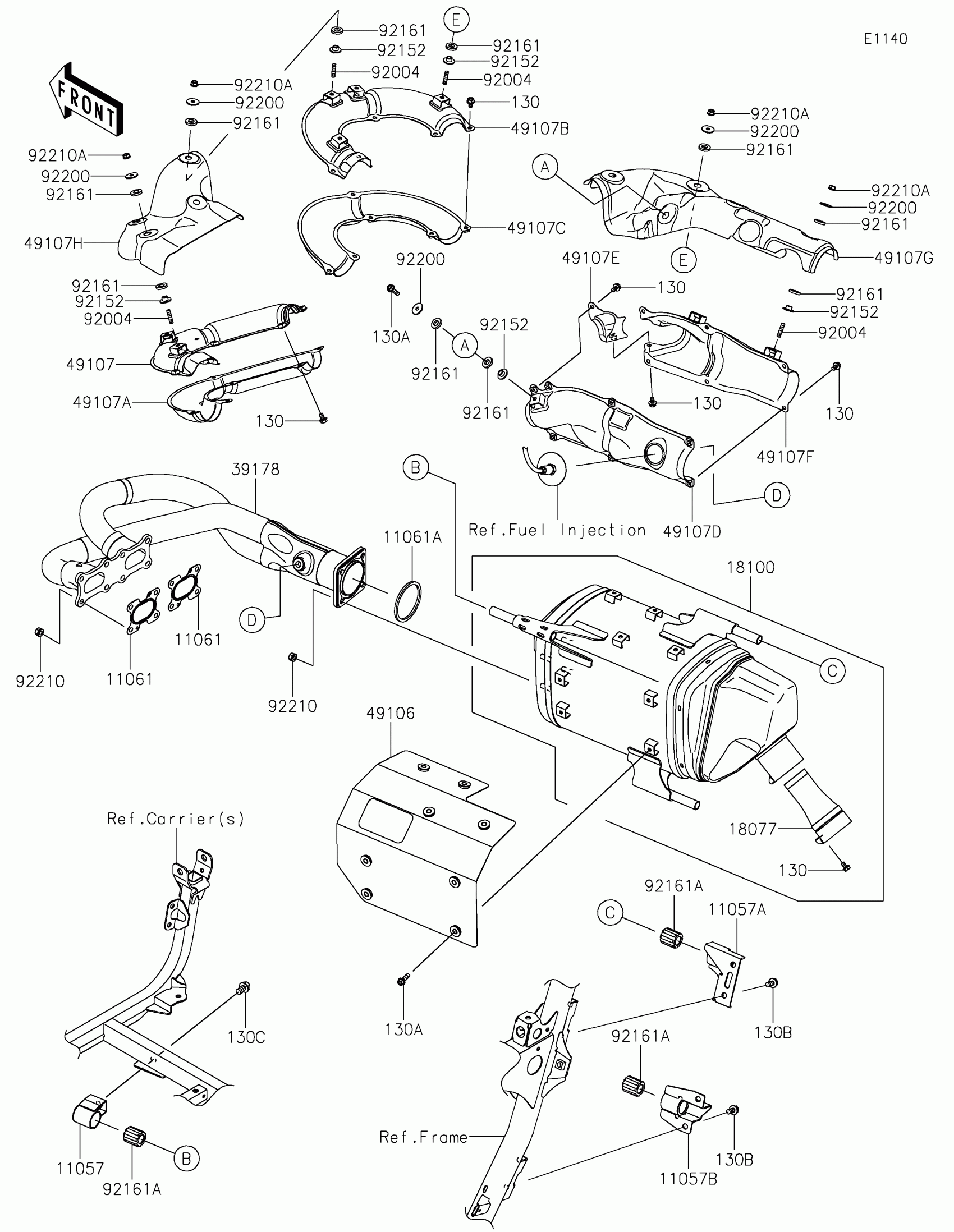

Kawasaki TERYX KRX® 1000 SE Muffler(s) Diagram

#

Description
Price

11057

BRACKET,FRM-MUFFLER/FR

11057-3721

$24.23

11057A

BRACKET,FRM-MUFFLER/RR/UPP

11057-3722

$30.22

11057B

BRACKET,FRM-MUFFLER/RR/LWR

11057-3723

$28.44

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1310

$11.06

11061A

GASKET,EXHAUST PIPE-MUFFLER

11061-1311

$12.12

18077

ARRESTER-SPARK

18077-0045

$97.72

18100

BODY-ASSY-MUFFLER

18100-0613

$756.02

39178

MANIFOLD-COMP-EXHAUST

39178-0389

$1,140.84

49106

COVER-MUFFLER

49106-0847

$196.88

49107

COVER-EXHAUST PIPE,#1,UPP

49107-0814

$73.75

49107A

COVER-EXHAUST PIPE,#1,LWR

49107-0815

$32.47

49107B

COVER-EXHAUST PIPE,#2,UPP

49107-0816

$102.26

49107C

COVER-EXHAUST PIPE,#2,LWR

49107-0817

$39.10

49107D

COVER-EXHAUST PIPE,LH

49107-0819

$68.01

49107E

COVER-EXHAUST PIPE

49107-0820

$16.34

49107F

COVER-EXHAUST PIPE,RH

49107-0825

$105.56

49107G

COVER-EXHAUST PIPE

49107-0829

$263.82

49107H

COVER-EXHAUST PIPE

49107-0836

$221.53

92004

STUD,6X18

92004-0799

$1.36

92152

COLLAR

92152-0423

$3.90

92161

DAMPER

92161-0319

$3.90

92161A

DAMPER

92161-2274

$4.10

92200

WASHER,6.5X22X1.6

92200-2324

$2.32

92210

NUT,8MM

92210-1242

$2.41

92210A

NUT,6MM

92210-1787

$1.11

130

BOLT-FLANGED,6X10

130BD0610

$3.67

130A

BOLT-FLANGED,6X20

130BD0620

$3.72

130B

BOLT-FLANGED,8X16

130CA0816

$2.49

130C

BOLT-FLANGED,10X16

130CA1016

$3.35
