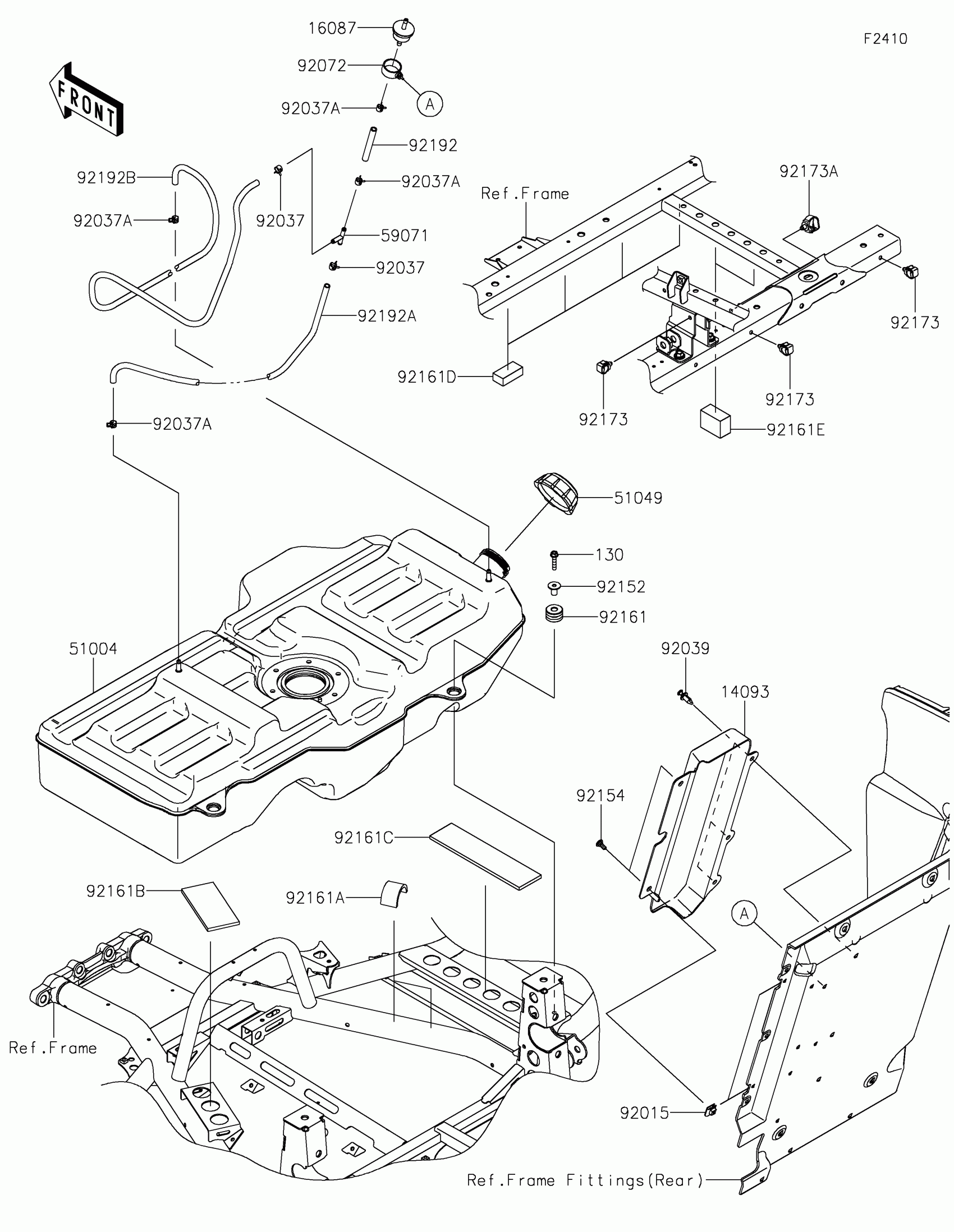

Kawasaki TERYX KRX® 1000 SE Fuel Tank(CA) Diagram

Description

Price

14093

COVER,BREATHER PIPE

14093-0987

$12.16

16087

VALVE-CHECK

16087-0011

$37.98

51004

TANK-FUEL

51004-0031

$436.88

51049

CAP-TANK,FUEL

51049-0718

$64.67

59071

JOINT

59071-3705

$4.91

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-2113

$1.03

92039

RIVET

92039-0776

$1.19

92072

BAND

92072-0852

$5.00

92152

COLLAR,6.8X10X18.1

92152-1867

$5.23

92154

BOLT

92154-3957

$2.32

92161

DAMPER,TANK

92161-2178

$1.17

92161A

DAMPER,TANK FRAME PIPE

92161-2179

$1.73

92161B

DAMPER,TANK LH LOWER

92161-2180

$4.09

92161C

DAMPER,TANK LOWER

92161-2253

$10.97

92161D

DAMPER,TANK & SEAT FRAME

92161-2275

$3.41

92161E

DAMPER,TANK & SEAT FRAME

92161-2288

$5.94

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92192

TUBE,5X10.4X80

92192-1149

$20.74

92192A

TUBE,5X10X1020

92192-2239

$69.03

92192B

TUBE,5X10X1380

92192-2352

$87.83

130

BOLT-FLANGED,6X30

130BA0630

$1.46
