Fuel Evaporative System(CA)

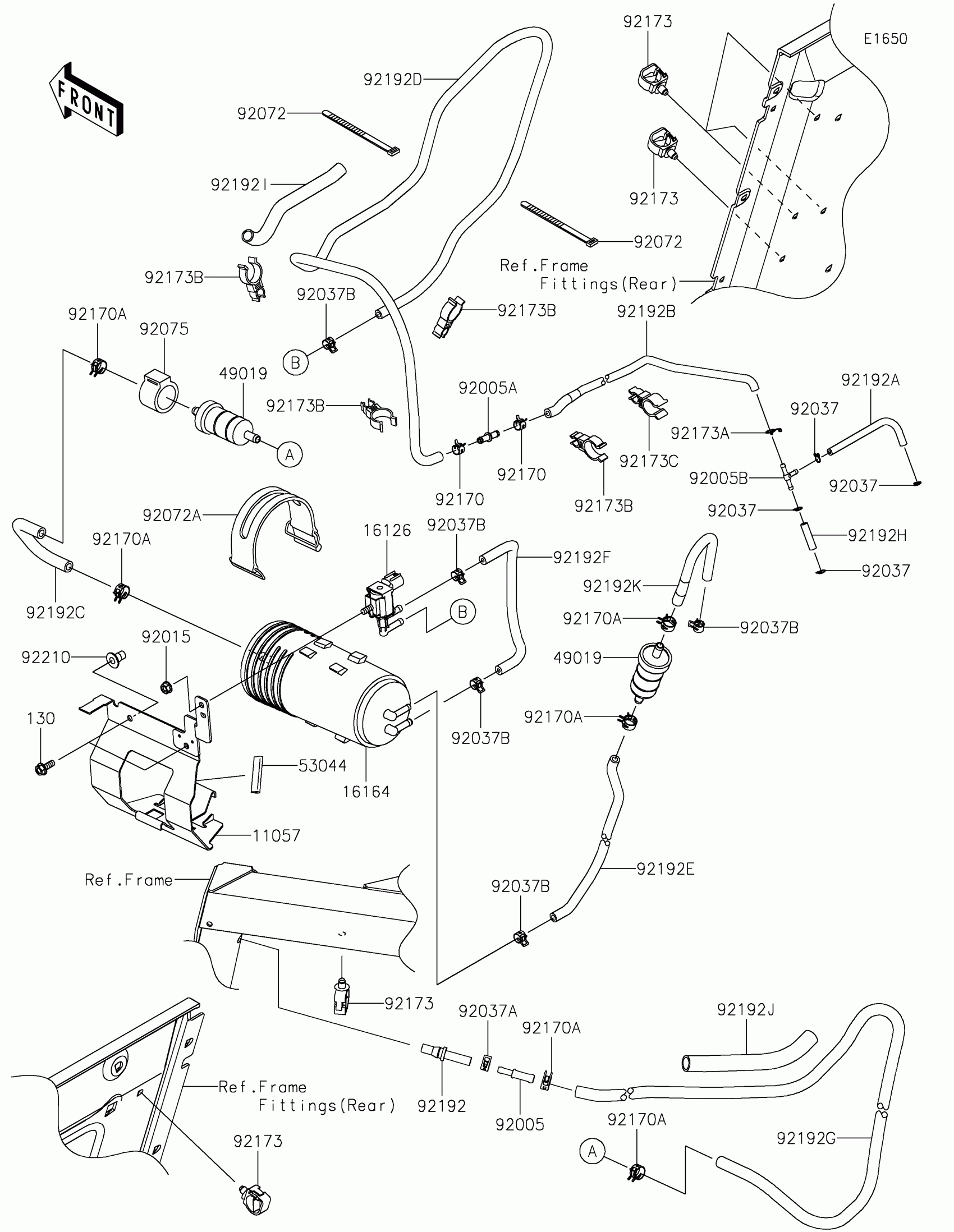

Kawasaki TERYX KRX® 1000 SE Fuel Evaporative System(CA) Diagram
#
11057
BRACKET,CANISTER
11057-2246
$28.03
16126
VALVE,SOLENOID
16126-0705
$106.99
16164
CANISTER
16164-0016
$205.69
49019
FILTER-FUEL
49019-0032
$22.97
53044
TRIM,L=40
53044-1320
$2.34
92005
FITTING
92005-0720
$3.62
92005A
FITTING
92005-0721
$9.09
92005B
FITTING
92005-1380
$16.65
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92037
CLAMP,TUBE
92037-1124
$6.11
92037A
CLAMP,TUBE
92037-1461
$3.88
92037B
CLAMP
92037-2113
$1.03
92072
BAND,L=149
92072-031
$5.00
92072A
BAND,L=168
92072-1306
$13.75
92075
DAMPER,FUEL FILTER
92075-1853
$12.35
92170
CLAMP
92170-1493
$5.00
92170A
CLAMP
92170-2082
$0.84
92173
CLAMP
92173-0861
$3.02
92173A
CLAMP
92173-1568
$4.96
92173B
CLAMP,CLIP
92173-2000
$4.85
92173C
CLAMP
92173-2287
$4.85
92192
TUBE,FRAME PIPE-CHECK VALVE
92192-0068
$10.90
92192A
TUBE,3.5X7.5X125
92192-1497
$24.31
92192B
TUBE,L=450
92192-1612
$54.33
92192C
TUBE,FILTER-CANISTER
92192-1665
$3.87
92192D
TUBE,PURGE VALVE-THROTTLE BODY
92192-1951
$112.07
92192E
TUBE,CANISTER-CHECK VALVE
92192-1952
$37.90
92192F
TUBE,CANISTER-PURGE VALVE
92192-1953
$23.76
92192G
TUBE,AIR BREATHER
92192-1954
$32.36
92192H
TUBE,THROTTLE BODY
92192-1992
$7.72
92192I
TUBE,CONVOLUTED,10.7X14.1X170
92192-2293
$11.32
92192J
TUBE,CONVOLUTED,13.2X17.5X160
92192-2294
$11.32
92192K
TUBE,CHECK VALVE-FILTER
92192-2295
$27.88
92210
NUT,LARGE FLANGE,6MM,L=16.5
92210-1623
$2.95
130
BOLT-FLANGED,6X16
130BA0616
$1.20
