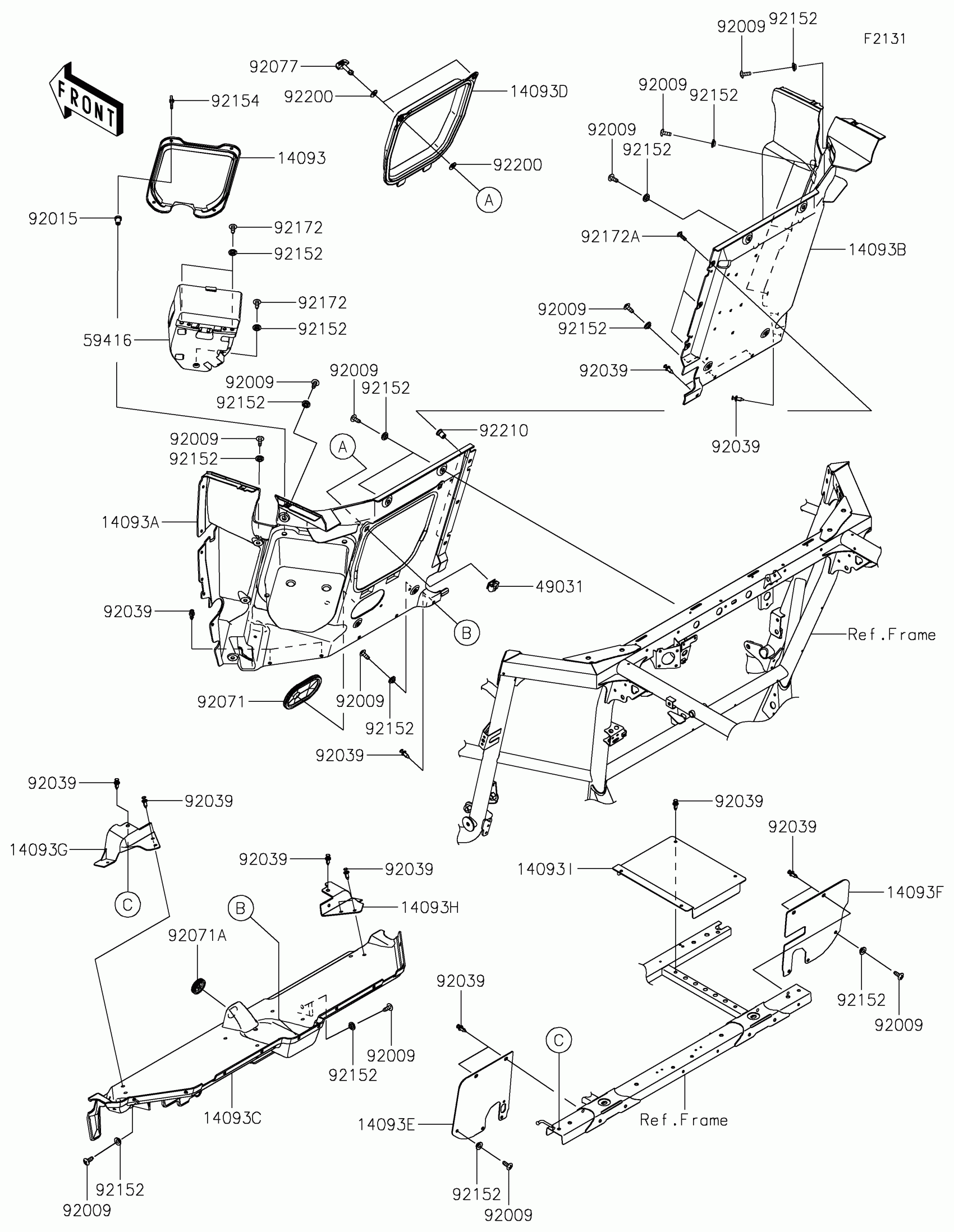

Kawasaki TERYX KRX® 1000 SE Frame Fittings(Rear) Diagram

Description

Price

14093

COVER,ELECTRIC-CASE

14093-0821

$10.76

14093A

COVER,SEAT-BACK-PANEL,LH

14093-0840

$123.82

14093B

COVER,SEAT-BACK-PANEL,RH

14093-0841

$123.82

14093C

COVER,SEAT-BACK-PANEL,LWR

14093-0842

$181.52

14093D

COVER,A/C-BOX

14093-0843

$13.53

14093E

COVER,BATTERY

14093-0853

$6.14

14093F

COVER,FUEL-TANK

14093-0854

$6.30

14093G

COVER,SEAT-BACK,LH

14093-0992

$3.76

14093H

COVER,SEAT-BACK,RH

14093-0993

$3.85

14093I

COVER,SEAT,LWR

14093-1006

$8.81

49031

LATCH,A/C-BOX

49031-0022

$1.73

59416

CASE-ELECTRIC

59416-0028

$14.02

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0789

$3.51

92071A

GROMMET

92071-0791

$1.52

92077

KNOB

92077-0030

$3.04

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,WING,6X25

92154-4116

$2.32

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,5MM

92172-0292

$3.39

92200

WASHER

92200-0503

$2.55

92210

NUT,WELL,5MM

92210-0370

$5.65
